CRANKSHAFT

SFV650 GLADIUS 2014 (L4) USA (E03)

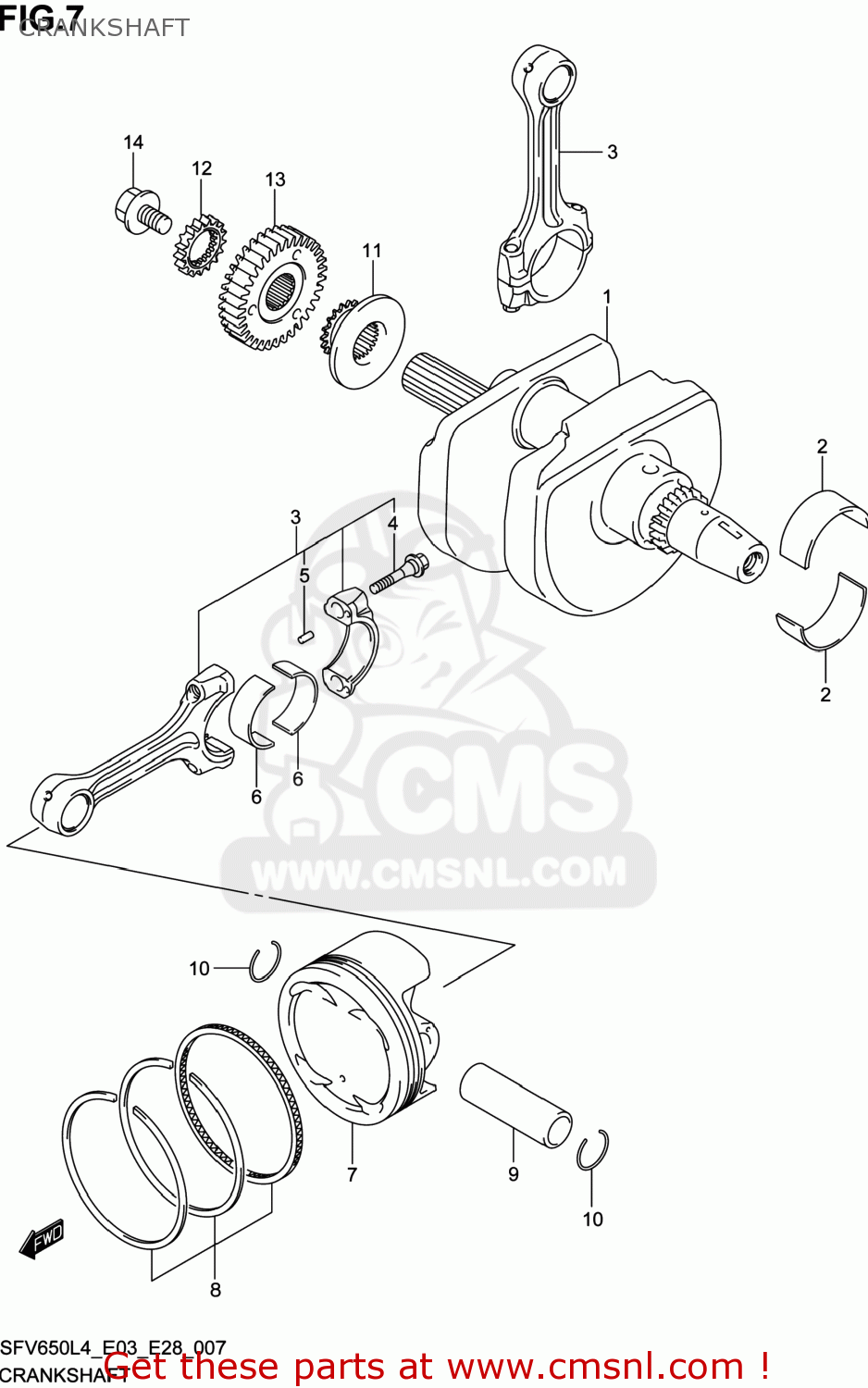

Crankshaft diagram SFV650 GLADIUS 2014 (L4) USA (E03)

CRANKSHAFT SFV650 GLADIUS 2014 (L4) USA (E03)

CRANKSHAFT SFV650 GLADIUS 2014 (L4) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1222044H10
ref: 1

CRANKSHAFT

€ 1,397.00

2-1

1222944H000A0
ref: 2-1

BEARING,CRANKSHAFT

€ 14.50

2-2

1222944H000B0
ref: 2-2

BEARING,CRANKSHAFT

€ 14.50

2-3

1222944H000C0
ref: 2-3

BEARING,CRANKSHAFT

€ 14.50

3

1216017G10
ref: 3

CONNECTING ROD ASSY

€ 146.50

4

1216324F10
ref: 4

BOLT,CONNECTING ROD

€ 13.00

5

0422104089
ref: 5

PIN

€ 1.50

6-1

1216446E010A0
ref: 6-1

BEARING,CRANK PIN

€ 17.50

6-2

1216446E010B0
ref: 6-2

BEARING,CRANK PIN

€ 16.50

6-3

1216446E010C0
ref: 6-3

BEARING,CRANK PIN

€ 17.50

6-4

1216446E010D0
ref: 6-4

BEARING,CRANK PIN

€ 16.50

7

1211144H000F0
ref: 7

PISTON

€ 85.50

8

1214015H00
ref: 8

RING SET,PISTON

€ 82.00

9

1215105A00
ref: 9

PIN,PISTON

€ 12.00

10

0938120004
ref: 10

CIRCLIP,PISTON PIN

€ 2.00

11

1273119F00
ref: 11

SPROCKET,CAM CHAIN DRIVE

€ 45.00

11

1273119F00
ref: 11

SPROCKET,CAM CHAIN DRIVE

€ 45.00

12

1745117G00
ref: 12

GEAR,WATER PUMP DRIVE

€ 26.00

13

2110044H00
ref: 13

GEAR ASSY,PRIMARY DRIVE

€ 171.50

14

0910310338
ref: 14

BOLT(10X19)

€ 6.00
