REAR MASTER CYLINDER (SFV650L4 E28)

SFV650 GLADIUS 2014 (L4) USA (E03)

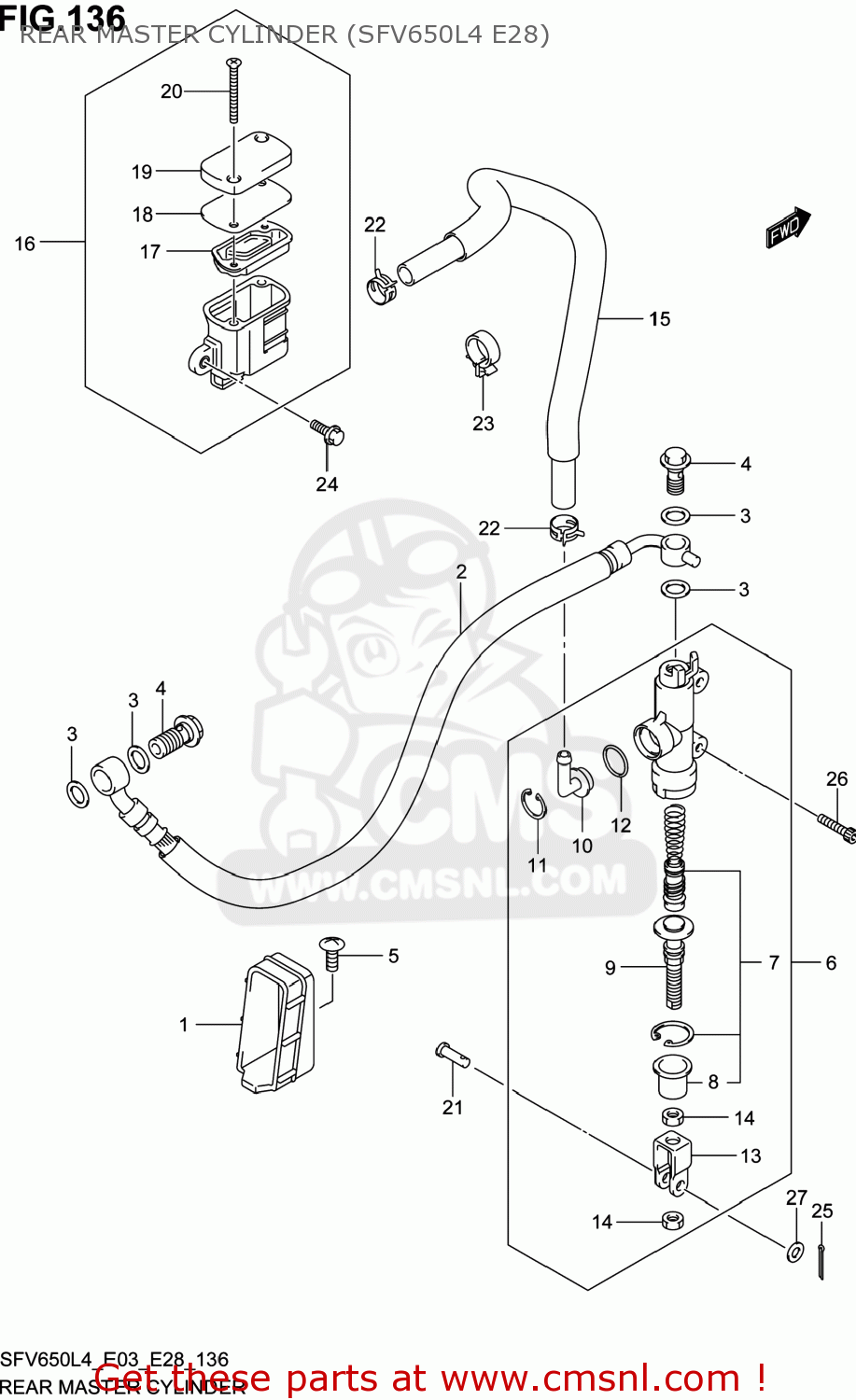

Rear master cylinder (sfv650l4 e28) diagram SFV650 GLADIUS 2014 (L4) USA (E03)

REAR MASTER CYLINDER (SFV650L4 E28) SFV650 GLADIUS 2014 (L4) USA (E03)

REAR MASTER CYLINDER (SFV650L4 E28) SFV650 GLADIUS 2014 (L4) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

6924344H00
ref: 1

GUIDE,RR BRAKE HOSE

€ 5.50

2

6948044H00
ref: 2

HOSE,RR BRAKE

€ 70.00

3

0916110009
ref: 3

WASHER(10X15X1.5)

€ 2.00

4

0936010062
ref: 4

BOLT UNION

€ 5.00

5

021420616A
ref: 5

SCREW

€ 2.50

6

6960044H00
ref: 6

CYLINDER ASSY,RR MASTER

€ 139.50

7

6960034820
ref: 7

PISTON/CUP SET

€ 37.00

8

6969100A00
ref: 8

BOOT

€ 3.50

9

6967048B00
ref: 9

ROD,PUSH

€ 20.50

10

6967200B20
ref: 10

CONNECTOR

€ 5.00

11

6967400B20
ref: 11

CIRCLIP

€ 3.00

12

6968634200
ref: 12

O RING

€ 3.50

13

6969244H00
ref: 13

YOKE

€ 10.50

14

6969305A00
ref: 14

NUT

€ 1.50

15

6973044H00
ref: 15

HOSE,RR RESERVOIR TANK

€ 49.50

16

6974001H10
ref: 16

TANK ASSY,RESERVOIR

€ 21.50

17

6966701H00
ref: 17

DIAPHRAGM

€ 4.50

18

6966801H00
ref: 18

PLATE,DIAPHRAGM

€ 3.50

19

6966901H00
ref: 19

CAP

€ 8.50

20

6968901H00
ref: 20

SCREW

€ 3.00

21

0920006068
ref: 21

PIN(6X18.2)

€ 5.00

22

0940112404
ref: 22

CLIP

€ 2.50

23

0940316412
ref: 23

CLAMP

€ 4.00

24

015470612A
ref: 24

BOLT

€ 2.00

25

041112015A
ref: 25

PIN

€ 1.50

26

0713006257
ref: 26

BOLT

€ 2.50

27

083220106A
ref: 27

WASHER

€ 2.00
