REAR WHEEL (SFV650L4 E03)

SFV650 GLADIUS 2014 (L4) USA (E03)

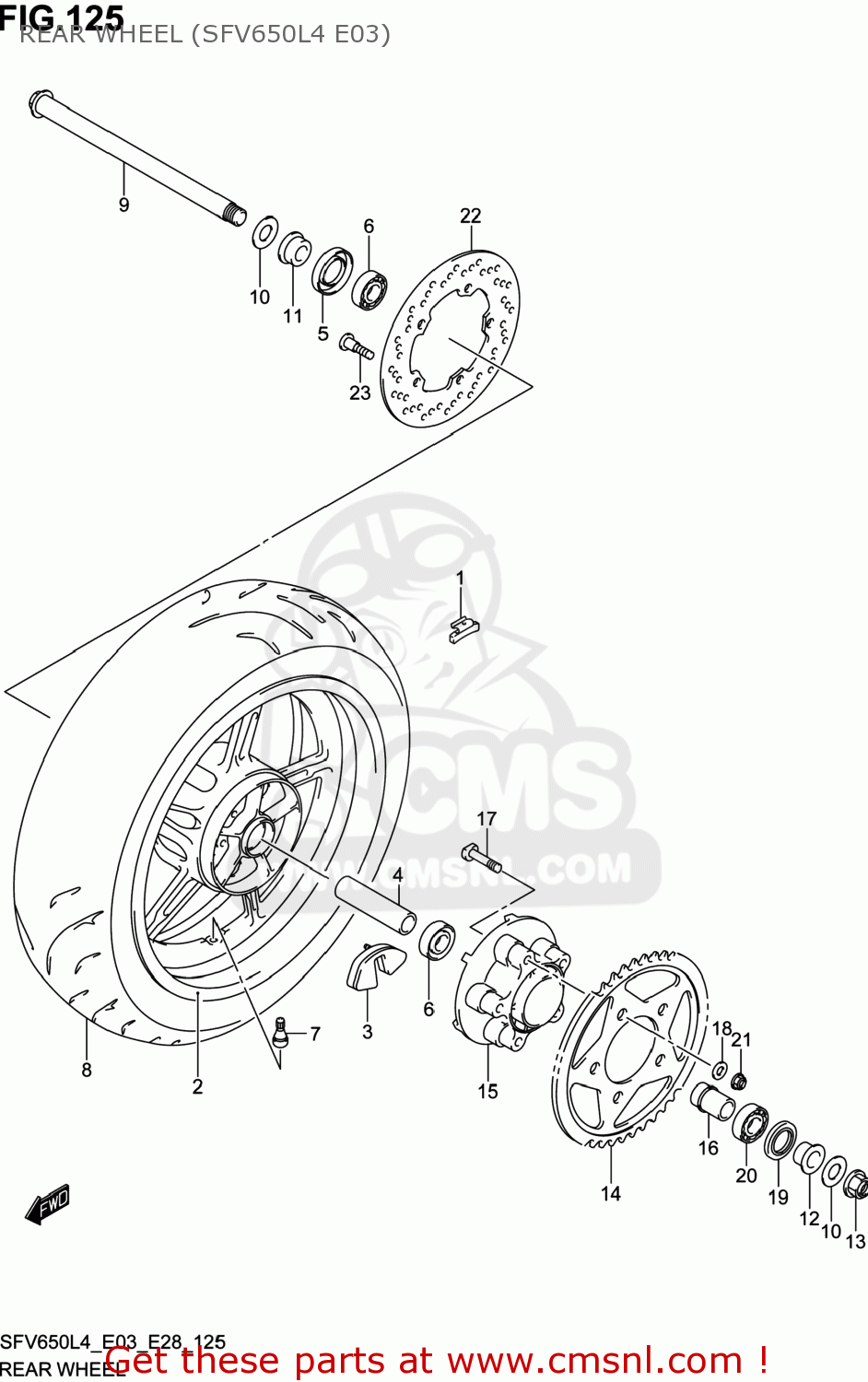

Rear wheel (sfv650l4 e03) diagram SFV650 GLADIUS 2014 (L4) USA (E03)

REAR WHEEL (SFV650L4 E03) SFV650 GLADIUS 2014 (L4) USA (E03)

REAR WHEEL (SFV650L4 E03) SFV650 GLADIUS 2014 (L4) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

5541122H00
ref: 1-1

BALANCER,WHEEL(10G)

€ 4.50

1-2

5541222H00
ref: 1-2

BALANCER,WHEEL(20G)

€ 5.50

1-3

5541322H00
ref: 1-3

BALANCER,WHEEL(30G)

€ 6.00

2-1

6411144H00019
ref: 2-1

WHEEL,RR(17M/CXMT5.00)

€ 679.50

2-1

6411144H00019
ref: 2-1

WHEEL,RR(17M/CXMT5.00)

€ 679.50

2-2

6411144H00YLY
ref: 2-2

WHEEL,RR(17M/CXMT5.00)

€ 651.50

2-2

6411144H00YLY
ref: 2-2

WHEEL,RR(17M/CXMT5.00)

€ 651.50

3

6465127A01
ref: 3

ABSORBER,RR HUB SHOCK

€ 6.00

4

0918020062
ref: 4

SPACER(20.5X28X88)

€ 11.50

5

0928528001
ref: 5

SEAL,OIL(28X47X7)

€ 11.50

6

0812362047
ref: 6

BEARING

€ 17.00

7

4313024A00
ref: 7

VALVE ASSY,WHEEL RIM(TR412)

€ 7.00

8

6511044H00
ref: 8

TIRE SFV650

€ 194.50

9

6471117E10
ref: 9

AXLE,RR

€ 118.50

10

6472344H00
ref: 10

WASHER,RR AXLE

€ 3.00

11

6474122D00
ref: 11

SPACER,RR AXLE,R

€ 9.50

12

6475144H00
ref: 12

SPACER,RR AXLE,L

€ 21.50

13

0915920013
ref: 13

NUT

€ 22.50

14

6451144H20
ref: 14

SPROCKET,RR(46T-520)

€ 51.50

15

6461119F00
ref: 15

DRUM,RR SPROCKET MOUNTING

€ 140.00

16

6473327A00
ref: 16

RETAINER,RR HUB BEARING

€ 18.50

17

0911910043
ref: 17

BOLT(10X47)

€ 4.50

18

0916010039
ref: 18

WASHER(10.5X22X2.3)

€ 2.50

19

0928535001
ref: 19

SEAL,OIL(35X62X8)

€ 9.00

20

0926225073
ref: 20

BEARING(25X62X17)

€ 21.50

21

083193110A
ref: 21

NUT

€ 3.00

22

6921138G00
ref: 22

DISC,RR BRAKE

€ 129.50

23

0910608160
ref: 23

BOLT(8X21)

€ 3.50
