FUEL TANK (SFV650AL4 E28)

SFV650 GLADIUS 2014 (L4) USA (E03)

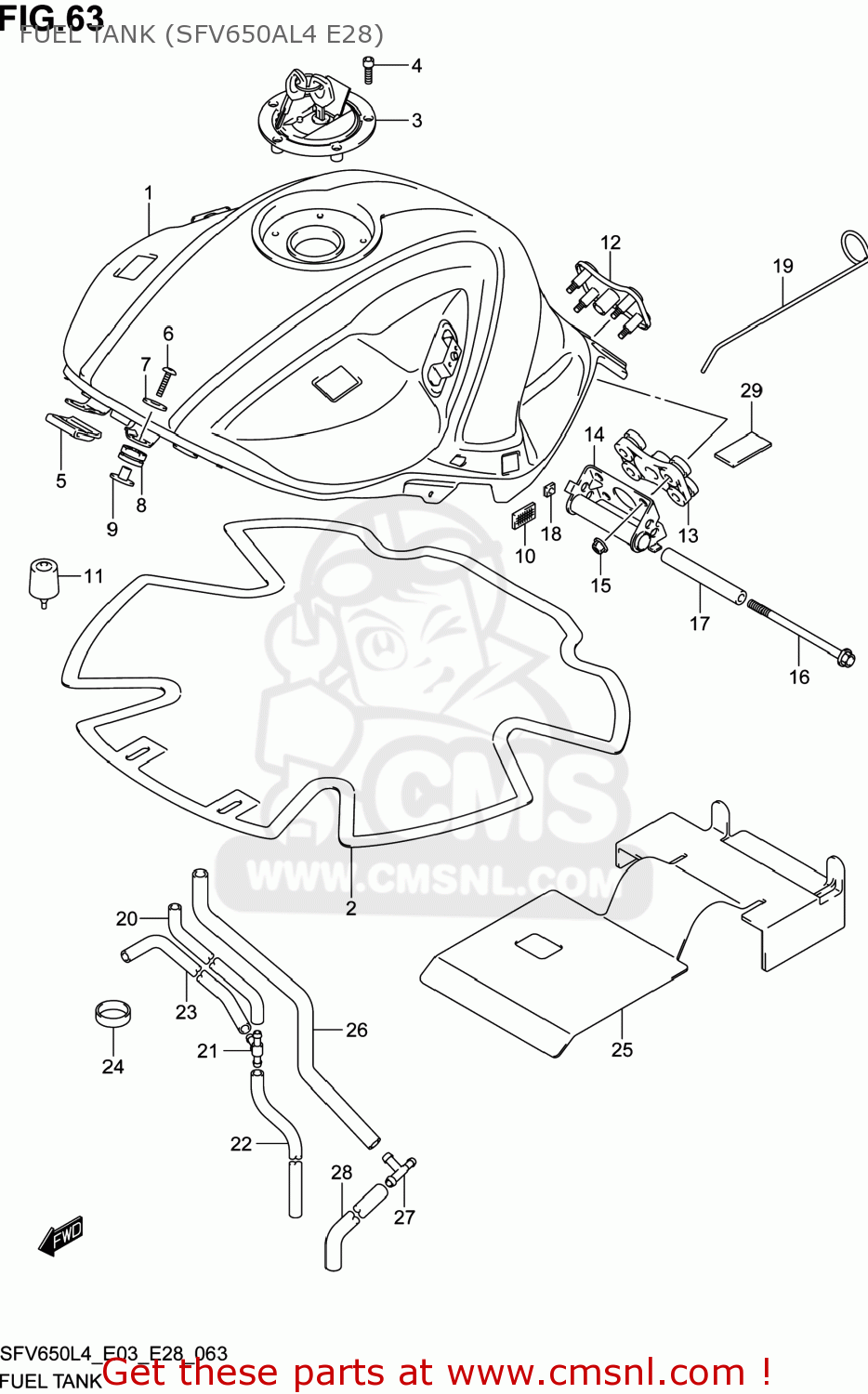

Fuel tank (sfv650al4 e28) diagram SFV650 GLADIUS 2014 (L4) USA (E03)

FUEL TANK (SFV650AL4 E28) SFV650 GLADIUS 2014 (L4) USA (E03)

FUEL TANK (SFV650AL4 E28) SFV650 GLADIUS 2014 (L4) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

4410044H31YVB
ref: 1-1

TANK ASSY,FUEL(BLACK)

€ 747.50

1-2

4410044H31YWW
ref: 1-2

TANK ASSY,FUEL(WHITE)

€ 680.00

2

4419144H00
ref: 2

SHIELD,FUEL TANK HEAT

€ 71.00

3

4420016850
ref: 3

CAP SET,FUEL TANK

€ 155.50

4

0910605017
ref: 4

BOLT(5X20)

€ 3.00

5

4454644H00
ref: 5

RUBBER,FUEL TANK FR

€ 8.50

6

0913906029
ref: 6

SCREW(6X25)

€ 5.00

7

0916006012
ref: 7
09160-06054

WASHER(6,5X22X1.6)

€ 2.00

8

4451116G00
ref: 8

CUSHION,FUEL TANK FR

€ 4.00

9

4451216G00
ref: 9

SPACER,FUEL TANK FR

€ 6.50

10

4791237H00
ref: 10

FASTENER,FRAME COVER

€ 8.00

11

4454229G00
ref: 11

CUSHION,FUEL TANK RR

€ 6.00

12

4457016G00
ref: 12

BRACKET,FUEL TANK RR UP

€ 12.50

13

4454216G00
ref: 13

CUSHION,FUEL TANK RR

€ 11.50

14

4453044H00
ref: 14

BRACKET,FUEL TANK RR

€ 18.00

15

083193106A
ref: 15

NUT

€ 2.50

16

0910306060
ref: 16

BOLT(6X100)

€ 2.50

17

4456135F00
ref: 17

SPACER,FUEL TANK RR

€ 10.50

18

083181106A
ref: 18

NUT

€ 1.50

19

4457416G00
ref: 19

STAY,FUEL TANK

€ 11.50

20

4442444H00
ref: 20

HOSE,FUEL TANK BREATHER NO.1

€ 12.00

21

0936706007
ref: 21

3 WAY

€ 2.50

22

0935250823600
ref: 22
44420-44AR0

HOSE(5X8.2X600)

€ 13.00

23

4442509E00
ref: 23

HOSE,VACUUM

€ 10.00

24

0935212163600
ref: 24

HOSE(12X16X600)

€ 24.50

25

4427144H00
ref: 25

SHEET,HEAT SHIELD RUBBER

€ 46.00

26

4442344H00
ref: 26

HOSE,FUEL TANK WATER DRAIN

€ 10.00

27

0936708005
ref: 27

3 WAY

€ 4.00

28

4442344H10
ref: 28

HOSE,WATER DRAIN

€ 5.50

29

3692008D10
ref: 29

PROTECTOR(30X30X3)

€ 2.00
