THROTTLE BODY (SFV650AL4 E28)

SFV650 GLADIUS 2014 (L4) USA (E03)

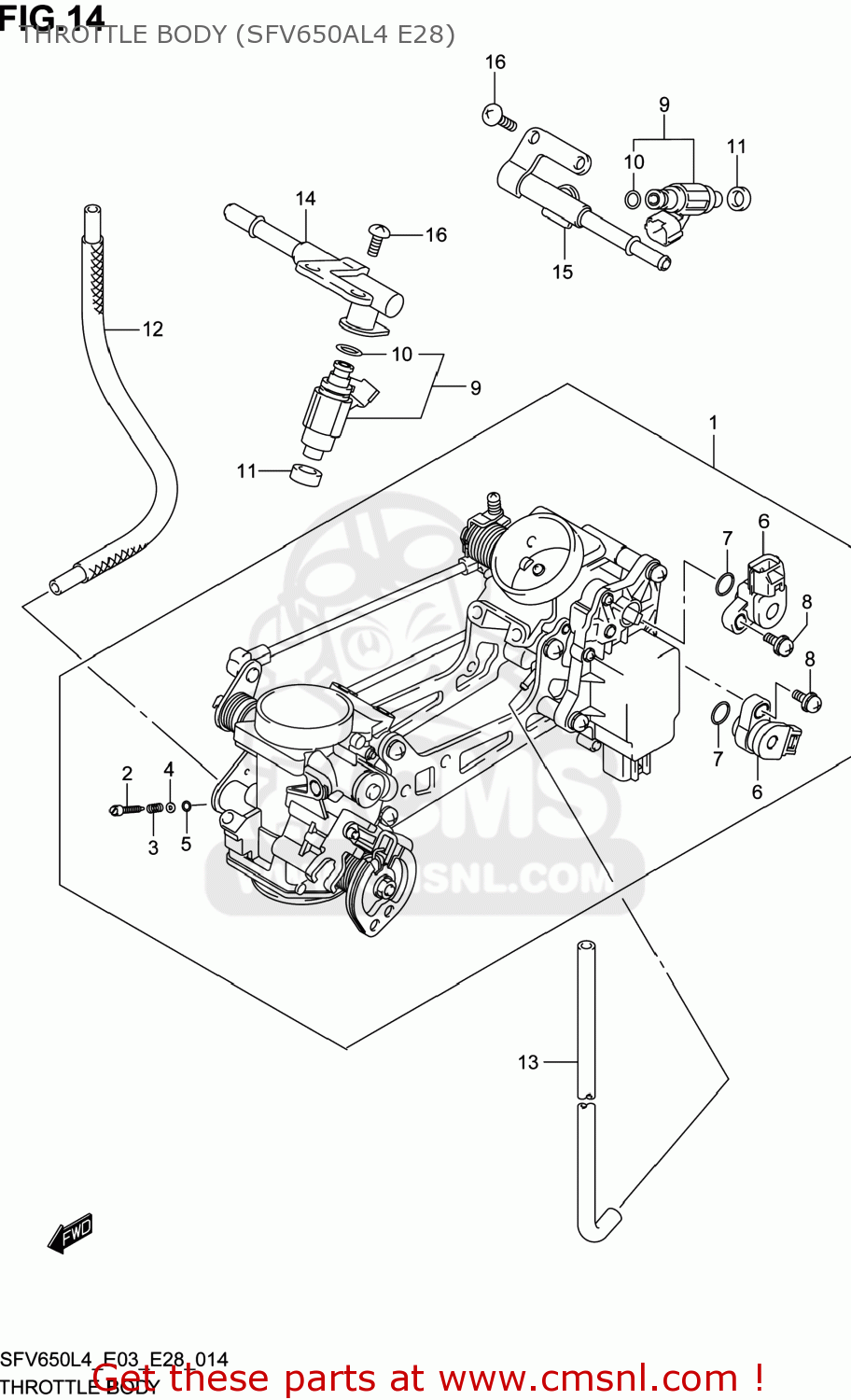

Throttle body (sfv650al4 e28) diagram SFV650 GLADIUS 2014 (L4) USA (E03)

prices are in EUR

ref

part #

description

quantity

1340544H00
ref: 1

BODY ASSY,THROTTLE

€ 977.00

1326933E00
ref: 2

SCREW

€ 8.50

1326848700
ref: 3

SPRING,THROTTLE SCREW

€ 3.50

1360647A00
ref: 4

WASHER

€ 2.00

1329529900
ref: 5

O RING,PILOT AIR SCREW

€ 4.00

1358027G21
ref: 6

SENSOR

€ 101.50

1357529G00
ref: 7

O RING

€ 3.00

1360502F00
ref: 8

SCREW

€ 3.00

1571044H00
ref: 9

INJECTOR ASSY

€ 275.00

1571758B00
ref: 10

O-RING

€ 7.00

1572229G00
ref: 11

SEAL

€ 9.50

1368344H00
ref: 12

HOSE

€ 29.00

1368344H10
ref: 13

HOSE

€ 13.00

1572044H00
ref: 14

DELIVERY PIPE

€ 151.50

1573044H00
ref: 15

DELIVERY PIPE

€ 151.50

1360206128
ref: 16

SCREW

€ 2.50
