ELECTRICAL (SFV650L4 E28)

SFV650 GLADIUS 2014 (L4) USA (E03)

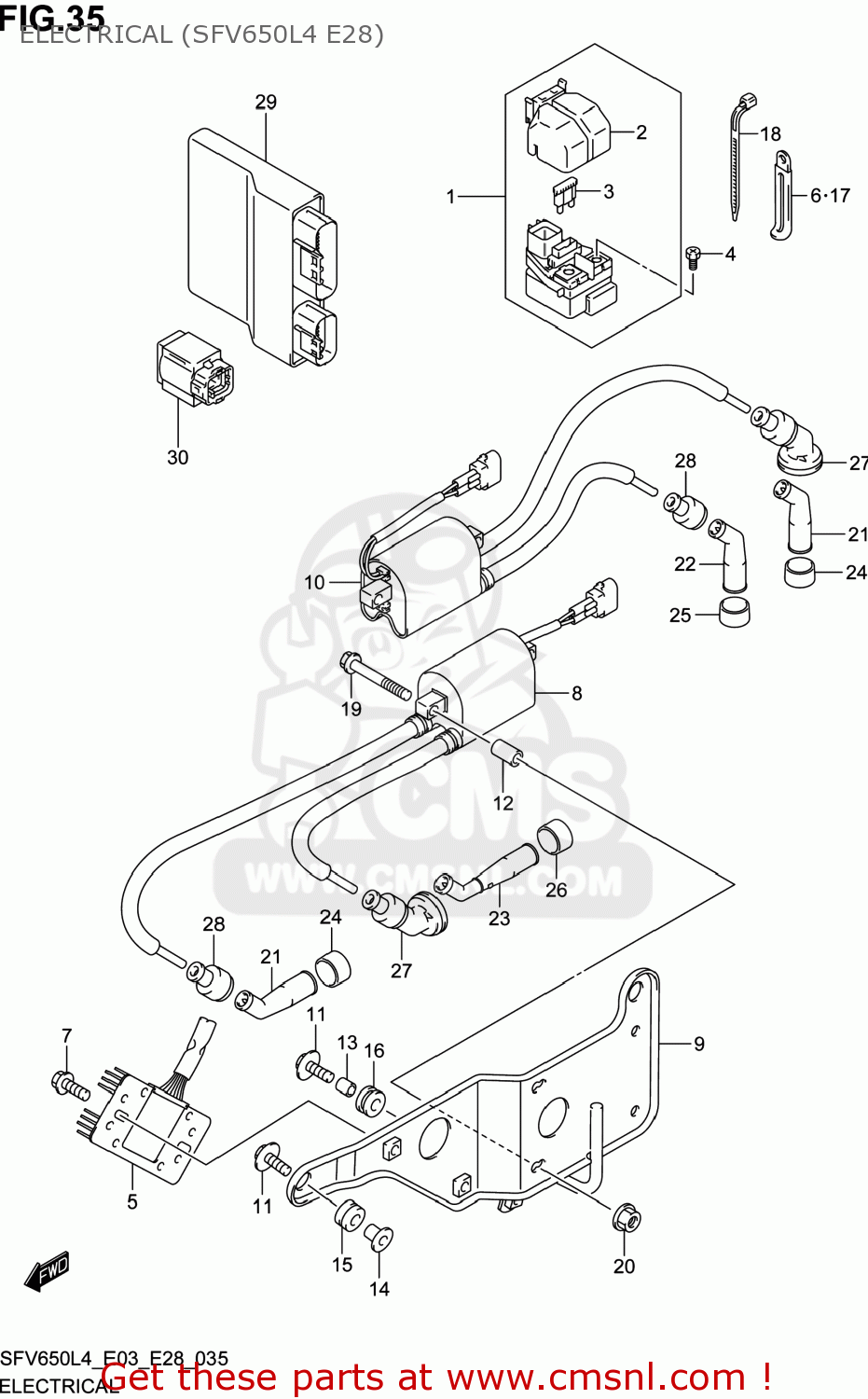

Electrical (sfv650l4 e28) diagram SFV650 GLADIUS 2014 (L4) USA (E03)

ELECTRICAL (SFV650L4 E28) SFV650 GLADIUS 2014 (L4) USA (E03)
ELECTRICAL (SFV650L4 E28) SFV650 GLADIUS 2014 (L4) USA (E03)
ELECTRICAL (SFV650L4 E28) SFV650 GLADIUS 2014 (L4) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
3180041G00
ref: 1
31800-41G10
RELAY ASSY,STARTING MOTOR
3180041G00
€ 103.00
2
3186138G00
ref: 2
COVER
3186138G00
€ 3.50
3
0948130501
ref: 3
FUSE(30A)
0948130501
€ 0.50
4
0912806013
ref: 4
SCREW(6X8)
0912806013
€ 1.50
5
3280047H00
ref: 5
RECTIFIER ASSY
3280047H00
€ 268.50
6
0940406429
ref: 6
CLAMP(L:45)
€ 2.50
7
021620616A
ref: 7
02162-0616B
SCREW
€ 1.50
8
3341044H00
ref: 8
COIL ASSY,IGNITION FR
€ 96.00
9
3341444H01
ref: 9
BRACKET,IGNITION COIL RR
€ 30.00
10
3342044H00
ref: 10
COIL ASSY,IGNITION RR
3342044H00
€ 122.50
11
0911606182
ref: 11
BOLT(6X20)
0911606182
€ 3.00
12
0918006195
ref: 12
SPACER(6.4X10X18)
0918006195
€ 3.50
13
0918006263
ref: 13
SPACER(6.5X9X9)
0918006263
€ 2.00
14
0918006331
ref: 14
SPACER(6.2X8.4X10.9)
0918006331
€ 2.50
15
0932008501
ref: 15
CUSHION
0932008501
€ 3.00
16
0932009016
ref: 16
CUSHION
0932009016
€ 2.50
17
0940406433
ref: 17
CLAMP(L:80)
0940406433
€ 3.00
18
0940718402
ref: 18
CLAMP(L:165)
0940718402
€ 2.50
19
015470640A
ref: 19
BOLT
015470640A
€ 2.50
20
083161006A
ref: 20
NUT
083161006A
€ 2.50
21
3351017G00
ref: 21
CAP ASSY,SPARK PLUG
3351017G00
€ 28.50
22
3351017G00
ref: 22
CAP ASSY,SPARK PLUG
3351017G00
€ 28.50
23
3351020E00
ref: 23
CAP ASSY,SPARK PLUG
3351020E00
€ 22.50
24
3354123E10
ref: 24
SEAL,SPARK PLUG
3354123E10
€ 5.00
25
3354123E10
ref: 25
SEAL,SPARK PLUG
3354123E10
€ 5.00
26
3354147D00
ref: 26
SEAL,SPARK PLUG
3354147D00
€ 7.00
27
3354217G01
ref: 27
SEAL,HIGH TENSION CORD CTR
3354217G01
€ 5.50
28
3354238B00
ref: 28
SEAL,HIGH TENSION CORD
3354238B00
€ 4.50
29
3292044HB0
ref: 29
CONTROL UNIT,FI
€ 882.00
30
3396006G10
ref: 30
SENSOR ASSY,FUEL CUT
3396006G10
€ 75.00
