WIRING HARNESS (SFV650L4 E03)

SFV650 GLADIUS 2014 (L4) USA (E03)

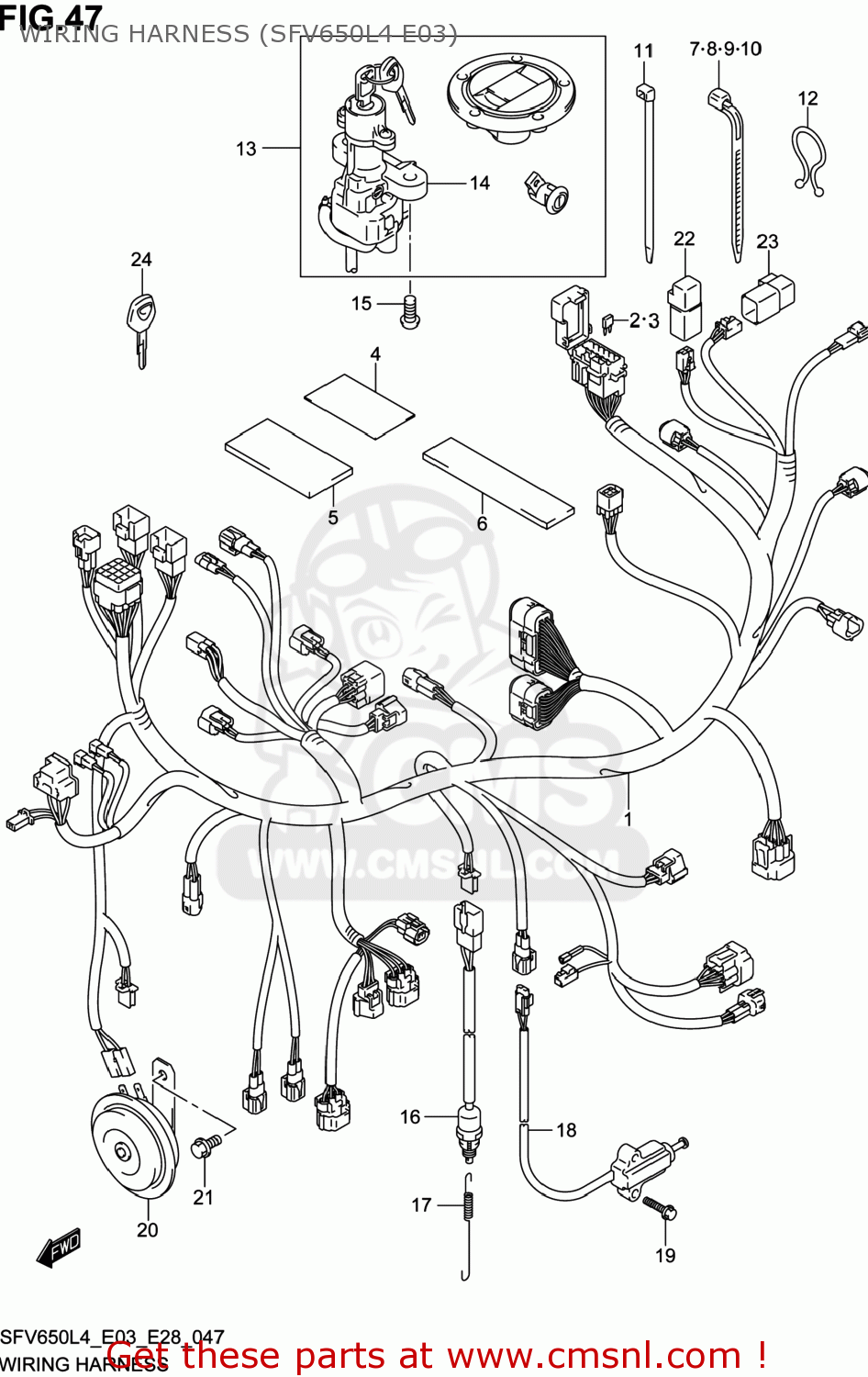

Wiring harness (sfv650l4 e03) diagram SFV650 GLADIUS 2014 (L4) USA (E03)

WIRING HARNESS (SFV650L4 E03) SFV650 GLADIUS 2014 (L4) USA (E03)

WIRING HARNESS (SFV650L4 E03) SFV650 GLADIUS 2014 (L4) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3661044HD0
ref: 1

HARNESS,WIRING

€ 590.00

2

0948110501
ref: 2

FUSE(10A)

€ 3.00

3

0948115501
ref: 3

FUSE(15A)

€ 1.00

4

3661116G00
ref: 4

TAPE,WIRING HARNESS(28X50X0.13

€ 2.00

5

3692008D00
ref: 5

PROTECTOR(30X60X3)

€ 2.00

6

9447422D00
ref: 6

PROTECTOR

€ 4.00

7

0940711401
ref: 7

CLAMP(L:95)

€ 2.50

8

0940714403
ref: 8

CLAMP(L:125)

€ 2.50

9

0940718402
ref: 9

CLAMP(L:165)

€ 2.50

10

0940719401
ref: 10

CLAMP(L:190)

€ 2.00

11

0940714407
ref: 11

CLAMP(L:145)

€ 4.00

12

0940800012
ref: 12

CLIP(ID:11.5)

€ 2.00

13

3700017850
ref: 13

LOCK SET

€ 268.50

14

3710016G40
ref: 14

LOCK ASSY,STEERING

€ 123.00

15

0913908016
ref: 15

BOLT(8X20)

€ 3.50

16

3774044H01
ref: 16

SWITCH ASSY,STOP LAMP

€ 15.00

17

0944306016
ref: 17

SPRING

€ 2.50

18

3784025D00
ref: 18

SWITCH ASSY,SIDE STAND

€ 63.50

19

015470620A
ref: 19

BOLT

€ 2.50

20

3850016G01
ref: 20

HORN ASSY

€ 58.50

21

015500812A
ref: 21

BOLT

€ 2.50

22

3874024X50
ref: 22

RELAY ASSY

€ 37.50

23

3874024X50
ref: 23

RELAY ASSY

€ 37.50

24

3714633E00
ref: 24

KEY,BLANK

€ 13.00
