WIRING HARNESS (SFV650AL4 E33)

SFV650 GLADIUS 2014 (L4) USA (E03)

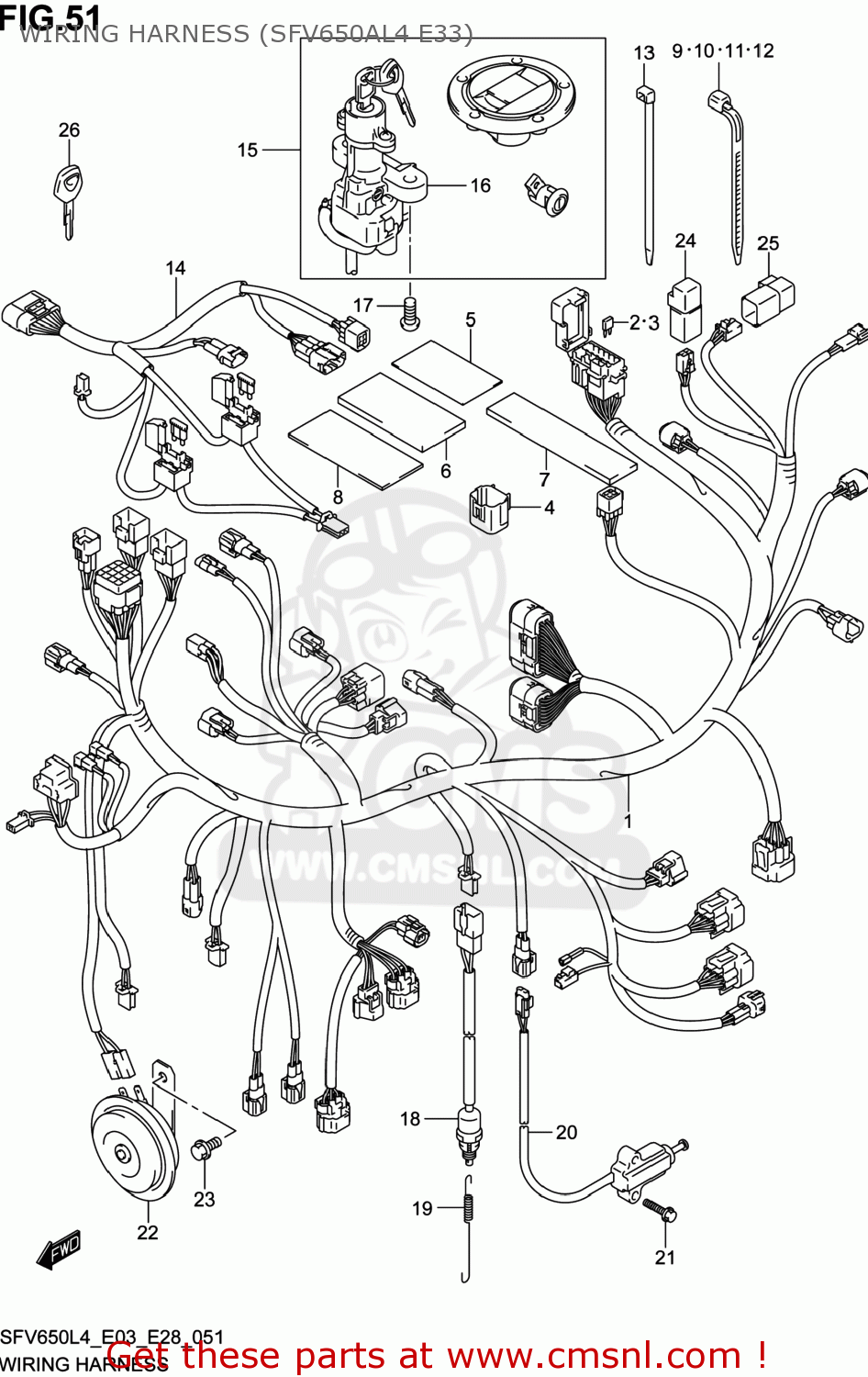

Wiring harness (sfv650al4 e33) diagram SFV650 GLADIUS 2014 (L4) USA (E03)

WIRING HARNESS (SFV650AL4 E33) SFV650 GLADIUS 2014 (L4) USA (E03)
WIRING HARNESS (SFV650AL4 E33) SFV650 GLADIUS 2014 (L4) USA (E03)
WIRING HARNESS (SFV650AL4 E33) SFV650 GLADIUS 2014 (L4) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
3661044HH0
ref: 1
HARNESS,WIRING
€ 0.00
2
0948110501
ref: 2
FUSE(10A)
0948110501
€ 3.00
3
0948115501
ref: 3
FUSE(15A)
0948115501
€ 1.00
4
3665406J00
ref: 4
CAP,TS
3665406J00
€ 8.50
5
3661116G00
ref: 5
TAPE,WIRING HARNESS(28X50X0.13
3661116G00
€ 2.00
6
3692008D00
ref: 6
PROTECTOR(30X60X3)
€ 2.00
7
9447422D00
ref: 7
PROTECTOR
9447422D00
€ 4.00
8
3365226E00
ref: 8
PROTECTOR(20X90)X1.0
3365226E00
€ 3.00
9
0940711401
ref: 9
CLAMP(L:95)
0940711401
€ 2.50
10
0940714403
ref: 10
CLAMP(L:125)
0940714403
€ 2.50
11
0940718402
ref: 11
CLAMP(L:165)
0940718402
€ 2.50
12
0940719401
ref: 12
CLAMP(L:190)
€ 2.00
13
0940714407
ref: 13
CLAMP(L:145)
0940714407
€ 4.00
14
3685944H00
ref: 14
WIRE,ABS LEAD
€ 204.50
15
3700017860
ref: 15
LOCK SET
€ 0.00
16
3710016G40
ref: 16
LOCK ASSY,STEERING
€ 123.00
17
0913908016
ref: 17
BOLT(8X20)
0913908016
€ 3.50
18
3774044H01
ref: 18
SWITCH ASSY,STOP LAMP
€ 15.00
19
0944306016
ref: 19
SPRING
0944306016
€ 2.50
20
3784025D00
ref: 20
SWITCH ASSY,SIDE STAND
3784025D00
€ 63.50
21
015470620A
ref: 21
BOLT
015470620A
€ 2.50
22
3850016G01
ref: 22
HORN ASSY
€ 58.50
23
015500812A
ref: 23
BOLT
015500812A
€ 2.50
24
3874024X50
ref: 24
RELAY ASSY
3874024X50
€ 37.50
25
3874024X50
ref: 25
RELAY ASSY
3874024X50
€ 37.50
26
3714633E00
ref: 26
KEY,BLANK
3714633E00
€ 13.00
