Buy Suzuki SFV Parts Online


REAR WHEEL (SFV650AL4 E33)

SFV650 GLADIUS 2014 (L4) USA (E03)

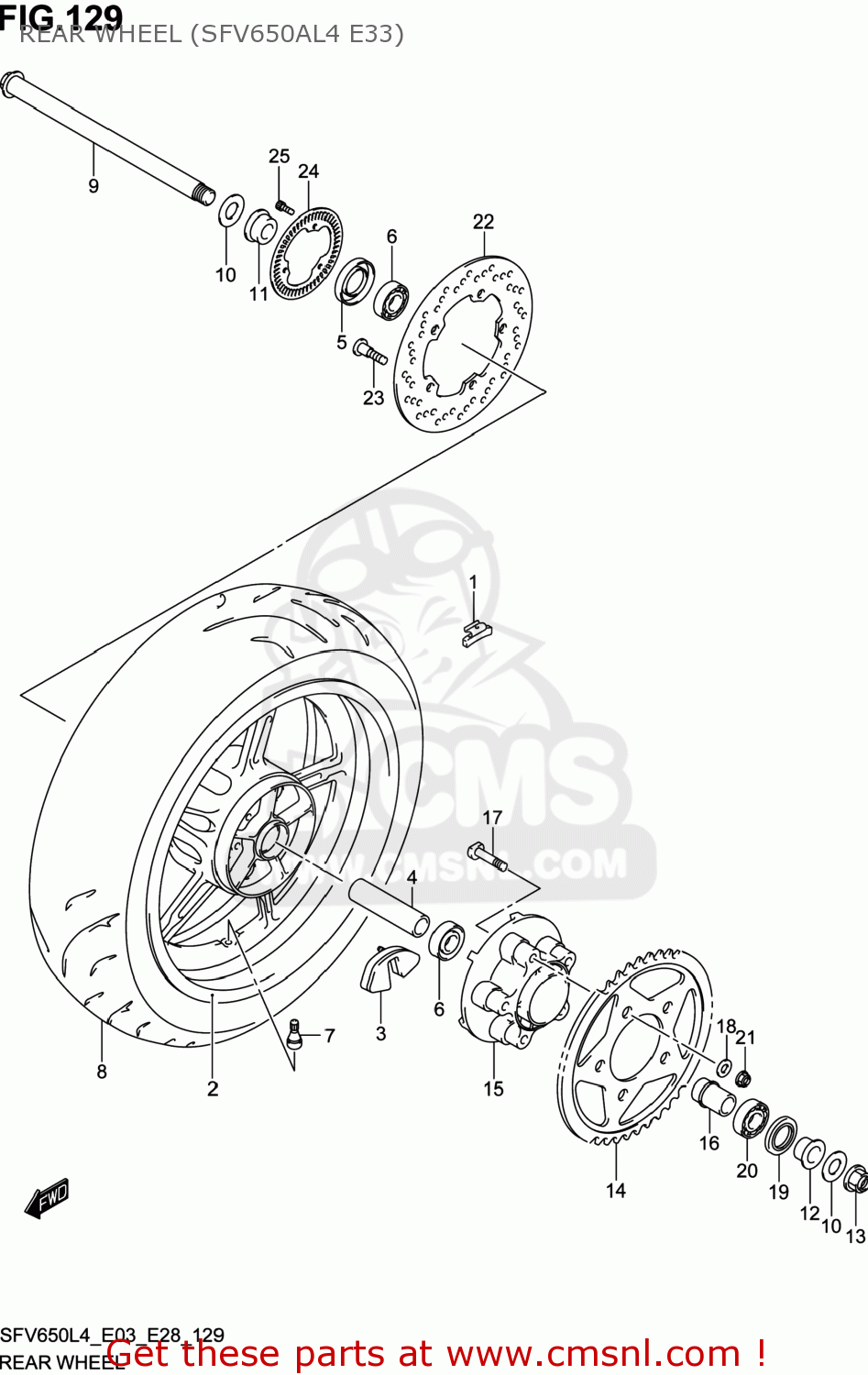

Rear wheel (sfv650al4 e33) diagram SFV650 GLADIUS 2014 (L4) USA (E03)

REAR WHEEL (SFV650AL4 E33) SFV650 GLADIUS 2014 (L4) USA (E03)
REAR WHEEL (SFV650AL4 E33) SFV650 GLADIUS 2014 (L4) USA (E03)
REAR WHEEL (SFV650AL4 E33) SFV650 GLADIUS 2014 (L4) USA (E03)
prices are in EUR
ref
part #
description
quantity
1-1
5541122H00
ref: 1-1
BALANCER,WHEEL(10G)
5541122H00
€ 4.50
1-2
5541222H00
ref: 1-2
BALANCER,WHEEL(20G)
5541222H00
€ 5.50
1-3
5541322H00
ref: 1-3
BALANCER,WHEEL(30G)
5541322H00
€ 6.00
2-1
6411144H10019
ref: 2-1
WHEEL,RR(17M/CXMT5.00)
€ 658.00
2-1
6411144H10019
ref: 2-1
WHEEL,RR(17M/CXMT5.00)
€ 658.00
2-2
6411144H10YLY
ref: 2-2
WHEEL,RR(17M/CXMT5.00)
€ 678.50
2-2
6411144H10YLY
ref: 2-2
WHEEL,RR(17M/CXMT5.00)
€ 678.50
3
6465127A01
ref: 3
ABSORBER,RR HUB SHOCK
6465127A01
€ 6.00
4
0918020062
ref: 4
SPACER(20.5X28X88)
0918020062
€ 11.50
5
0928528001
ref: 5
SEAL,OIL(28X47X7)
0928528001
€ 11.50
6
0812362047
ref: 6
BEARING
0812362047
€ 17.00
7
4313024A00
ref: 7
VALVE ASSY,WHEEL RIM(TR412)
4313024A00
€ 7.00
8
6511044H00
ref: 8
TIRE SFV650
€ 194.50
9
6471117E10
ref: 9
AXLE,RR
6471117E10
€ 118.50
10
6472344H00
ref: 10
WASHER,RR AXLE
6472344H00
€ 3.00
11
6474122D00
ref: 11
SPACER,RR AXLE,R
6474122D00
€ 9.50
12
6475144H00
ref: 12
SPACER,RR AXLE,L
6475144H00
€ 21.50
13
0915920013
ref: 13
NUT
0915920013
€ 22.50
14
6451144H20
ref: 14
SPROCKET,RR(46T-520)
6451144H20
€ 51.50
15
6461119F00
ref: 15
DRUM,RR SPROCKET MOUNTING
€ 140.00
16
6473327A00
ref: 16
RETAINER,RR HUB BEARING
6473327A00
€ 18.50
17
0911910043
ref: 17
BOLT(10X47)
0911910043
€ 4.50
18
0916010039
ref: 18
WASHER(10.5X22X2.3)
0916010039
€ 2.50
19
0928535001
ref: 19
SEAL,OIL(35X62X8)
0928535001
€ 9.00
20
0926225073
ref: 20
BEARING(25X62X17)
0926225073
€ 21.50
21
083193110A
ref: 21
NUT
083193110A
€ 3.00
22
6921138G00
ref: 22
DISC,RR BRAKE
6921138G00
€ 129.50
23
0910608160
ref: 23
BOLT(8X21)
0910608160
€ 3.50
24
5416244H00
ref: 24
RING,SPEED SENSOR FR(50T)
5416244H00
€ 24.00
25
071300512A
ref: 25
BOLT
071300512A
€ 2.50
