FRONT BRAKE HOSE (SFV650L4 E28)

SFV650 GLADIUS 2014 (L4) USA (E03)

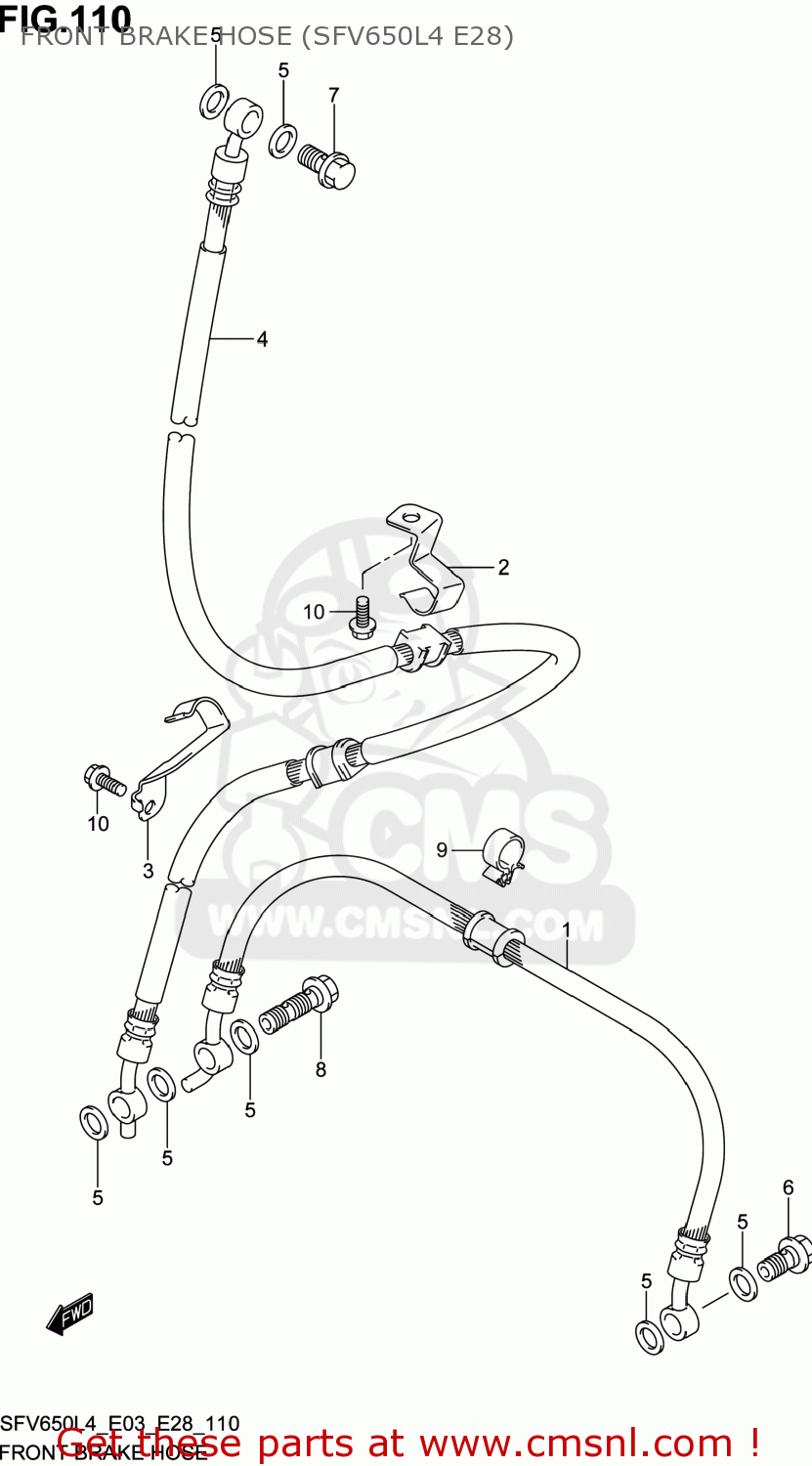

Front brake hose (sfv650l4 e28) diagram SFV650 GLADIUS 2014 (L4) USA (E03)

FRONT BRAKE HOSE (SFV650L4 E28) SFV650 GLADIUS 2014 (L4) USA (E03)

FRONT BRAKE HOSE (SFV650L4 E28) SFV650 GLADIUS 2014 (L4) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

5924044H00
ref: 1

HOSE,FR BRAKE NO.2

€ 102.00

2

5926144H00
ref: 2

CLAMP,FR BRAKE HOSE NO.1

€ 7.00

3

5926344H00
ref: 3

CLAMP,FR BRAKE HOSE NO.2

€ 8.50

4

5948044H00
ref: 4

HOSE,FR BRAKE NO.1

€ 92.50

5

0916110009
ref: 5

WASHER(10X15X1.5)

€ 2.00

6

0936010062
ref: 6

BOLT UNION

€ 5.00

7

0936010062
ref: 7

BOLT UNION

€ 5.00

8

0936010064
ref: 8

BOLT UNION

€ 5.00

9

0940316412
ref: 9

CLAMP

€ 4.00

10

015470612A
ref: 10

BOLT

€ 2.00
