FRONT FORK DAMPER (SFV650L4 E28)

SFV650 GLADIUS 2014 (L4) USA (E03)

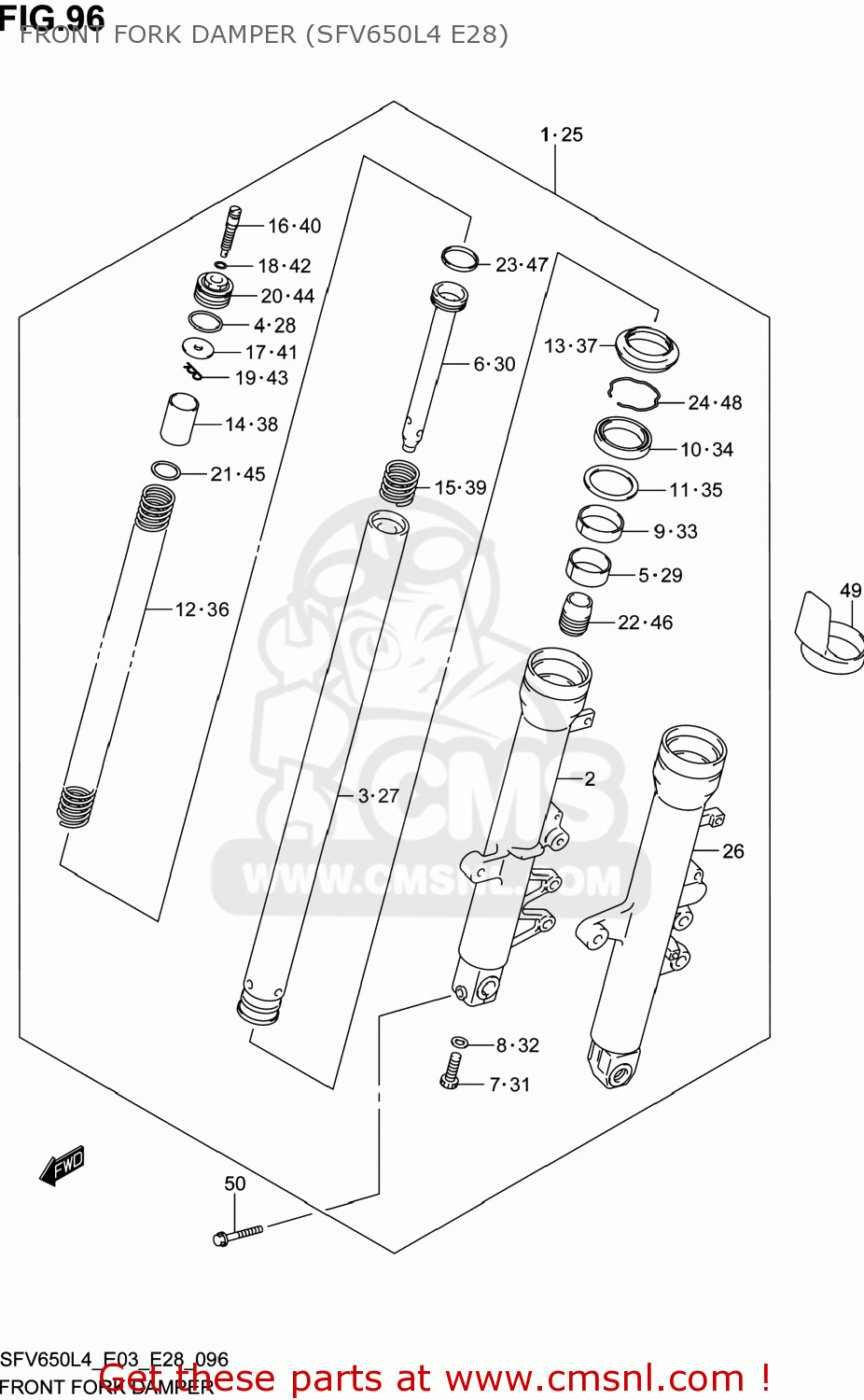

Front fork damper (sfv650l4 e28) diagram SFV650 GLADIUS 2014 (L4) USA (E03)

FRONT FORK DAMPER (SFV650L4 E28) SFV650 GLADIUS 2014 (L4) USA (E03)

FRONT FORK DAMPER (SFV650L4 E28) SFV650 GLADIUS 2014 (L4) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

5110344H20
ref: 1

DAMPER ASSY,FR FORK,R

€ 885.50

2

5113044H20
ref: 2

TUBE,OUTER,R

€ 463.50

3

5111044H00
ref: 3

TUBE,INNER

€ 303.00

4

5111712C00
ref: 4

O RING

€ 3.00

5

5112144H00
ref: 5

BUSH,SLIDE

€ 15.50

6

5114617G20
ref: 6

CYLINDER

€ 57.50

7

5114748130
ref: 7

BOLT(8X27)

€ 3.50

8

5114836011
ref: 8

GASKET (NAS)

€ 4.00

9

5115201H10
ref: 9

BUSH,GUIDE

€ 15.00

10

5115301H10
ref: 10

SEAL,OIL

€ 20.00

11

5116817G80
ref: 11

SPACER,SEAL

€ 5.50

12

5117144H00
ref: 12

SPRING,FR

€ 31.00

13

5117301H00
ref: 13

SEAL,DUST

€ 9.50

14

5117612C10
ref: 14

COLLAR,SPRING(32.9X34X50)

€ 11.50

15

5117717G50
ref: 15

SPRING,REBOUND

€ 6.50

16

5118517G00
ref: 16

ADJUSTER BOLT,SPRING

€ 25.50

17

5118612C00
ref: 17

SEAT,SPRING

€ 3.50

18

0928009005
ref: 18

O RING(D:1.9,ID:8.6)

€ 4.00

19

5118832B00
ref: 19

PIN,SEAT SPRING

€ 3.50

20

5118912C00
ref: 20

BOLT,FORK

€ 38.50

21

5119219C00
ref: 21

JOINT,SPRING

€ 3.50

22

5119548B30
ref: 22

PIECE,OIL LOCK

€ 24.00

23

5119612C00
ref: 23

RING,PISTON

€ 5.50

24

5155638B00
ref: 24

CIRCLIP,FORK OIL SEAL

€ 4.50

25

5110444H20
ref: 25

DAMPER ASSY,FR FORK,L

€ 885.50

26

5114044H20
ref: 26

TUBE,OUTER,L

€ 455.50

27

5111044H00
ref: 27

TUBE,INNER

€ 303.00

28

5111712C00
ref: 28

O RING

€ 3.00

29

5112144H00
ref: 29

BUSH,SLIDE

€ 15.50

30

5114617G20
ref: 30

CYLINDER

€ 57.50

31

5114748130
ref: 31

BOLT(8X27)

€ 3.50

32

5114836011
ref: 32

GASKET (NAS)

€ 4.00

33

5115201H10
ref: 33

BUSH,GUIDE

€ 15.00

34

5115301H10
ref: 34

SEAL,OIL

€ 20.00

35

5116817G80
ref: 35

SPACER,SEAL

€ 5.50

36

5117144H00
ref: 36

SPRING,FR

€ 31.00

37

5117301H00
ref: 37

SEAL,DUST

€ 9.50

38

5117612C10
ref: 38

COLLAR,SPRING(32.9X34X50)

€ 11.50

39

5117717G50
ref: 39

SPRING,REBOUND

€ 6.50

40

5118517G00
ref: 40

ADJUSTER BOLT,SPRING

€ 25.50

41

5118612C00
ref: 41

SEAT,SPRING

€ 3.50

42

0928009005
ref: 42

O RING(D:1.9,ID:8.6)

€ 4.00

43

5118832B00
ref: 43

PIN,SEAT SPRING

€ 3.50

44

5118912C00
ref: 44

BOLT,FORK

€ 38.50

45

5119219C00
ref: 45

JOINT,SPRING

€ 3.50

46

5119548B30
ref: 46

PIECE,OIL LOCK

€ 24.00

47

5119612C00
ref: 47

RING,PISTON

€ 5.50

48

5155638B00
ref: 48

CIRCLIP,FORK OIL SEAL

€ 4.50

49

5120132F00
ref: 49

PROTECTOR

€ 17.00

50

5116601H10
ref: 50

BOLT

€ 7.00
