FRONT FORK DAMPER (SFV650AL4 E33)

SFV650 GLADIUS 2014 (L4) USA (E03)

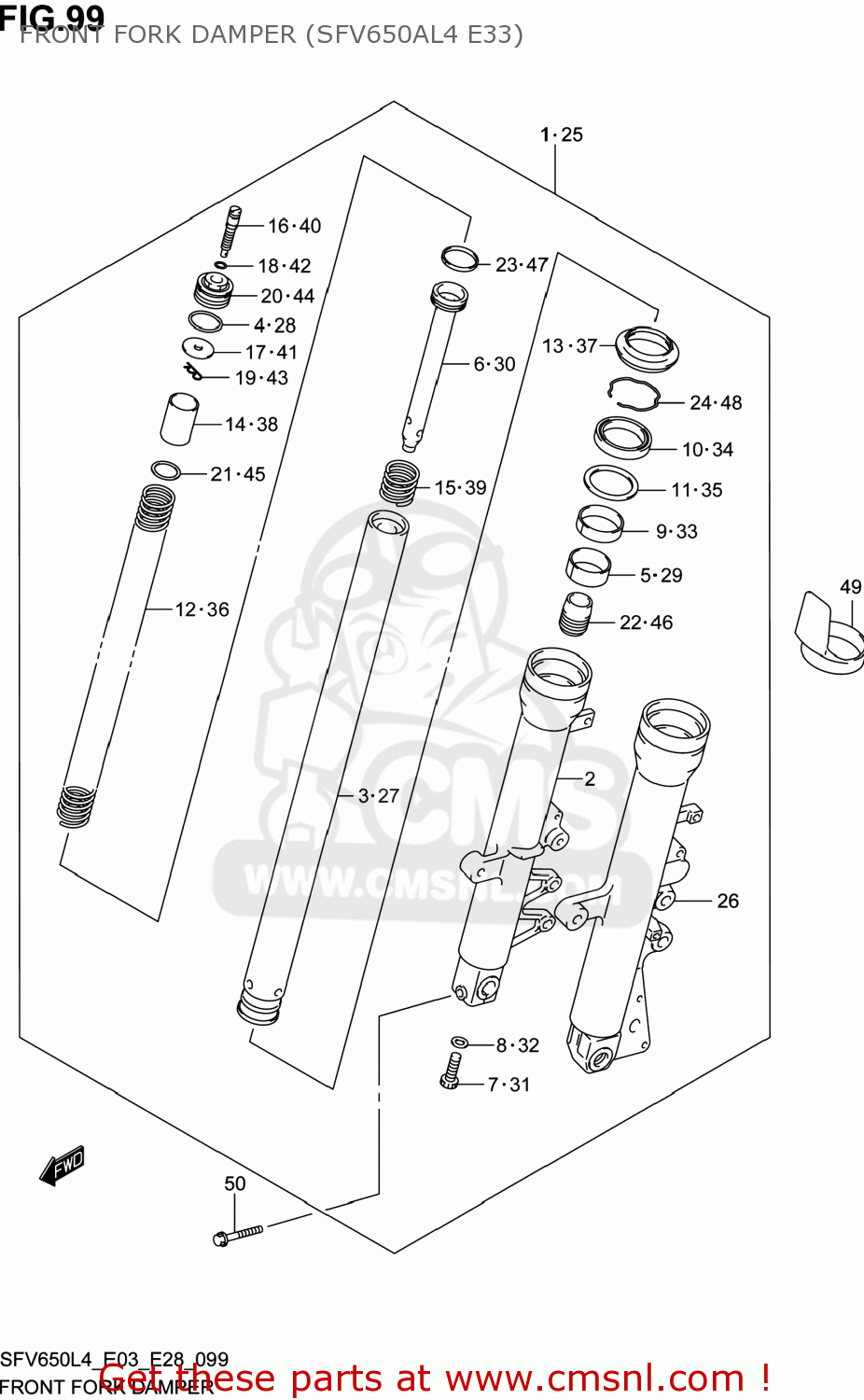

Front fork damper (sfv650al4 e33) diagram SFV650 GLADIUS 2014 (L4) USA (E03)

FRONT FORK DAMPER (SFV650AL4 E33) SFV650 GLADIUS 2014 (L4) USA (E03)
FRONT FORK DAMPER (SFV650AL4 E33) SFV650 GLADIUS 2014 (L4) USA (E03)
FRONT FORK DAMPER (SFV650AL4 E33) SFV650 GLADIUS 2014 (L4) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
5110344H30
ref: 1
DAMPER ASSY,FR FORK,R
€ 886.50
2
5113044H30
ref: 2
TUBE,OUTER,R
€ 462.00
3
5111044H00
ref: 3
TUBE,INNER
5111044H00
€ 303.00
4
5111712C00
ref: 4
O RING
5111712C00
€ 3.00
5
5112144H00
ref: 5
BUSH,SLIDE
5112144H00
€ 15.50
6
5114617G20
ref: 6
CYLINDER
5114617G20
€ 57.50
7
5114748130
ref: 7
BOLT(8X27)
5114748130
€ 3.50
8
5114831030
ref: 8
51148-36011
GASKET (NAS)
5114831030
€ 4.00
9
5115201H10
ref: 9
BUSH,GUIDE
5115201H10
€ 15.00
10
5115301H10
ref: 10
SEAL,OIL
5115301H10
€ 20.00
11
5116817G80
ref: 11
SPACER,SEAL
5116817G80
€ 5.50
12
5117144H00
ref: 12
SPRING,FR
5117144H00
€ 31.00
13
5117301H00
ref: 13
SEAL,DUST
5117301H00
€ 9.50
14
5117612C10
ref: 14
COLLAR,SPRING(32.9X34X50)
5117612C10
€ 11.50
15
5117717G50
ref: 15
SPRING,REBOUND
€ 6.50
16
5118517G00
ref: 16
ADJUSTER BOLT,SPRING
5118517G00
€ 25.50
17
5118612C00
ref: 17
SEAT,SPRING
5118612C00
€ 3.50
18
0928009005
ref: 18
O RING(D:1.9,ID:8.6)
0928009005
€ 4.00
19
5118832B00
ref: 19
PIN,SEAT SPRING
5118832B00
€ 3.50
20
5118912C00
ref: 20
BOLT,FORK
5118912C00
€ 38.50
21
5119219C00
ref: 21
JOINT,SPRING
5119219C00
€ 3.50
22
5119548B31
ref: 22
PIECE,OIL LOCK
5119548B31
€ 19.00
23
5119612C00
ref: 23
RING,PISTON
5119612C00
€ 5.50
24
5155638B00
ref: 24
CIRCLIP,FORK OIL SEAL
5155638B00
€ 4.50
25
5110444H30
ref: 25
DAMPER ASSY,FR FORK,L
€ 976.50
26
5114044H30
ref: 26
TUBE,OUTER,L
5114044H30
€ 530.50
27
5111044H00
ref: 27
TUBE,INNER
5111044H00
€ 303.00
28
5111712C00
ref: 28
O RING
5111712C00
€ 3.00
29
5112144H00
ref: 29
BUSH,SLIDE
5112144H00
€ 15.50
30
5114617G20
ref: 30
CYLINDER
5114617G20
€ 57.50
31
5114748130
ref: 31
BOLT(8X27)
5114748130
€ 3.50
32
5114831030
ref: 32
51148-36011
GASKET (NAS)
5114831030
€ 4.00
33
5115201H10
ref: 33
BUSH,GUIDE
5115201H10
€ 15.00
34
5115301H10
ref: 34
SEAL,OIL
5115301H10
€ 20.00
35
5116817G80
ref: 35
SPACER,SEAL
5116817G80
€ 5.50
36
5117144H00
ref: 36
SPRING,FR
5117144H00
€ 31.00
37
5117301H00
ref: 37
SEAL,DUST
5117301H00
€ 9.50
38
5117612C10
ref: 38
COLLAR,SPRING(32.9X34X50)
5117612C10
€ 11.50
39
5117717G50
ref: 39
SPRING,REBOUND
€ 6.50
40
5118517G00
ref: 40
ADJUSTER BOLT,SPRING
5118517G00
€ 25.50
41
5118612C00
ref: 41
SEAT,SPRING
5118612C00
€ 3.50
42
0928009005
ref: 42
O RING(D:1.9,ID:8.6)
0928009005
€ 4.00
43
5118832B00
ref: 43
PIN,SEAT SPRING
5118832B00
€ 3.50
44
5118912C00
ref: 44
BOLT,FORK
5118912C00
€ 38.50
45
5119219C00
ref: 45
JOINT,SPRING
5119219C00
€ 3.50
46
5119548B31
ref: 46
PIECE,OIL LOCK
5119548B31
€ 19.00
47
5119612C00
ref: 47
RING,PISTON
5119612C00
€ 5.50
48
5155638B00
ref: 48
CIRCLIP,FORK OIL SEAL
5155638B00
€ 4.50
49
5120132F00
ref: 49
PROTECTOR
5120132F00
€ 17.00
50
5116601H10
ref: 50
BOLT
5116601H10
€ 7.00
