REAR COMBINATION LAMP

SFV650 GLADIUS 2014 (L4) USA (E03)

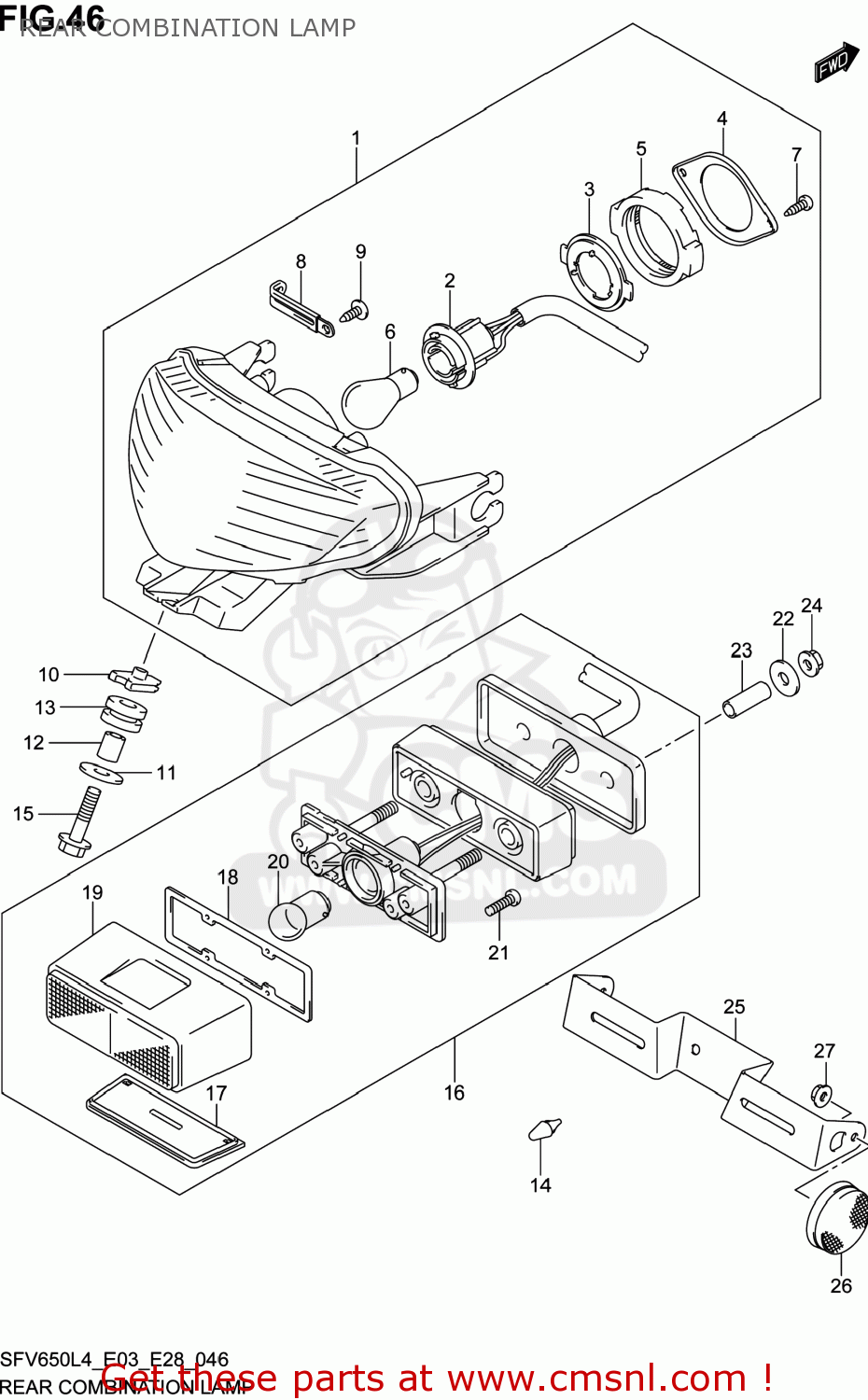

Rear combination lamp diagram SFV650 GLADIUS 2014 (L4) USA (E03)

REAR COMBINATION LAMP SFV650 GLADIUS 2014 (L4) USA (E03)

REAR COMBINATION LAMP SFV650 GLADIUS 2014 (L4) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3571044H00
ref: 1

LAMP ASSY,RR COMBINATION

€ 157.00

2

3571844H00
ref: 2

SOCKET & CORD

€ 43.00

3

3571648B21
ref: 3

PLATE NO.1

€ 25.00

4

3573648B21
ref: 4

PLATE NO.2

€ 16.50

5

3576542E00
ref: 5
35765-48B21

CUSHION

€ 10.50

6

0947112046
ref: 6
09471-12128

BULB(12V21/5W)

€ 1.50

7

032110412A
ref: 7

SCREW

€ 1.50

8

0940406429
ref: 8

CLAMP(L:45)

€ 2.50

9

035410512A
ref: 9

SCREW

€ 2.00

10

0914805039
ref: 10

NUT

€ 2.00

11

0916005501
ref: 11

WASHER(5.5X20X1.2)

€ 2.00

12

0918005301
ref: 12

SPACER(5.5X9.5X10)

€ 2.50

13

0932010054
ref: 13

CUSHION

€ 2.00

14

0932106028
ref: 14

CUSHION

€ 3.00

15

015500525A
ref: 15

BOLT

€ 1.50

16

3591041G31
ref: 16

LAMP ASSY,LICENSE

€ 62.50

17

3591241G01
ref: 17

LENS,LICENSE LAMP

€ 19.50

18

3591341G00
ref: 18

GASKET (NAS)

€ 19.00

19

3591741G00
ref: 19

COVER,LICENSE LAMP

€ 27.00

20

0947112140
ref: 20
09471-12058

BULB(12V5W,BF150-40160A)

€ 4.00

21

032110416A
ref: 21

SCREW

€ 1.50

22

0916006077
ref: 22

WASHER(6.5X20X1.2)

€ 2.00

23

0918006278
ref: 23

SPACER(6.5X9X33.3)

€ 3.50

24

083161006A
ref: 24

NUT

€ 2.50

25

3592744H30
ref: 25

BRACKET,LICENSE PLATE

€ 10.00

26

3597014A20
ref: 26

REFLECTOR ASSY,RR SIDE

€ 11.00

27

083161005A
ref: 27

NUT

€ 2.50
