AIR CLEANER

TS185ER 1980 (T) (01 02 04 09 15 E17 E18 E21 E22 E24 E25 E26 E30

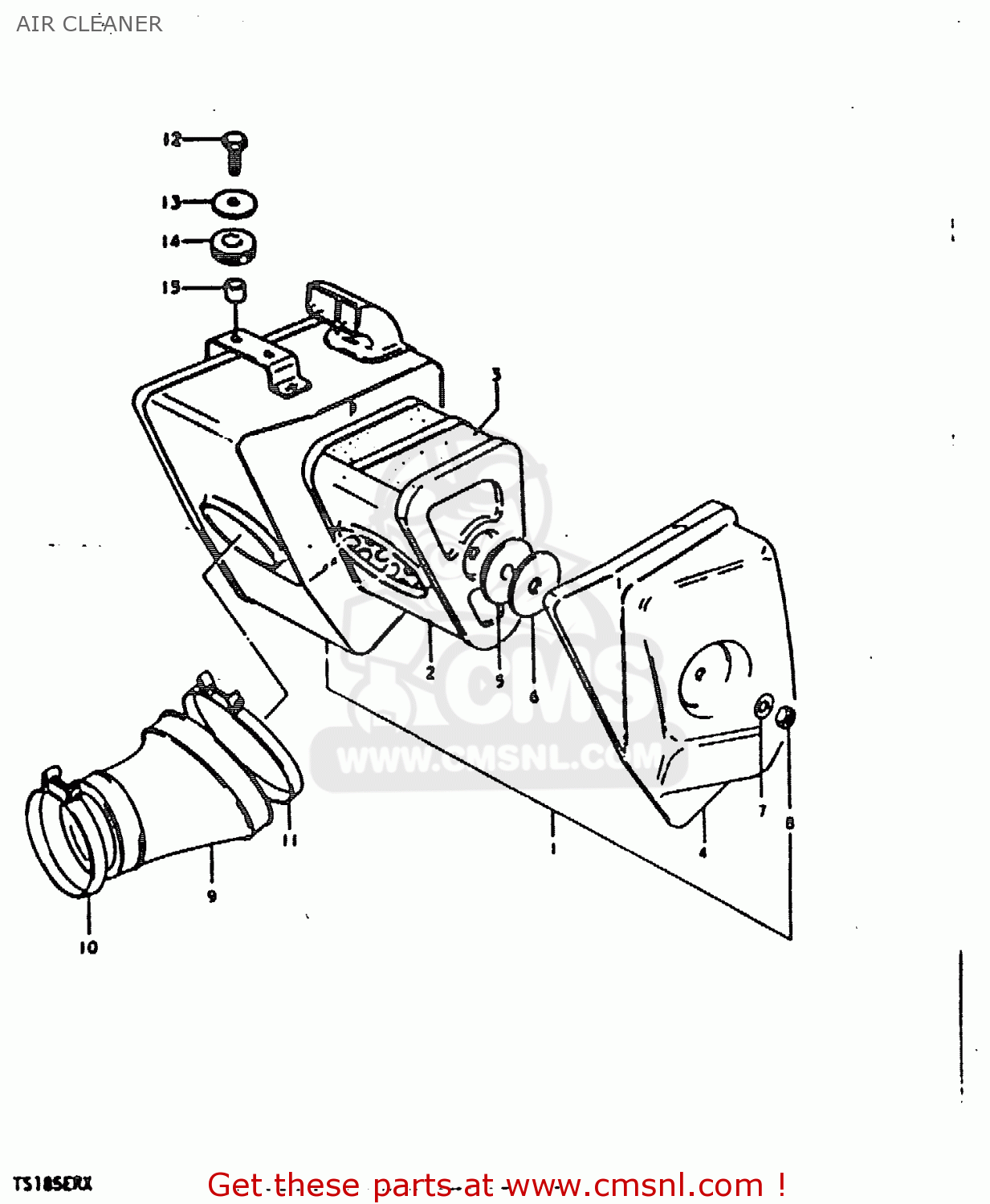

Air cleaner diagram TS185ER 1980 (T) (01 02 04 09 15 E17 E18 E21 E22 E24 E25 E26 E30

AIR CLEANER TS185ER 1980 (T) (01 02 04 09 15 E17 E18 E21 E22 E24 E25 E26 E30

AIR CLEANER TS185ER 1980 (T) (01 02 04 09 15 E17 E18 E21 E22 E24 E25 E26 E30

prices are in EUR

ref

part #

description

quantity

1

1370029311
ref: 1

CLEANER ASSEMBLY,AIR

€ 98.50

2

1378029310
ref: 2

FILTER ASSY,AIR CLEANER

€ 25.00

3

1378129310
ref: 3

FILTER

€ 5.50

4

1377129310
ref: 4

CAP

€ 12.00

5

1378928010
ref: 5

SEAL

€ 1.50

6

1379029310
ref: 6

SPACER

€ 7.00

7

0832221068
ref: 7

WASHER

€ 2.00

8

0831012088
ref: 8

NUT

€ 2.00

9

1388129900
ref: 9

TUBE,AIR CLEANER OUTLET

€ 27.50

10

0940256306
ref: 10

CLAMP

€ 3.50

11

0940266306
ref: 11

CLAMP

€ 7.50

12

0110706168
ref: 12

BOLT, UPPER

€ 3.00

13

0916006027
ref: 13

WASHER (6.5X20X1.2)

€ 2.00

14

0932008007
ref: 14

CUSHION

€ 4.00

15

0918007005
ref: 15

SPACER (7X9X7)

€ 2.50
