FRAME

TS185ER 1980 (T) (01 02 04 09 15 E17 E18 E21 E22 E24 E25 E26 E30

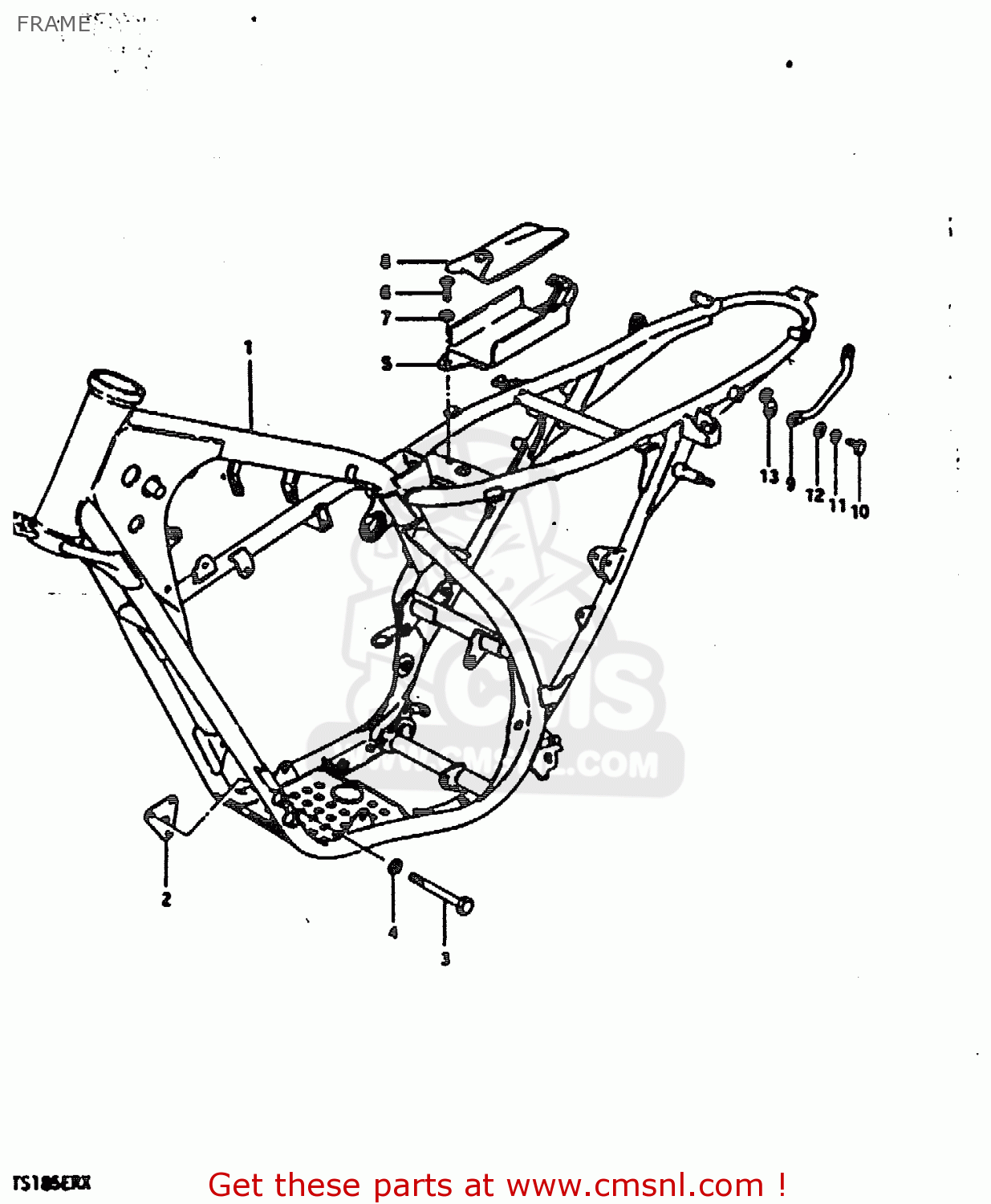

Frame diagram TS185ER 1980 (T) (01 02 04 09 15 E17 E18 E21 E22 E24 E25 E26 E30

FRAME TS185ER 1980 (T) (01 02 04 09 15 E17 E18 E21 E22 E24 E25 E26 E30

FRAME TS185ER 1980 (T) (01 02 04 09 15 E17 E18 E21 E22 E24 E25 E26 E30

prices are in EUR

ref

part #

description

quantity

1-1

4110029900019
ref: 1-1

FRAME

€ 926.00

1-2

NOTUSED
ref: 1-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

2

4199030500
ref: 2

PLATE,ENG MTG,L

€ 5.50

3

0110708558
ref: 3

BOLT 8X55

€ 3.00

4

0832211088
ref: 4

WASHER

€ 2.00

5

4155029301
ref: 5

HOLDER,TOOL

€ 0.00

6

0211206108
ref: 6

SCREW

€ 1.50

7

0832221068
ref: 7

WASHER

€ 2.00

8

0980000205
ref: 8

TOOL SET

€ 43.50

9

4161148500
ref: 9

GRIP,FRAME HANDLE

€ 35.50

10

0110708168
ref: 10

BOLT

€ 2.00

11

0832121088
ref: 11

LOCK WASHER

€ 2.00

12

0832211088
ref: 12

WASHER

€ 2.00

13

9572130900
ref: 13

HOOK,HELMET HOLDER

€ 0.00
