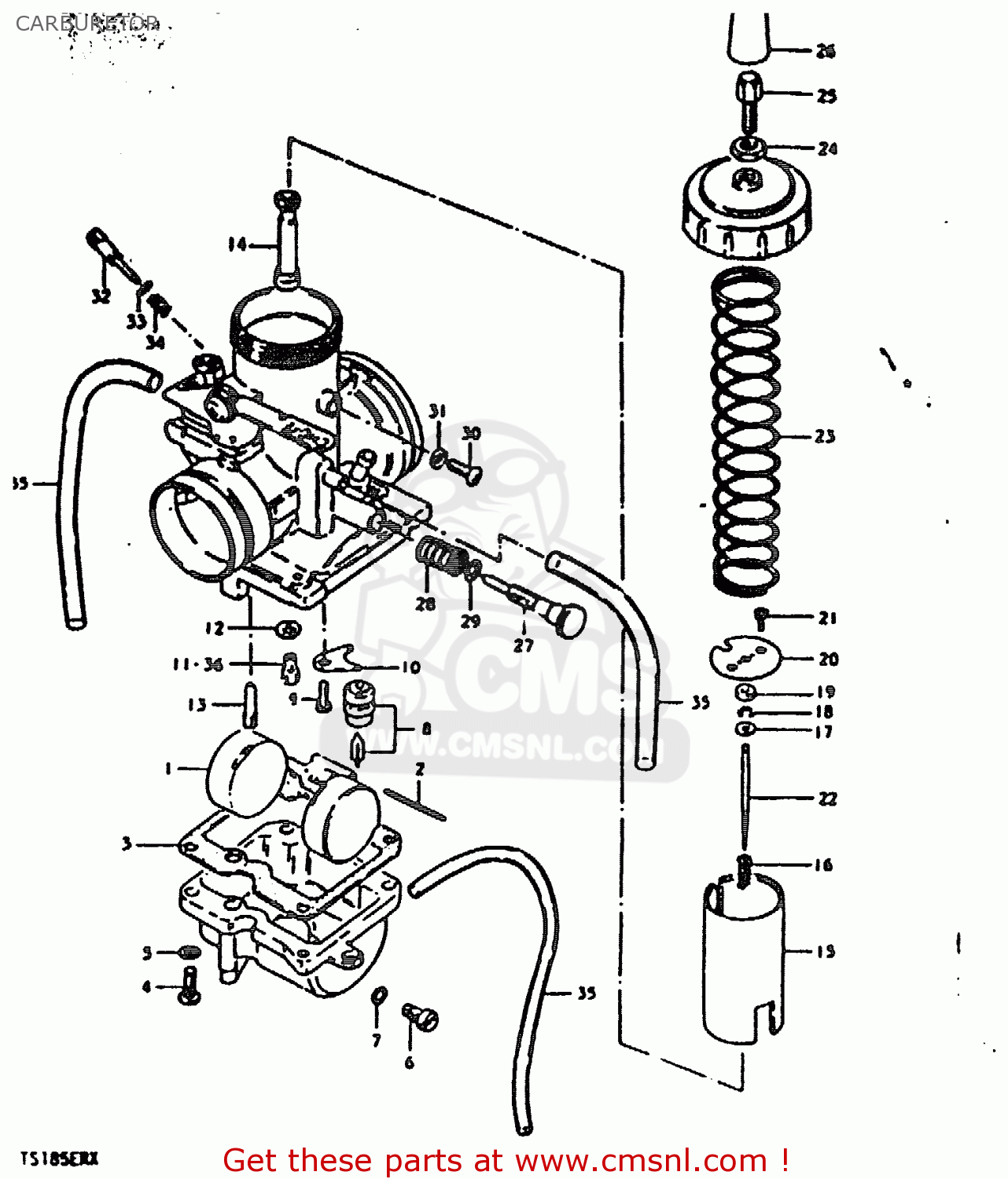

CARBURETOR

ref

part #

description

quantity

0

1320029910
ref: 0

CARBURETOR ASSEMBLY

€ 277.50

1

1325229630
ref: 1

FLOAT

€ 22.50

2

1325401010
ref: 2

PIN,FLOAT

€ 3.00

3

1325130910
ref: 3

GASKET,FLOAT CAHMBER (NAS)

€ 9.00

4

0211204168
ref: 4

SCREW

€ 1.00

5

0832121068
ref: 5

LOCK WASHER

€ 2.50

6

1324705010
ref: 6

PLUG

€ 6.00

7

1324905010
ref: 7

GASKET,DRAIN,PLUG (NAS)

€ 1.50

8

1337030530
ref: 8

VALVE ASSEMBLY,NEEDLE

€ 51.50

9

0211204088
ref: 9

SCREW

€ 1.50

10

1337339110
ref: 10

PLATE

€ 6.50

11

0949138005
ref: 11

JET

€ 7.00

12

1338203110
ref: 12

WASHER

€ 2.50

13

0949225003
ref: 13

JET

€ 6.50

14

0949400259
ref: 14

JET,NEEDLE

€ 13.00

15

1355130910
ref: 15

VALVE,THROTTLE

€ 37.00

16

1338847010
ref: 16

SPRING

€ 7.00

17

1338247010
ref: 17

WASHER,JET NEEDLE

€ 3.00

18

1339410010
ref: 18

CLIP

€ 4.50

19

1338747010
ref: 19

RING

€ 7.50

20

1358130910
ref: 20

PLATE

€ 3.50

21

1339934010
ref: 21

SCREW

€ 2.00

22

1338330910
ref: 22

NEEDLE,JET

€ 15.00

23

1357397010
ref: 23
TO 13573-30900

SPRING, THROTTLE VALVE

€ 6.00

24

1366116600
ref: 24

NUT

€ 5.00

25

1357703010
ref: 25
TO 13577-48110

ADJUSTER,CABLE

€ 8.00

26

1368116601
ref: 26

CAP

€ 7.00

27

1326746010
ref: 27

ADJUSTER

€ 10.00

28

1326846010
ref: 28

SPRING

€ 3.50

29

1329430010
ref: 29

O-RING

€ 1.50

30

0211205068
ref: 30

SCREW

€ 4.00

31

1366346710
ref: 31

RING

€ 3.00

32

1326932400
ref: 32

SCREW,PILOT AIR

€ 11.50

33

1329533010
ref: 33

O RING

€ 4.50

34

1326835010
ref: 34

SPRING

€ 3.00

35

1368339110
ref: 35

HOSE

€ 8.00

36-1

0949138003
ref: 36-1
OPT

JET

€ 10.00

36-2

0949140004
ref: 36-2
OPT

JET

€ 11.50

36-3

0949142001
ref: 36-3
OPT

JET,MAIN (210)

€ 11.00

all assemblies
