OIL TANK

TS185ER 1980 (T) (01 02 04 09 15 E17 E18 E21 E22 E24 E25 E26 E30

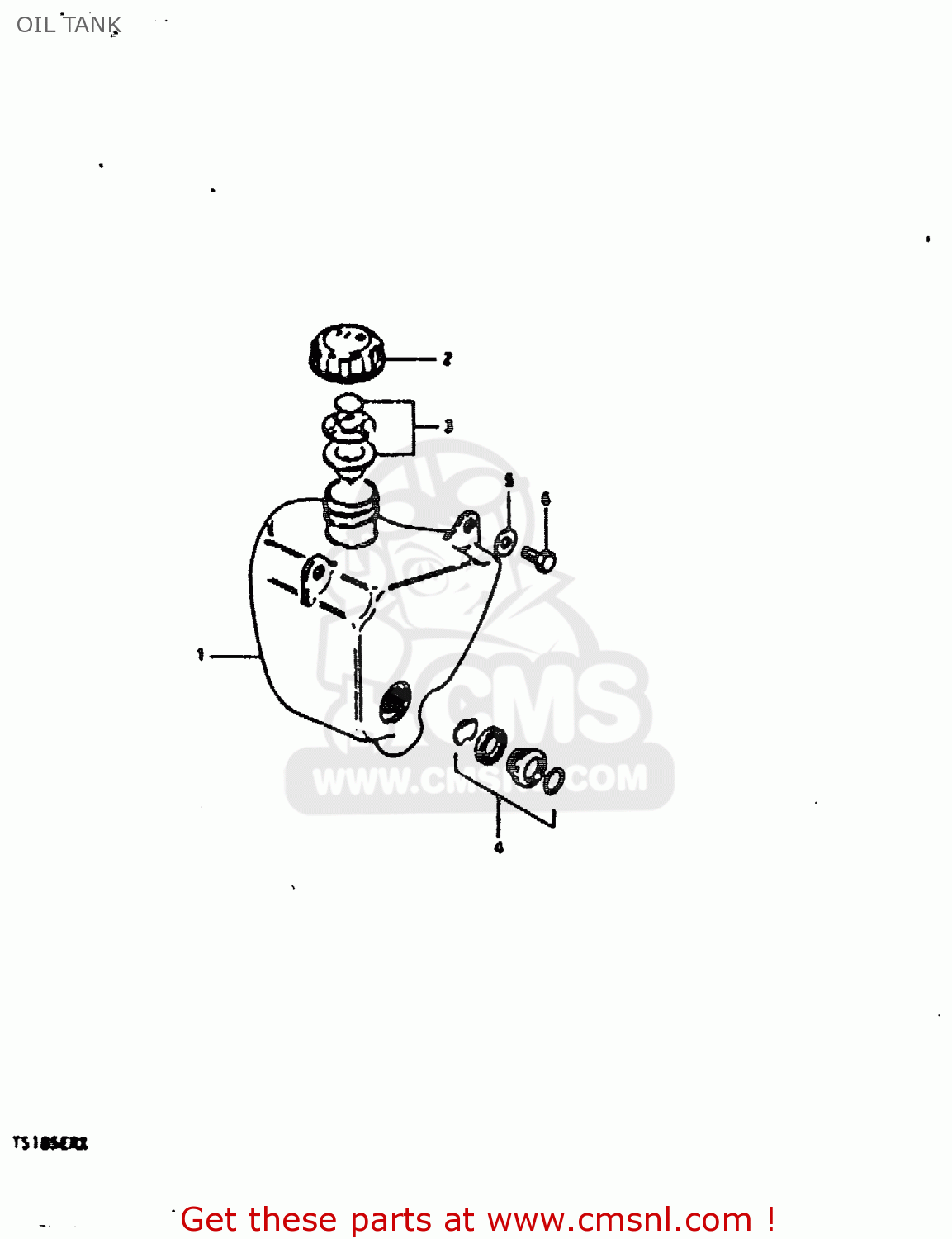

Oil tank diagram TS185ER 1980 (T) (01 02 04 09 15 E17 E18 E21 E22 E24 E25 E26 E30

OIL TANK TS185ER 1980 (T) (01 02 04 09 15 E17 E18 E21 E22 E24 E25 E26 E30

OIL TANK TS185ER 1980 (T) (01 02 04 09 15 E17 E18 E21 E22 E24 E25 E26 E30

prices are in EUR

ref

part #

description

quantity

1

4461129301
ref: 1

TANK,OIL

€ 27.00

2

4465105000
ref: 2

CAP,OIL TANK

€ 4.00

3

4460030832
ref: 3

GASKET SET (NAS)

€ 6.00

4

4460046810
ref: 4

LENS SET,OIL LEVEL

€ 6.50

5

0916006007
ref: 5

WASHER

€ 2.00

6

0110706168
ref: 6

BOLT, UPPER

€ 3.00
