CRANKCASE COVER

TS185ER 1980 (T) (01 02 04 09 15 E17 E18 E21 E22 E24 E25 E26 E30

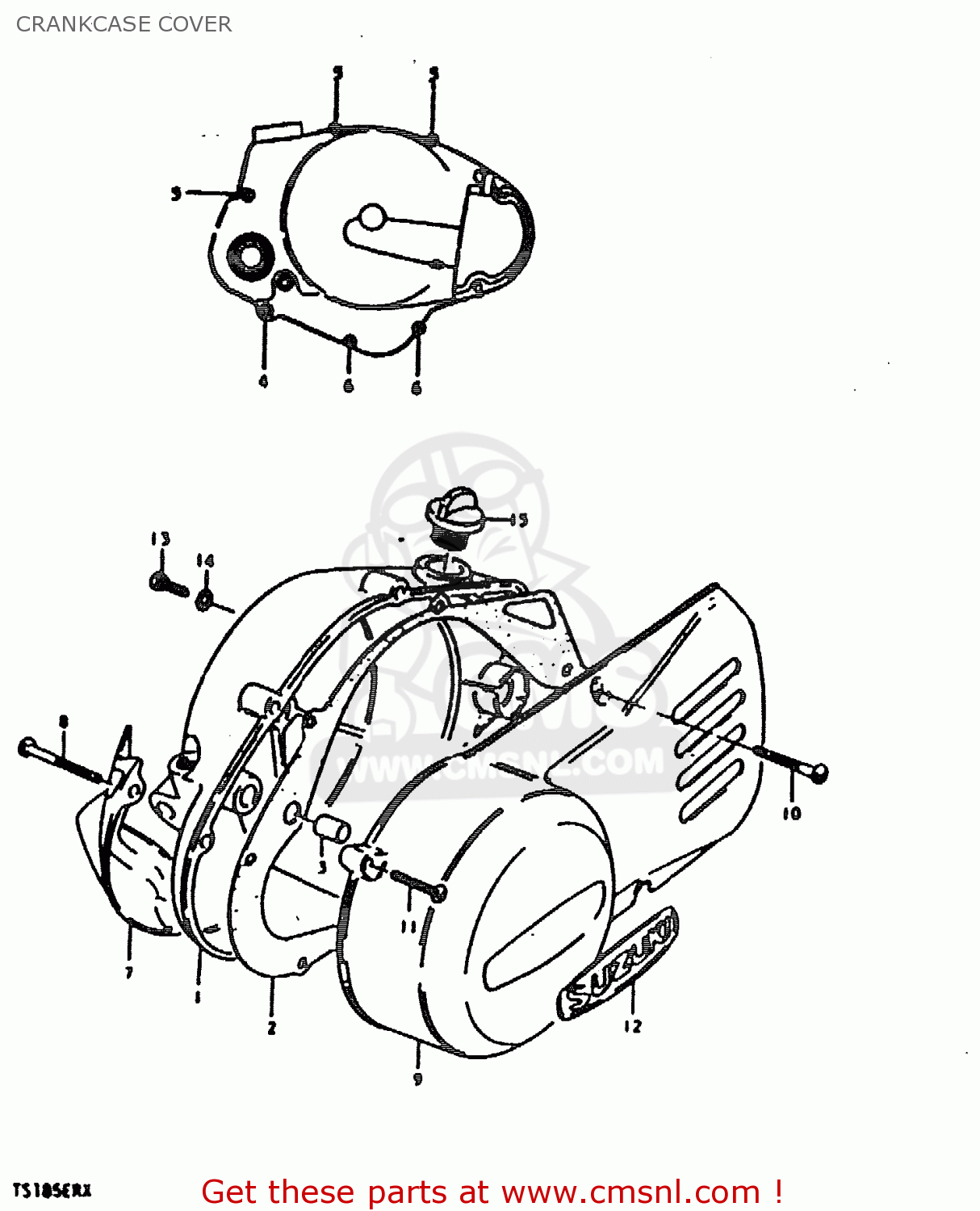

Crankcase cover diagram TS185ER 1980 (T) (01 02 04 09 15 E17 E18 E21 E22 E24 E25 E26 E30

prices are in EUR

ref

part #

description

quantity

1134129301
ref: 1

COVER,CLUTCH

€ 129.50

1148229300
ref: 2

GASKET,CLUTCH COVER (MCA)

€ 10.00

0920613001
ref: 3

PIN

€ 2.50

0211206458
ref: 4

SCREW (6X45)

€ 2.00

0211206408
ref: 5

SCREW

€ 2.00

0211206258
ref: 6

SCREW

€ 2.00

1145129301
ref: 7

COVER,CLUTCH RELEASE A

€ 27.00

0211206408
ref: 8

SCREW

€ 2.00

1135129301
ref: 9

COVER,MAGNETO

€ 115.50

0211206308
ref: 10

SCREW 6X30

€ 2.50

0211206258
ref: 11

SCREW

€ 2.00

6823328000
ref: 12

EMBLEM,MAGNETO COVER

€ 9.50

0912806004
ref: 13

SCREW(6X10)

€ 1.50

0916806001
ref: 14

GASKET(6.2X11X1) (NAS)

€ 1.50

0925919001
ref: 15

PLUG

€ 6.00
