STEERING STEM

TS185ER 1980 (T) (01 02 04 09 15 E17 E18 E21 E22 E24 E25 E26 E30

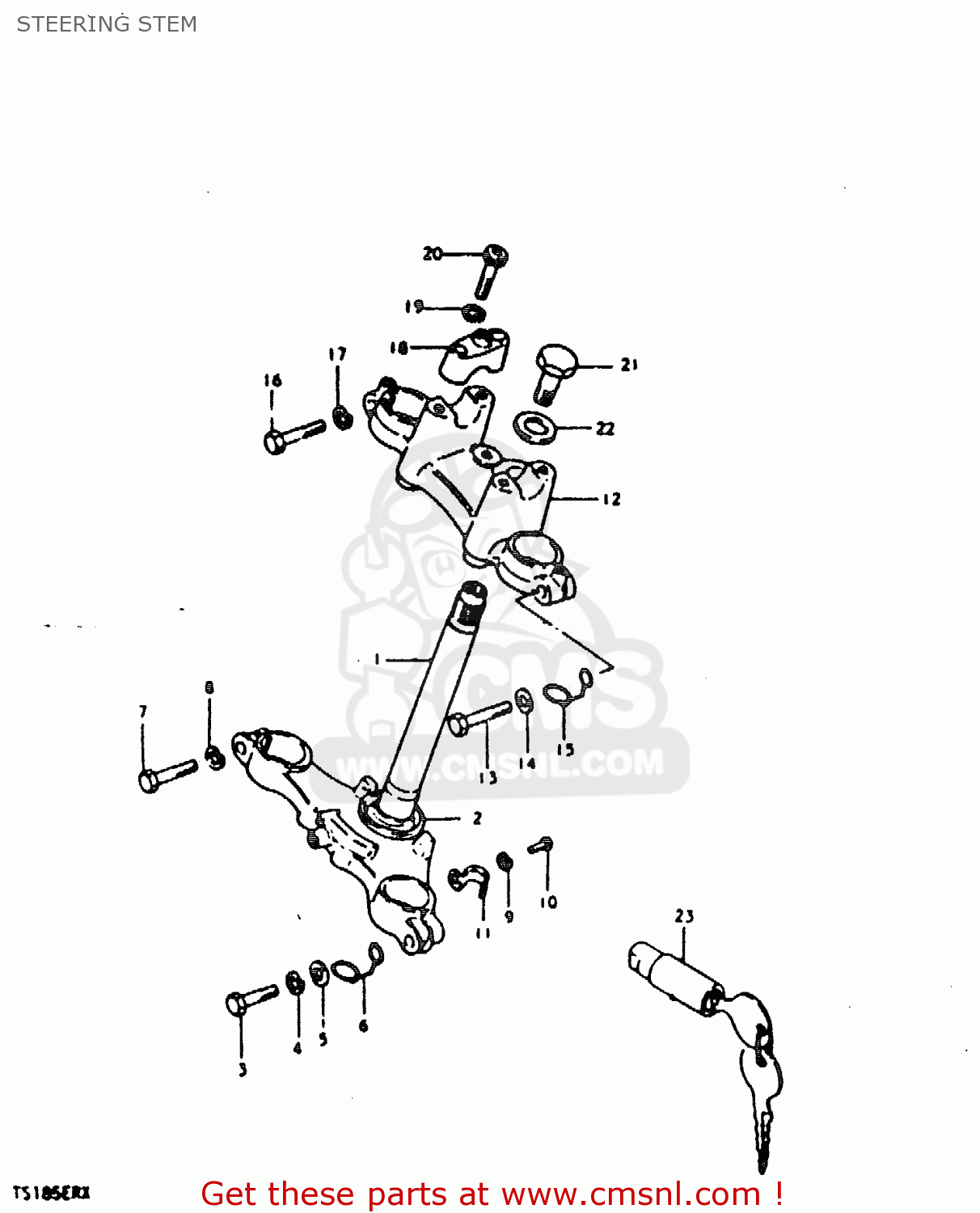

Steering stem diagram TS185ER 1980 (T) (01 02 04 09 15 E17 E18 E21 E22 E24 E25 E26 E30

STEERING STEM TS185ER 1980 (T) (01 02 04 09 15 E17 E18 E21 E22 E24 E25 E26 E30
STEERING STEM TS185ER 1980 (T) (01 02 04 09 15 E17 E18 E21 E22 E24 E25 E26 E30
STEERING STEM TS185ER 1980 (T) (01 02 04 09 15 E17 E18 E21 E22 E24 E25 E26 E30
prices are in EUR
ref
part #
description
quantity
1-1
514102992008C
ref: 1-1
STEM,STEERING
€ 155.00
1-2
NOTUSED
ref: 1-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
2
5162133001
ref: 2
RACE,STEERING OUTER LWR
5162133001
€ 10.00
3
0110412458
ref: 3
BOLT
0110412458
€ 5.50
4
0832121128
ref: 4
WASHER,LOCK 12
0832121128
€ 2.50
5
0832211128
ref: 5
WASHER
0832211128
€ 2.00
6
5145530540
ref: 6
CLIP
5145530540
€ 5.50
7
0110412408
ref: 7
BOLT
€ 3.00
8
0832121128
ref: 8
WASHER,LOCK 12
0832121128
€ 2.50
9
0832121068
ref: 9
LOCK WASHER
0832121068
€ 2.50
10
0211206108
ref: 10
SCREW
0211206108
€ 1.50
11
5145305110
ref: 11
CLIP,BRAKE CABLE
5145305110
€ 4.50
12
513112992008C
ref: 12
HEAD,STEERING STEM(GOLD)
€ 117.00
13
0110710408
ref: 13
BOLT 10X40
0110710408
€ 3.00
14
0916012006
ref: 14
WASHER
€ 2.00
15
5145529330
ref: 15
CLIP
€ 5.50
16
0110710408
ref: 16
BOLT 10X40
0110710408
€ 3.00
17
0832121108
ref: 17
LOCK WASHER
0832121108
€ 2.00
18
562112990008C
ref: 18
HOLDER,HANDLEBAR(GOLD)
€ 6.50
19
0832121088
ref: 19
LOCK WASHER
0832121088
€ 2.00
20
0910608004
ref: 20
BOLT 8X35
€ 4.00
21
5135120010
ref: 21
BOLT,FORK INNER TUBE
5135120010
€ 25.00
22
5135622012
ref: 22
WASHER,STEM HEAD(10.5X30X3.2)
5135622012
€ 4.00
23
NOTUSED
ref: 23
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
