HEADLAMP

TS185ER 1980 (T) (01 02 04 09 15 E17 E18 E21 E22 E24 E25 E26 E30

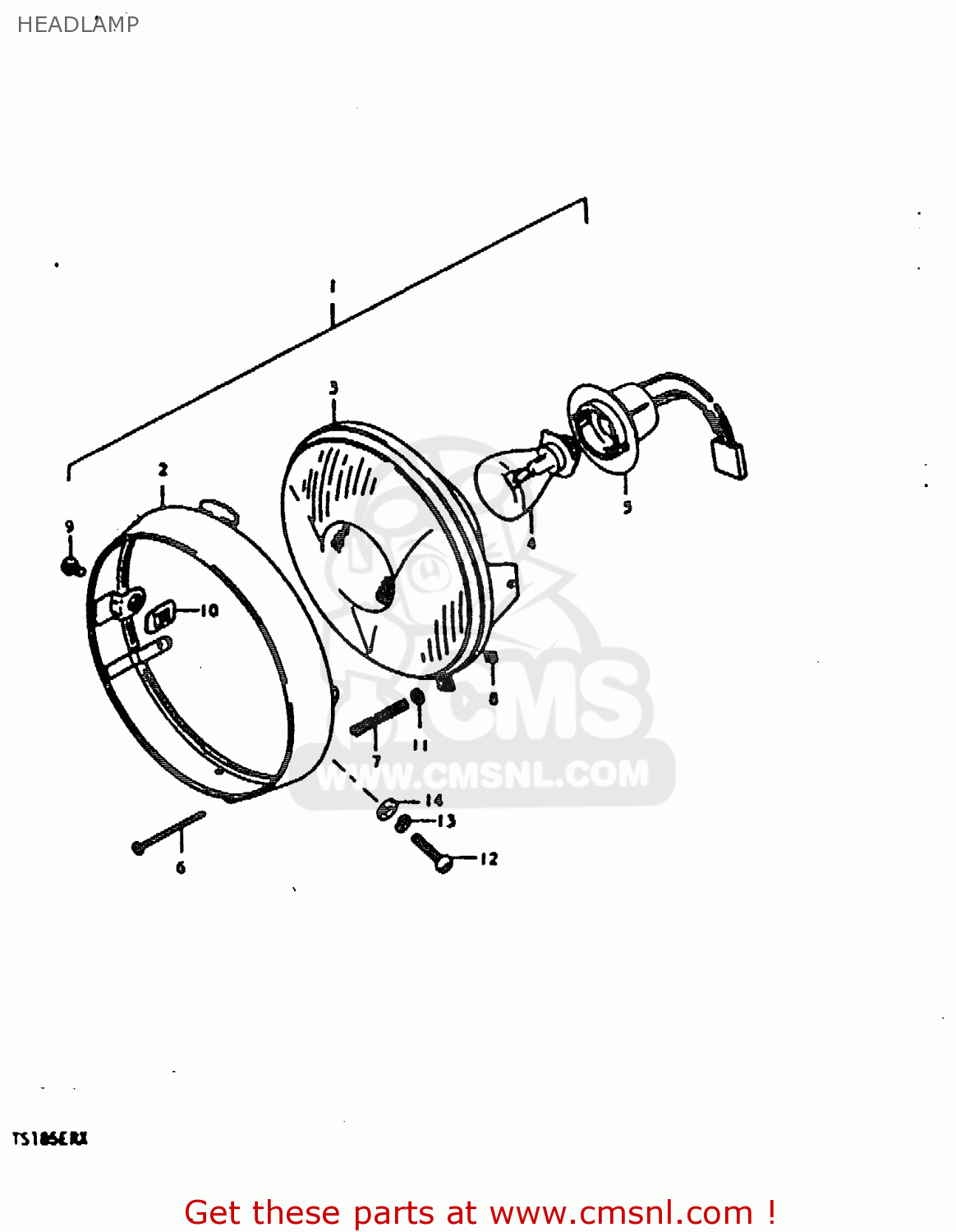

Headlamp diagram TS185ER 1980 (T) (01 02 04 09 15 E17 E18 E21 E22 E24 E25 E26 E30

HEADLAMP TS185ER 1980 (T) (01 02 04 09 15 E17 E18 E21 E22 E24 E25 E26 E30

HEADLAMP TS185ER 1980 (T) (01 02 04 09 15 E17 E18 E21 E22 E24 E25 E26 E30

prices are in EUR

ref

part #

description

quantity

1

3510048510
ref: 1

HEADLAMP ASSY

€ 136.50

2

3511148510
ref: 2

RIM

€ 34.00

3

3512148510
ref: 3

LAMP UNIT

€ 51.00

4

0947106029
ref: 4

BULB(6V25/25W,STANLEY,A7007)

€ 9.00

5

3517148510
ref: 5

SOCKET,HEADLAMP

€ 18.00

6

3515148510
ref: 6

SCREW,HEADLAMP ADJUST

€ 3.50

7

3515448510
ref: 7

SPRING

€ 2.50

8

3515248510
ref: 8

NUT,HEADLAMP ADJUSTER

€ 3.00

9

0211205088
ref: 9

SCREW

€ 2.00

10

3515548510
ref: 10

NUT

€ 2.00

11

3515748510
ref: 11

WASHER

€ 2.50

12

0211205168
ref: 12

SCREW

€ 2.50

13

0832121058
ref: 13

LOCK WASHER

€ 2.00

14

0832221058
ref: 14

WASHER

€ 2.50
