KICK STARTER

TS185ER 1980 (T) (01 02 04 09 15 E17 E18 E21 E22 E24 E25 E26 E30

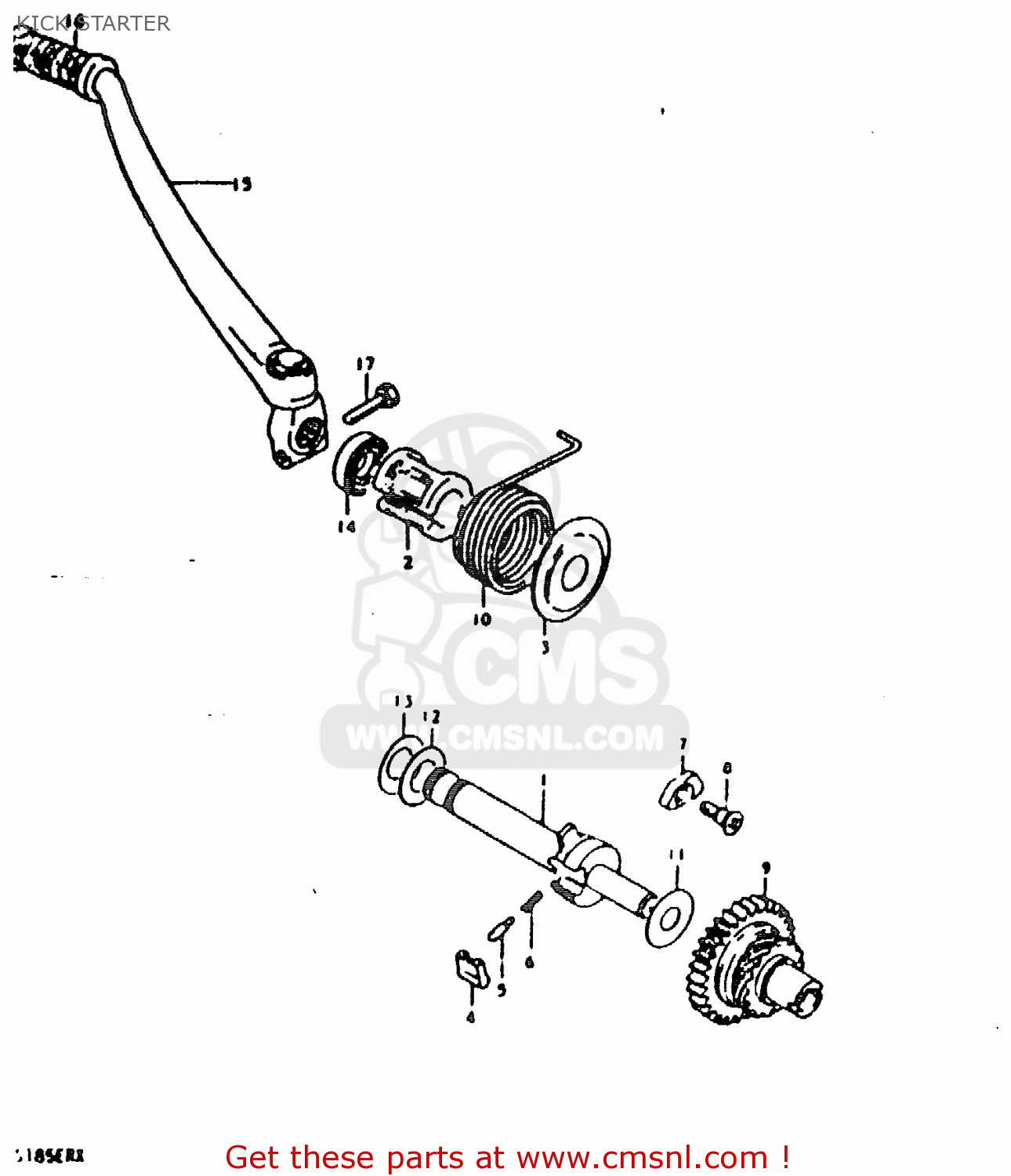

Kick starter diagram TS185ER 1980 (T) (01 02 04 09 15 E17 E18 E21 E22 E24 E25 E26 E30

prices are in EUR

ref

part #

description

quantity

2621128300
ref: 1

SHAFT,KICK STARTER

€ 72.00

2622123030
ref: 2

GUIDE,KICK STARTER SFT SPRING

€ 7.50

2622228300
ref: 3

HOLDER,KICK STARTER SHAFT SPR

€ 8.00

2623120000
ref: 4

PAWL,KICK STARTER

€ 13.50

0920905011
ref: 5

PIN(5X15.5)

€ 2.00

0944004010
ref: 6

SPRING

€ 1.50

2623201000
ref: 7

LIFTER,KICK STARTER PAWL

€ 8.00

0913906002
ref: 8

SCREW(6X19)

€ 2.50

2624029300
ref: 9

GEAR,KICK STARTER DRIIVE

€ 58.00

0944845004
ref: 10

SPRING

€ 5.00

0916012036
ref: 11

WASHER(12X30X3)

€ 3.00

0916016016
ref: 12

WASHER(16X30X0.5)

€ 2.50

0916416001
ref: 13

WASHER

€ 2.50

0928516002
ref: 14

SEAL,OIL(16X30X8)

€ 6.50

2630029302
ref: 15

LEVER ASSEMBLY,KICK STARTER

€ 65.50

2635216401
ref: 16

RUBBER,KICK STARTER PEDAL

€ 4.00

0110708258
ref: 17

BOLT

€ 2.50
