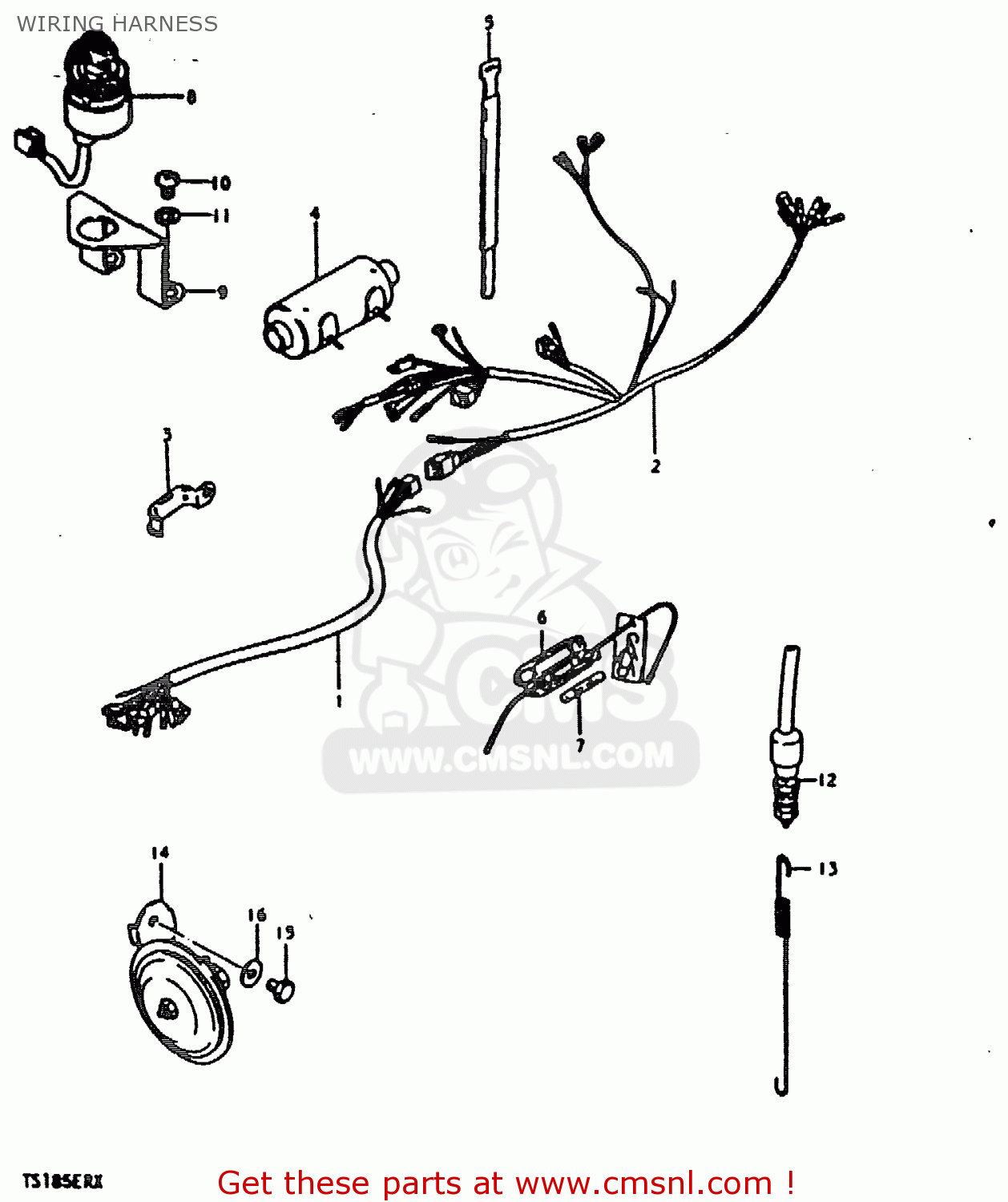

WIRING HARNESS

ref

part #

description

quantity

1

3661030901
ref: 1

HARNESS,WIRING NO.1

€ 73.50

2-1

3662030900
ref: 2-1

WIRING HARNESS NO.2

€ 61.50

2-2

NOTUSED
ref: 2-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

3

0940309307
ref: 3

CLAMP

€ 2.50

4

3661830610
ref: 4

BOOT,WIRING HARNESS

€ 9.50

5-1

0940711301
ref: 5-1

CLAMP L:110

€ 6.00

5-2

0940718301
ref: 5-2

CLAMP

€ 6.00

5-3

0940725301
ref: 5-3

CLAMP(L:250)

€ 4.50

6

3674015010
ref: 6

BOX ASSEMBLY,FUSE

€ 11.00

7

0948115001
ref: 7

FUSE(15A)

€ 3.00

8-1

NOTUSED
ref: 8-1

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

8-2

3711048510
ref: 8-2
E2, E4, E21, E26

SWITCH ASSY, IGNITION

€ 70.00

9

3711548501
ref: 9

BRACKET,IGNITION SWITCH

€ 7.50

10

0211206108
ref: 10

SCREW

€ 1.50

11

0832121068
ref: 11

LOCK WASHER

€ 2.50

12-1

3774004570
ref: 12-1
MODEL T,TO 37740-045

SWITCH ASSEMBLY,STOP LAMP

€ 22.00

12-2

3774004571
ref: 12-2
MODEL X

SWITCH ASSEMBLY,STOP LAMP

€ 22.00

13

0944811004
ref: 13

SPRING

€ 12.00

14

3850048580
ref: 14

HORN ASSEMBLY

€ 39.00

15

0110706108
ref: 15

BOLT

€ 2.00

16

0832221068
ref: 16

WASHER

€ 2.00
