REAR BRAKE

TS185ER 1980 (T) (01 02 04 09 15 E17 E18 E21 E22 E24 E25 E26 E30

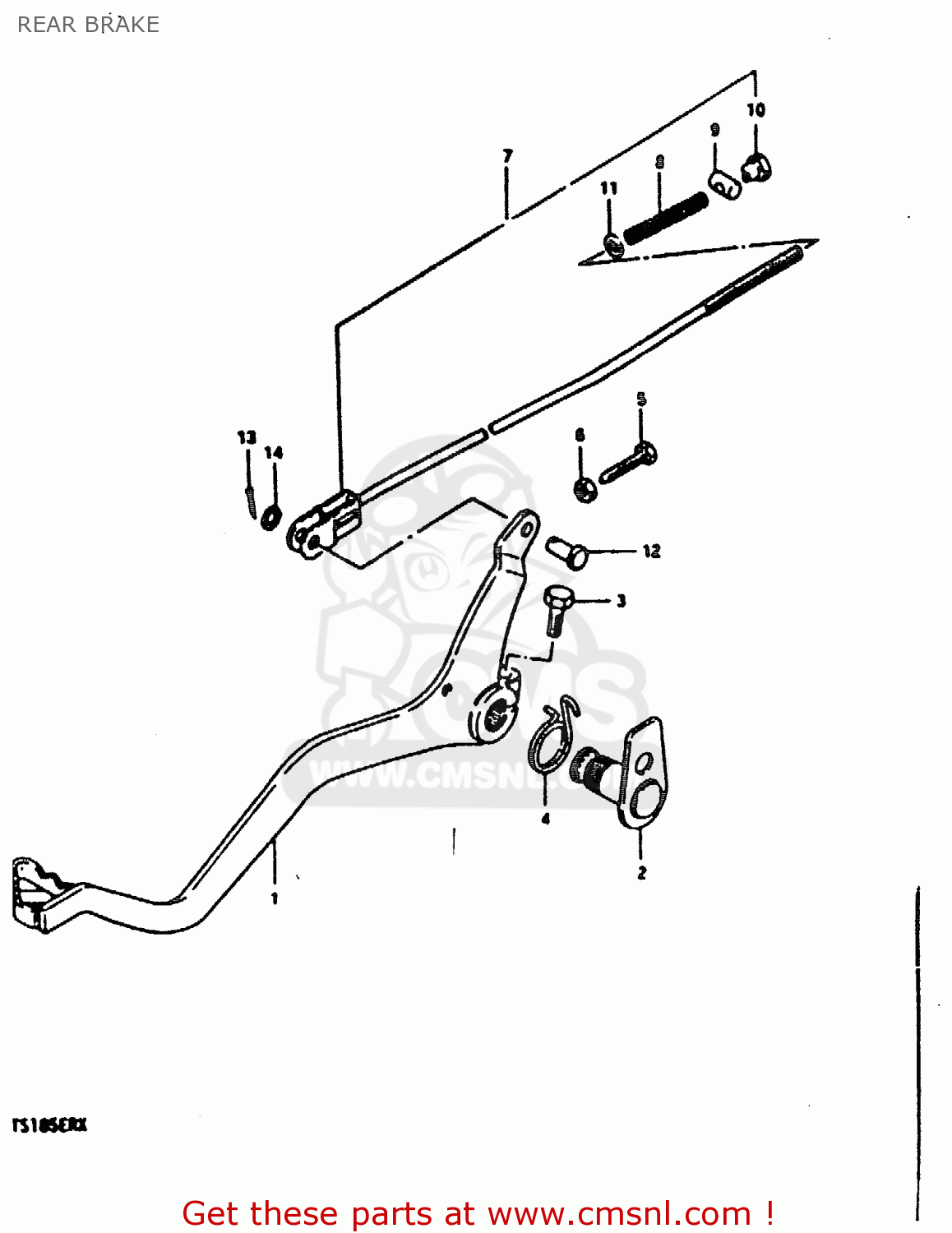

Rear brake diagram TS185ER 1980 (T) (01 02 04 09 15 E17 E18 E21 E22 E24 E25 E26 E30

REAR BRAKE TS185ER 1980 (T) (01 02 04 09 15 E17 E18 E21 E22 E24 E25 E26 E30

REAR BRAKE TS185ER 1980 (T) (01 02 04 09 15 E17 E18 E21 E22 E24 E25 E26 E30

prices are in EUR

ref

part #

description

quantity

1

4311048210
ref: 1

PEDAL,BRAKE

€ 36.50

2

4312048210
ref: 2

ARM,BRAKE PEDAL

€ 19.00

3

0110706208
ref: 3

BOLT

€ 2.00

4

0944825001
ref: 4

SPRING

€ 20.50

5

0910006009
ref: 5

BOLT(6X23)

€ 1.50

6

0831011068
ref: 6

NUT

€ 2.50

7

4330029910
ref: 7

ROD ASSY,RR BRAKE

€ 14.50

8

0944009004
ref: 8

SPRING

€ 2.00

9

0920913003
ref: 9

PIN

€ 3.50

10

0915006001
ref: 10

NUT

€ 3.50

11

0832221068
ref: 11

WASHER

€ 2.00

12

0920006013
ref: 12

PIN(L:13.5)

€ 2.00

13

0411120208
ref: 13

PIN 20X20

€ 1.50

14

0832221068
ref: 14

WASHER

€ 2.00
