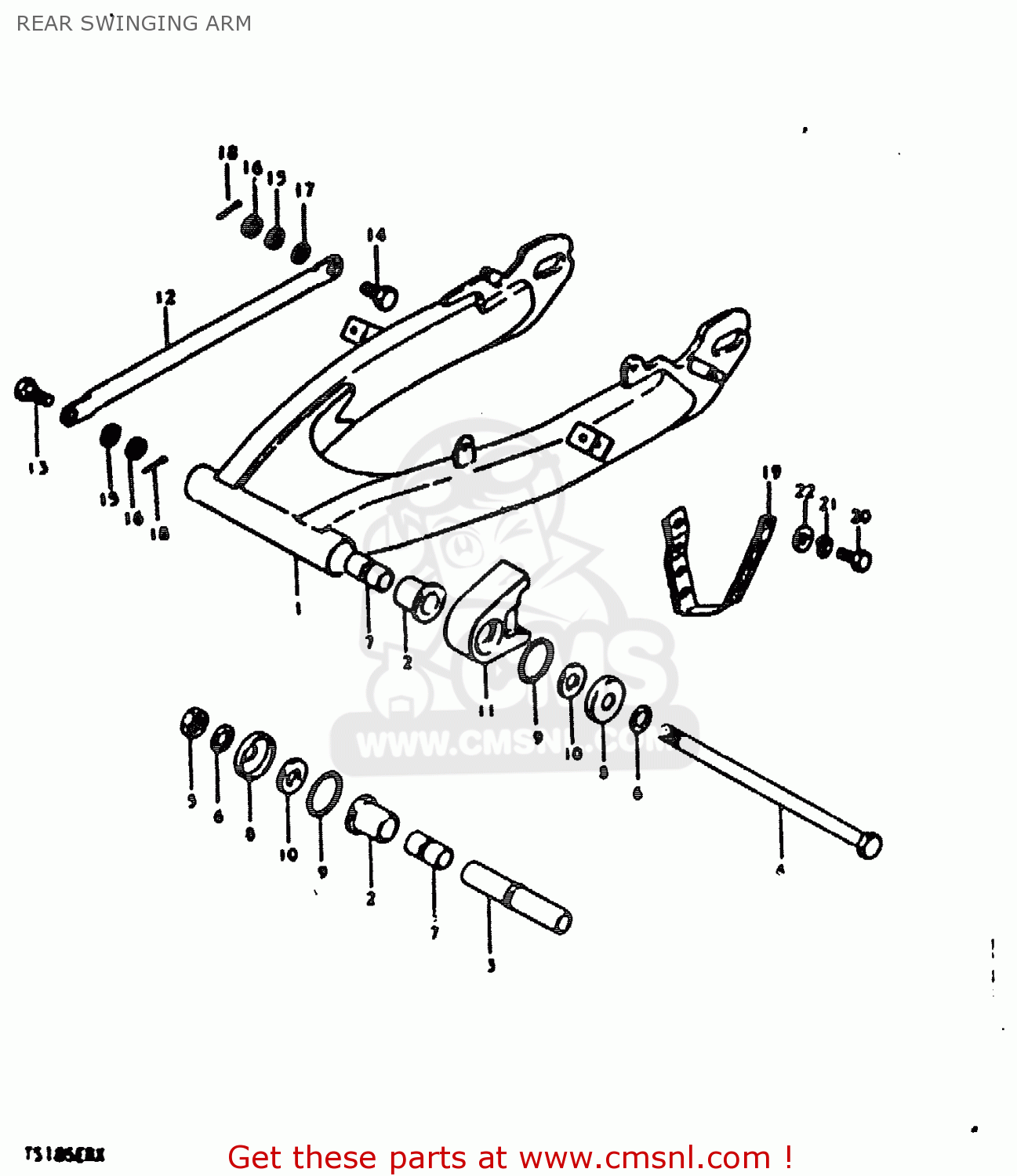

REAR SWINGING ARM

ref

part #

description

quantity

1-1

611002984008C
ref: 1-1
MODEL T TO 61100-298

SWING ARM ASSEMBLY,REAR

€ 148.50

1-2

611002984208C
ref: 1-2
MODEL X

ARM,REAR SWING

€ 148.50

2

0930718002
ref: 2

BUSH

€ 10.50

3

6128029300
ref: 3

SPACER,RR SWGARM PIVOT CTR

€ 9.00

4

6121129301
ref: 4

SHAFT,REAR SWING ARM

€ 11.50

5

0831921128
ref: 5

NUT 12MM

€ 4.00

6

0832211128
ref: 6

WASHER

€ 2.00

7

6125129000
ref: 7

SPACER

€ 0.00

8

6126209200
ref: 8

COVER,SWGARM BUSH DUST SEAL

€ 2.50

9

0923024001
ref: 9

DUST SEAL

€ 0.00

10

0916012005
ref: 10
12.5*24*2.3

WASHER(12.5X24X2.3)

€ 3.00

11-1

6127329901
ref: 11-1
MODEL T

BUFFER,CHAIN TOUCH DEFLECTOR

€ 9.50

11-2

6127329902
ref: 11-2
MODEL X

BUFFER,CHAIN TOUCH DEFENSE

€ 9.50

12

6431128010
ref: 12

TORQUE LINK,REAR

€ 10.00

13

0911108015
ref: 13

BOLT(8X22)

€ 3.00

14

0911108013
ref: 14

BOLT(8X26.5)

€ 3.00

15

0832121068
ref: 15

LOCK WASHER

€ 2.50

16

0914008008
ref: 16

NUT

€ 1.50

17

0832211088
ref: 17

WASHER

€ 2.00

18

0411120158
ref: 18

PIN

€ 1.50

19-1

6134148501
ref: 19-1
MODEL T

GUIDE,CHAIN

€ 10.00

19-2

6134148502
ref: 19-2
MODEL X

GUIDE,CHAIN

€ 10.00

20

0110708128
ref: 20

BOLT 8X12

€ 2.50

21

0832121068
ref: 21

LOCK WASHER

€ 2.50

22

0832221068
ref: 22

WASHER

€ 2.00
