CRANKCASE

TS185ER 1980 (T) (01 02 04 09 15 E17 E18 E21 E22 E24 E25 E26 E30

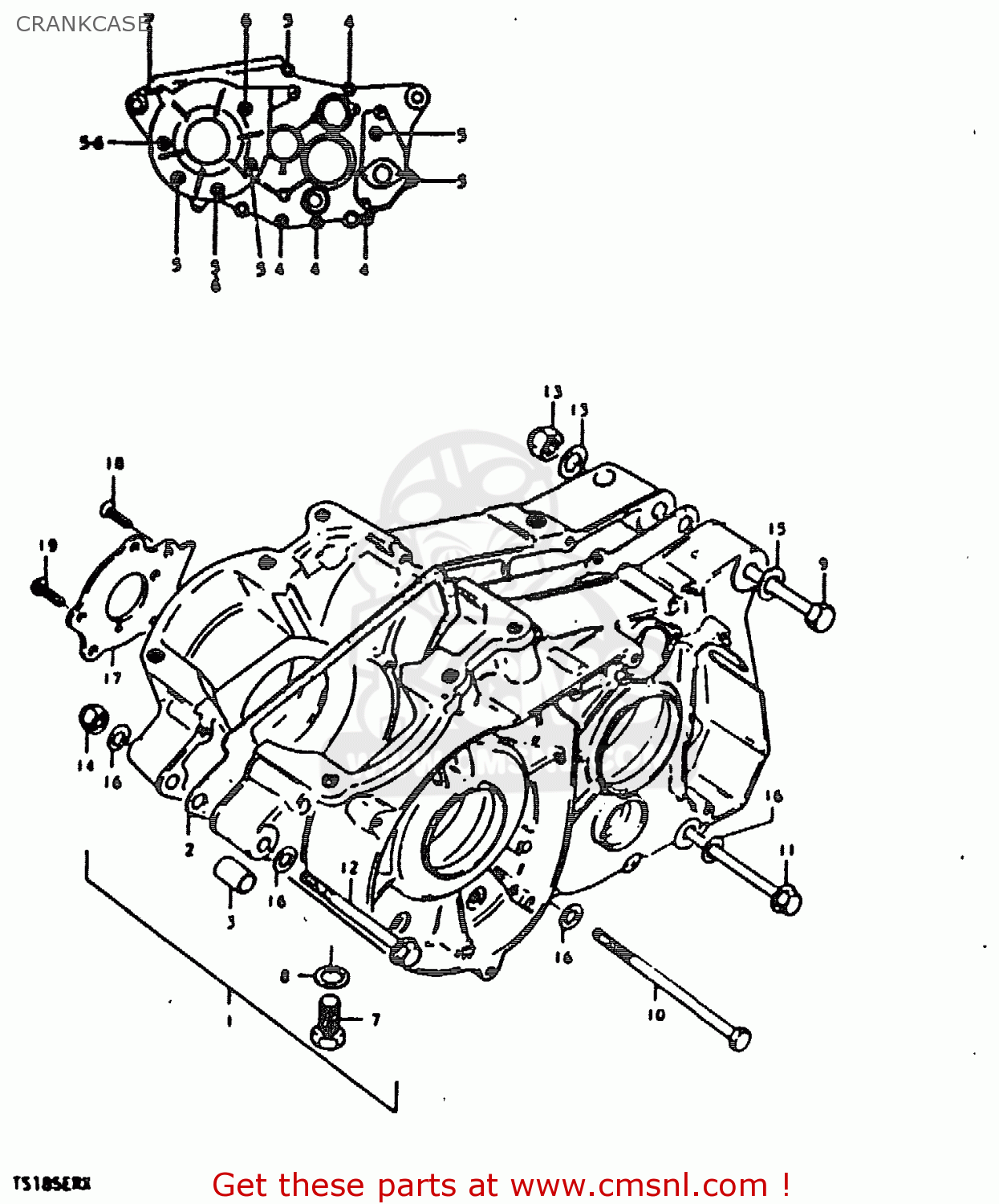

Crankcase diagram TS185ER 1980 (T) (01 02 04 09 15 E17 E18 E21 E22 E24 E25 E26 E30

prices are in EUR

ref

part #

description

quantity

1130029851
ref: 1

CRANKCASE SET

€ 513.50

1148129300
ref: 2

GASKET,CRANKCASE (MCA)

€ 19.00

0920613001
ref: 3

PIN

€ 2.50

0211206658
ref: 4

SCREW 6X65

€ 2.00

0211206458
ref: 5

SCREW (6X45)

€ 2.00

0832211068
ref: 6
MODEL T

WASHER 6MM

€ 2.00

0924714007
ref: 7

PLUG

€ 3.50

0916814004
ref: 8

GASKET(14X19.2X2) (NAS)

€ 2.50

0910010051
ref: 9

BOLT

€ 6.50

0910008142
ref: 10

BOLT(8X145)

€ 4.00

0910308026
ref: 11

BOLT

€ 3.50

0910308009
ref: 12

BOLT

€ 5.00

0915910011
ref: 13

NUT

€ 3.00

0915908020
ref: 14

NUT

€ 2.50

0832211108
ref: 15

WASHER

€ 2.50

0832211088
ref: 16

WASHER

€ 2.00

1252128002
ref: 17

PLATE,OIL RESERVOIR

€ 4.00

0212206128
ref: 18

SCREW

€ 3.00

0211206168
ref: 19

SCREW

€ 2.50
