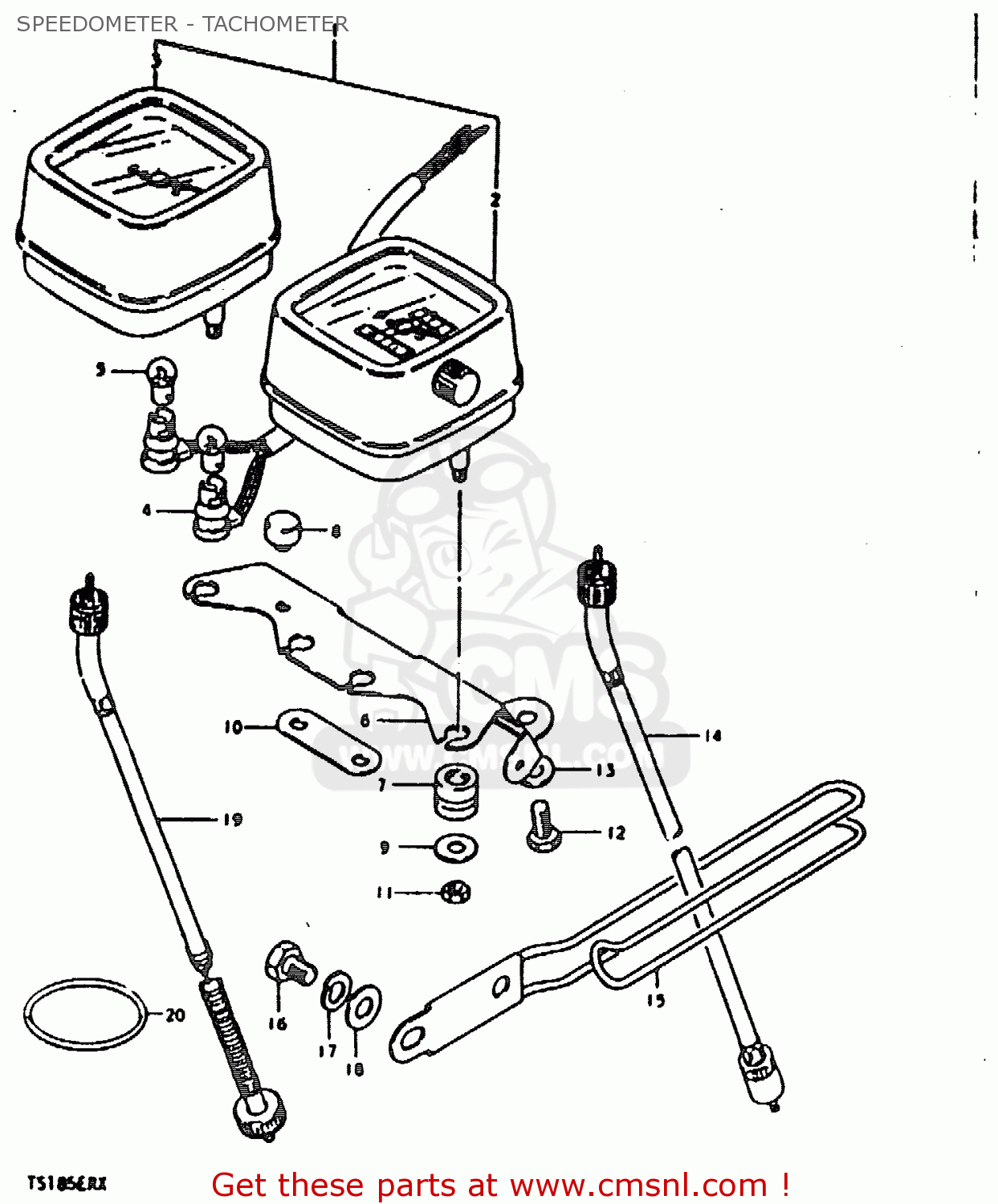

SPEEDOMETER - TACHOMETER - TS185ER 1980 (T) (01 02 04 09 15 E17 E18 E21 E22 E24 E25 E26 E30

ref

part #

description

quantity

1-1

NOTUSED
ref: 1-1

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

1-2

NOTUSED
ref: 1-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

1-3

3410048534
ref: 1-3
MODEL T, TO 34100-48

SPEEDO/TACHOMETER ASSY (MILE/KILO SCALE)

€ 0.00

1-4

3410048535
ref: 1-4
MODEL X

SPEEDO/TACHOMETER ASSY (MILE/KILO SCALE)

€ 0.00

2-1

NOTUSED
ref: 2-1

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

2-2

NOTUSED
ref: 2-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

2-3

3411048531
ref: 2-3
MODEL T, TO 34110-48

SPEEDOMETER (MILE/KILO)

€ 0.00

2-4

3411048532
ref: 2-4
MODEL X

SPEEDOMETER (MILE/KILO)

€ 0.00

3-1

3421048500
ref: 3-1
MODEL T, TO 34210-48

TACHOMETER

€ 286.00

3-2

3421048501
ref: 3-2
MODEL X

TACHOMETER

€ 286.00

4

3417348500
ref: 4

SOCKET

€ 23.50

5

0947106001
ref: 5

BULB(6V1.7W,STANLEY,A61A)

€ 2.50

6

3495048502
ref: 6

BRACKET

€ 25.50

7

3418948500
ref: 7

CUSHION

€ 4.50

8

3495628011
ref: 8

CUSHION,METER

€ 5.50

9

3418130520
ref: 9

WASHER,METER

€ 1.50

10

3418248500
ref: 10

PLATE,CONNECTING

€ 3.00

11

3418548500
ref: 11

NUT

€ 2.50

12

0110706168
ref: 12

BOLT, UPPER

€ 3.00

13

0832221068
ref: 13

WASHER

€ 2.00

14-1

3491048501
ref: 14-1
MODEL T, TO 34910-48

CABLE ASSEMBLY,SPEEDOMETER

€ 34.00

14-2

3491048502
ref: 14-2
MODEL X

CABLE ASSEMBLY,SPEEDOMETER

€ 34.00

15

5862030501
ref: 15

GUIDE,CABLE

€ 16.00

16

0110708128
ref: 16

BOLT 8X12

€ 2.50

17

0832121088
ref: 17

LOCK WASHER

€ 2.00

18

0832211088
ref: 18

WASHER

€ 2.00

19-1

3494029900
ref: 19-1
MODEL T, TO 34940-29

CABLE ASSY, TACHOMETER

€ 39.00

19-2

3494029901
ref: 19-2
MODEL X

CABLE, TACHOMETER

€ 39.00

20

5864241300
ref: 20

O RING,RR BRAKE CABLE

€ 2.50

SPEEDOMETER - TACHOMETER

all assemblies
