REAR COMBINATION LAMP (E22)

TS185ER 1980 (T) (01 02 04 09 15 E17 E18 E21 E22 E24 E25 E26 E30

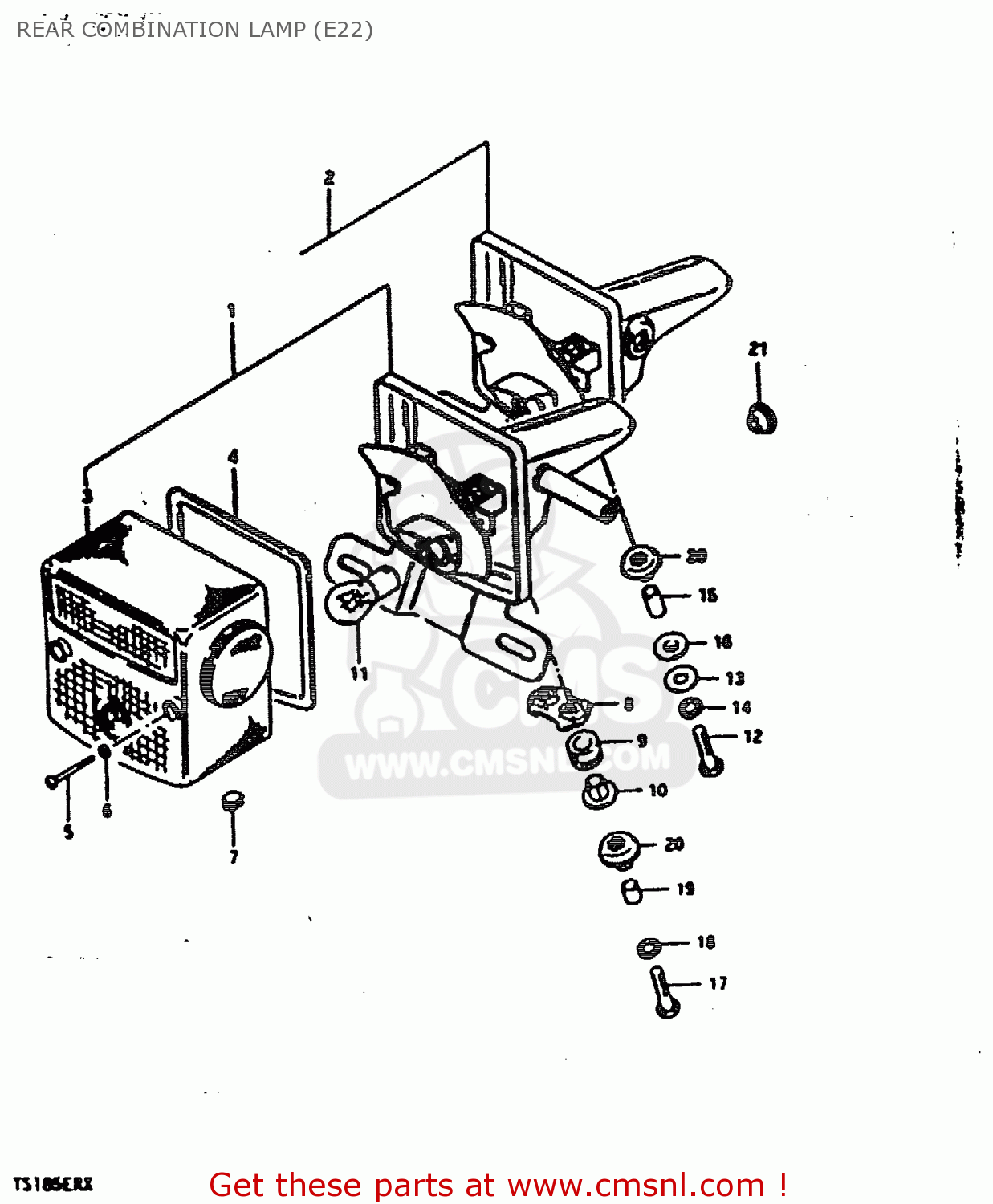

Rear combination lamp (e22) diagram TS185ER 1980 (T) (01 02 04 09 15 E17 E18 E21 E22 E24 E25 E26 E30

prices are in EUR

ref

part #

description

quantity

3571030950999
ref: 1

LAMP ASSY, REAR COMBINATION

€ 0.00

3571030951999
ref: 2

LAMP ASSY, TAIL

€ 0.00

3571230641
ref: 3

LENS

€ 47.00

3571330510
ref: 4

GASKET (NAS)

€ 6.00

0912504002
ref: 5

SCREW (4X55)

€ 1.50

3562743010
ref: 6

GASKET (NAS)

€ 2.00

3572830640
ref: 7

GROMMET,REAR COMBINATION LAMP

€ 3.00

3571630950
ref: 8

PLATE

€ 10.50

3576530950
ref: 9

CUSHION

€ 18.00

3576630950
ref: 10

SPACER

€ 2.00

0947106034
ref: 11
EXECUTED LOCALLY

BULB (6V,21/5W)

€ 0.00

0110706308
ref: 12

BOLT

€ 2.50

0916006027
ref: 13

WASHER (6.5X20X1.2)

€ 2.00

0832121068
ref: 14

LOCK WASHER

€ 2.50

0918008072
ref: 15

SPACER

€ 0.00

0932009003
ref: 16

CUSHION

€ 2.00

0110706408
ref: 17

BOLT 6X40

€ 2.00

0832121068
ref: 18

LOCK WASHER

€ 2.50

0918006006
ref: 19

SPACER (6.8X10X11.5)

€ 3.00

0932009010
ref: 20

CUSHION

€ 2.50

0930807004
ref: 21

GROMMET

€ 2.50
