CARBURETOR

TS250X 1984 (E) (E01 E04 E17 E18 E21 E24)

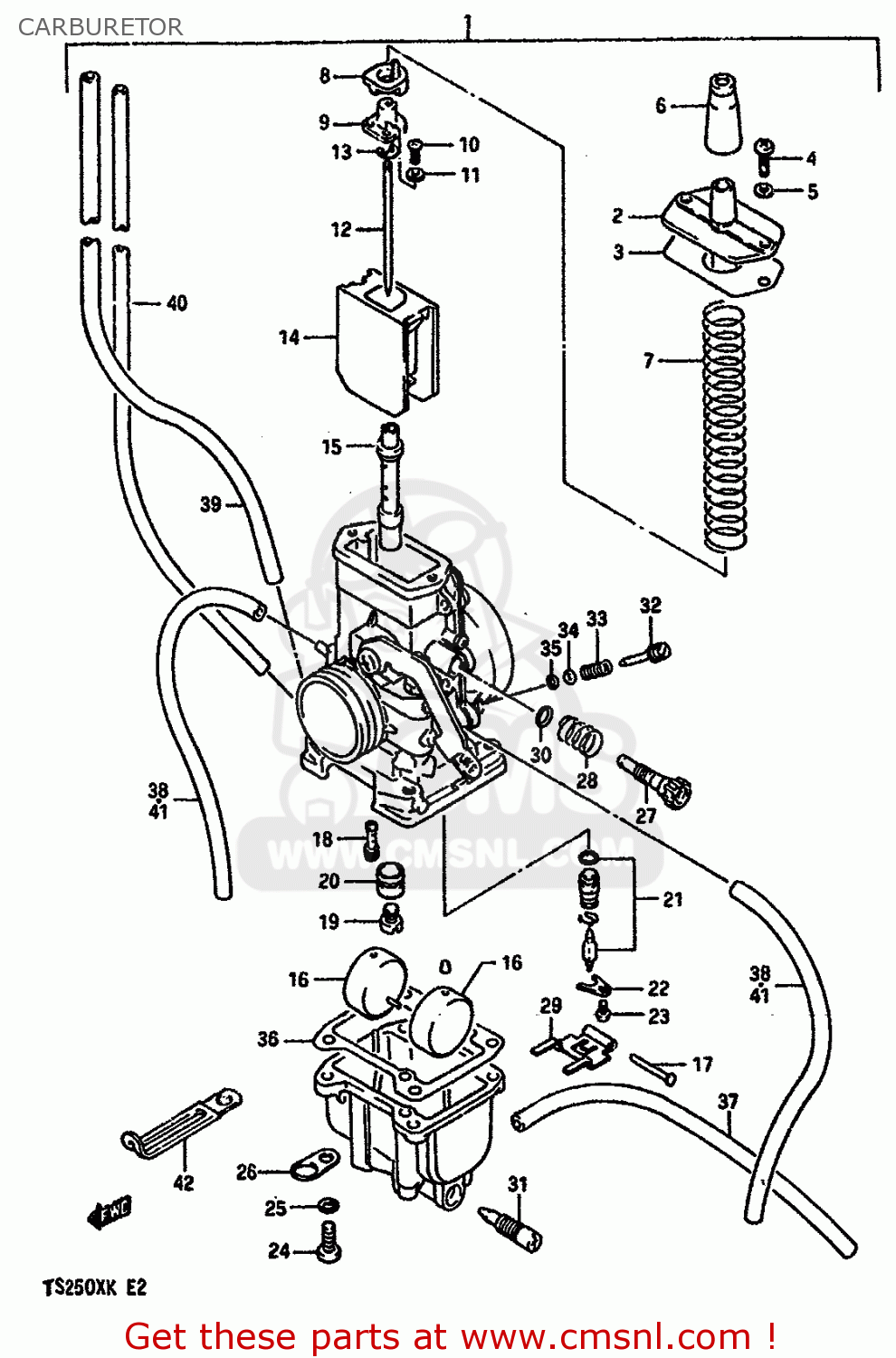

Carburetor diagram TS250X 1984 (E) (E01 E04 E17 E18 E21 E24)

CARBURETOR TS250X 1984 (E) (E01 E04 E17 E18 E21 E24)
CARBURETOR TS250X 1984 (E) (E01 E04 E17 E18 E21 E24)
CARBURETOR TS250X 1984 (E) (E01 E04 E17 E18 E21 E24)
prices are in EUR
ref
part #
description
quantity
1-1
1320013A01
ref: 1-1
MODEL E
CARBURETOR ASSY
€ 335.00
1-2
1320013A20
ref: 1-2
MODEL G,TO 13200-13A
CARBURETOR ASSY
€ 270.00
1-3
1320013A30
ref: 1-3
MODEL H/J/K
CARBURETOR ASSY
€ 270.00
2
1326113A00
ref: 2
CAP,TOP
€ 16.00
3
1326614500
ref: 3
GASKET,TOP (NAS)
1326614500
€ 4.00
4
0211204126
ref: 4
SCREW
€ 1.50
5
0832121046
ref: 5
LOCK WASHER
0832121046
€ 2.00
6
1368133010
ref: 6
CAP,CABLE ADJUSTER
1368133010
€ 8.00
7
1357316700
ref: 7
SPRING
1357316700
€ 6.00
8
1362916700
ref: 8
RING
1362916700
€ 11.50
9
1339816700
ref: 9
JOINT
1339816700
€ 7.00
10
0211203106
ref: 10
SCREW
€ 1.50
11
0832121036
ref: 11
LOCK WASHER
0832121036
€ 1.50
12-1
1338313A00
ref: 12-1
MODEL E
NEELDE,JET (6FJV54-4)
1338313A00
€ 9.50
12-2
1338313A20
ref: 12-2
MODEL G
NEEDLE,JET (KHP24-3)
1338313A20
€ 13.00
12-3
1338313A20
ref: 12-3
MODEL H/J/K
NEEDLE,JET (KHP24-3)
1338313A20
€ 13.00
13
1339410010
ref: 13
CLIP
1339410010
€ 4.50
14
1355113A00
ref: 14
VALVE,PISTON
€ 66.00
15-1
0949400482
ref: 15-1
MODEL E
JET,NEEDLE (P-4)
€ 19.00
15-2
0949400518
ref: 15-2
MODEL G/H/J/K
JET,NEEDLE (O-8)
€ 26.50
16
1325218620
ref: 16
FLOAT
1325218620
€ 27.50
17
1325492311
ref: 17
PIN,FLOAT
1325492311
€ 2.00
18-1
0949265003
ref: 18-1
MODEL E
JET,PILOT (65)
0949265003
€ 7.50
18-2
0949227003
ref: 18-2
MODEL G/H/J/K
JET,PILOT(27.5)
0949227003
€ 12.00
19-1
0949125010
ref: 19-1
MODEL E
JET,MAIN(125)
0949125010
€ 8.50
19-2
0949122016
ref: 19-2
MODEL G/H/J/K
JET,MAIN(110)
0949122016
€ 7.00
20-1
1333113A00
ref: 20-1
MODEL E
RING,MAIN JET FIXING
1333113A00
€ 5.50
20-2
1333123A00
ref: 20-2
MODEL G/H/J/K
RING
€ 4.50
21
1337014300
ref: 21
VALVE ASSEMBLY,NEEDLE
€ 52.50
22
1337339110
ref: 22
PLATE
1337339110
€ 6.50
23
0211204066
ref: 23
SCREW
€ 2.00
24
0211205166
ref: 24
SCREW
€ 2.00
25
0832121056
ref: 25
LOCK WASHER
0832121056
€ 3.00
26
1369313A00
ref: 26
PLATE
1369313A00
€ 3.50
27
1326748700
ref: 27
SCREW,THROTTLE STOP
1326748700
€ 11.50
28
1326848110
ref: 28
SPRING,PILOT
1326848110
€ 11.50
29
1325340010
ref: 29
ARM,FLOAT
1325340010
€ 8.00
30
1327802340
ref: 30
O RING
1327802340
€ 1.50
31
1324702340
ref: 31
FROM 13247-13A00
PLUG,DRAIN
1324702340
€ 5.50
32-1
1326948030
ref: 32-1
MODEL E
SCREW,PILOT AIR
1326948030
€ 10.00
32-2
1326948030
ref: 32-2
MODEL G
SCREW,PILOT AIR
1326948030
€ 10.00
32-3
1326948030
ref: 32-3
MODEL H/J/K
SCREW,PILOT AIR
1326948030
€ 10.00
33
1326848700
ref: 33
SPRING,THROTTLE SCREW
1326848700
€ 3.50
34
1329129900
ref: 34
FROM 13277-44080
WASHER
1329129900
€ 2.00
35
1329529900
ref: 35
O RING,PILOT AIR SCREW
1329529900
€ 4.00
36
1325114300
ref: 36
GASKET,FLOAT CAHMBER (NAS)
1325114300
€ 10.50
37
1368413A10
ref: 37
MODEL E
HOSE (3.5X6.5X150-80)
€ 5.50
38
1368413A10
ref: 38
MODEL E
HOSE (3.5X6.5X150-80)
€ 5.50
39
1368313A00
ref: 39
MODEL E
HOSE
€ 12.50
40
1368418900
ref: 40
MODEL E
HOSE
€ 13.50
41
1368337420
ref: 41
MODEL G/H/J/K
HOSE
€ 5.50
42
0940406402
ref: 42
MODEL E/G/H
CLAMP
€ 2.50
