FRONT BRAKE HOSE

TS250X 1984 (E) (E01 E04 E17 E18 E21 E24)

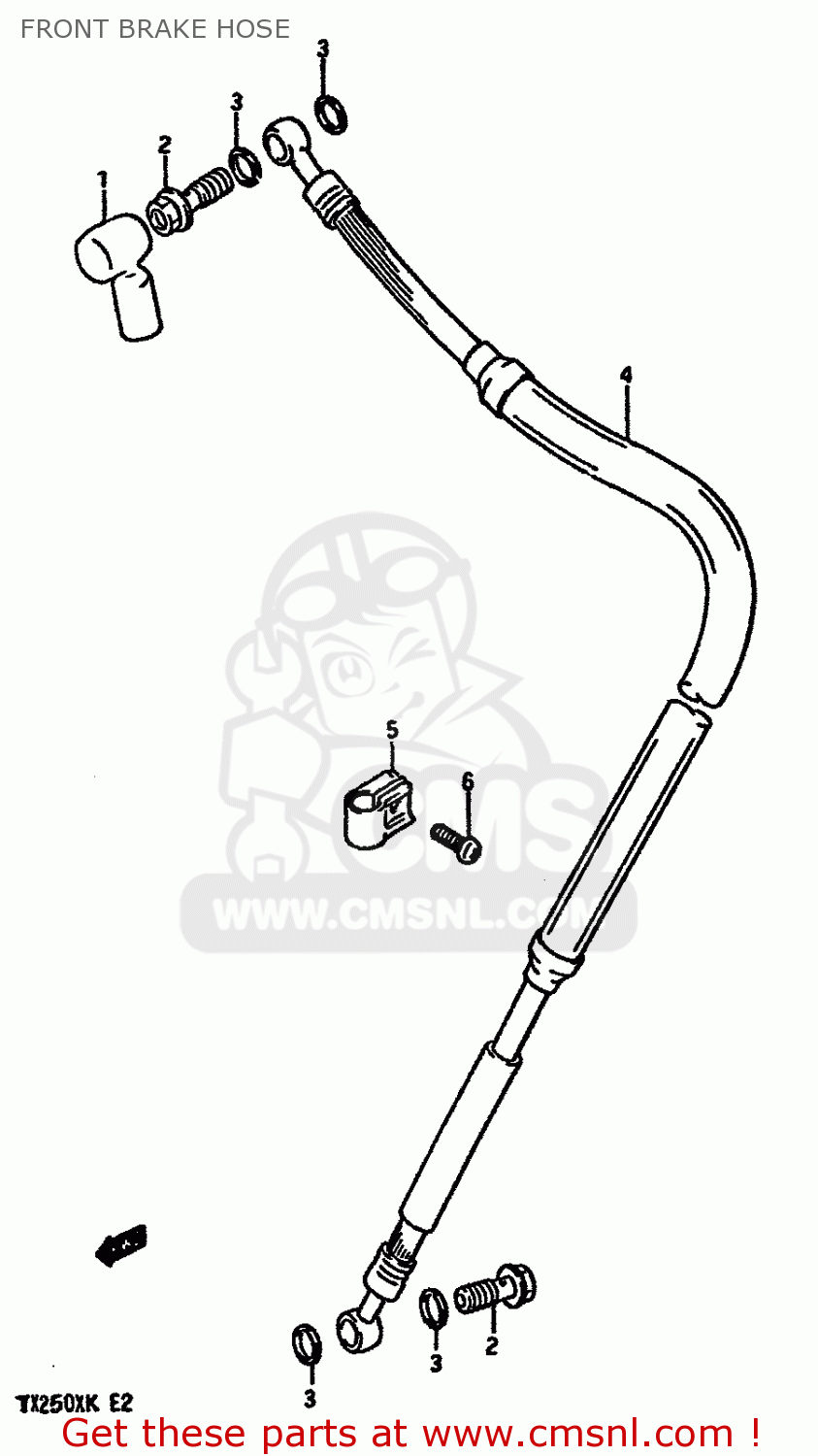

Front brake hose diagram TS250X 1984 (E) (E01 E04 E17 E18 E21 E24)

FRONT BRAKE HOSE TS250X 1984 (E) (E01 E04 E17 E18 E21 E24)

FRONT BRAKE HOSE TS250X 1984 (E) (E01 E04 E17 E18 E21 E24)

prices are in EUR

ref

part #

description

quantity

1

5971104700
ref: 1

BOOT,MASTER CYLINDER

€ 14.50

2

0936010017
ref: 2

BOLT UNION

€ 6.50

3

0916110009
ref: 3

WASHER(10X15X1.5)

€ 2.00

4-1

5948013A03
ref: 4-1
MODEL E

HOSE,FRONT BRAKE

€ 121.00

4-2

5948013A11
ref: 4-2
MODEL G/H/J/K

HOSE,FRONT BRAKE

€ 104.00

5

5862107A10
ref: 5

CLAMP,BRAKE HOSE

€ 3.50

6

0211206167
ref: 6

SCREW

€ 2.50
