FRONT MASTER CYLINDER (MODEL G/H/J/K)

TS250X 1984 (E) (E01 E04 E17 E18 E21 E24)

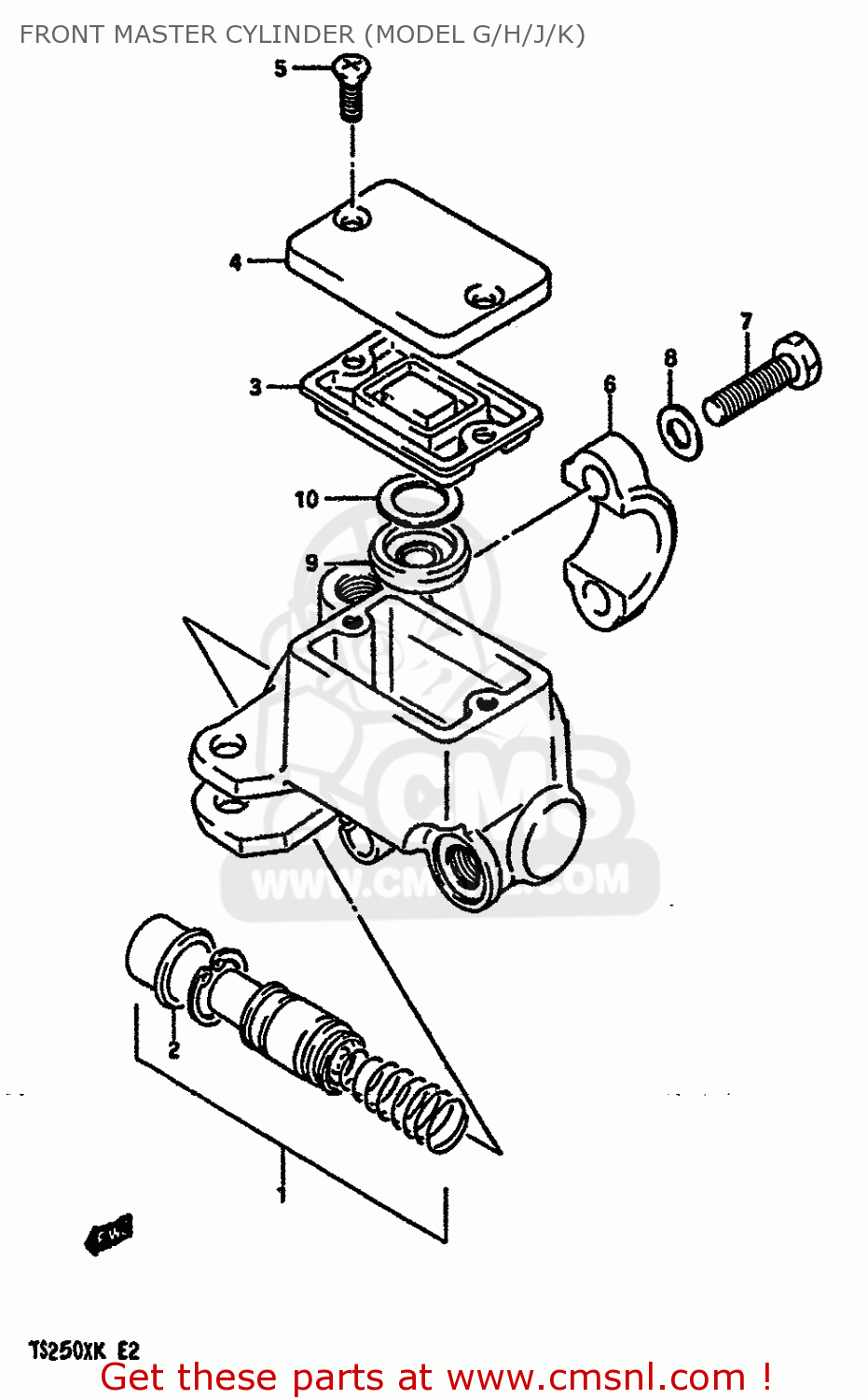

Front master cylinder (model g/h/j/k) diagram TS250X 1984 (E) (E01 E04 E17 E18 E21 E24)

prices are in EUR

ref

part #

description

quantity

5960014A10
ref: 0

CYLINDER ASSY,FRONT MASTER

€ 199.50

5960014A01
ref: 0
E4

CYLINDER ASSEMBLY,FRONT MASTER

€ 206.50

5960013A10
ref: 0
E22,E24

CYLINDER ASSY,FR MASTER

€ 144.00

1-1

5960003810
ref: 1-1

PISTON & CUP SET

€ 32.00

1-2

5960013820
ref: 1-2
E22,E24

PISTON/CUP SET

€ 40.50

5966644300
ref: 2

BOOT

€ 6.00

5966704700
ref: 3

DIAPHRAGM

€ 8.00

4-1

5966904700
ref: 4-1

CAP

€ 9.50

4-2

5966904710
ref: 4-2
E4

CAP

€ 12.00

6968949300
ref: 5

SCREW

€ 1.50

5967136500
ref: 6

HOLDER

€ 10.00

0110706255
ref: 7

BOLT

€ 2.50

0832221064
ref: 8

WASHER

€ 2.00

5974815400
ref: 9

SEPERATOR

€ 7.50

5974915400
ref: 10

PLATE

€ 2.00
