MAGNETO

TS250X 1984 (E) (E01 E04 E17 E18 E21 E24)

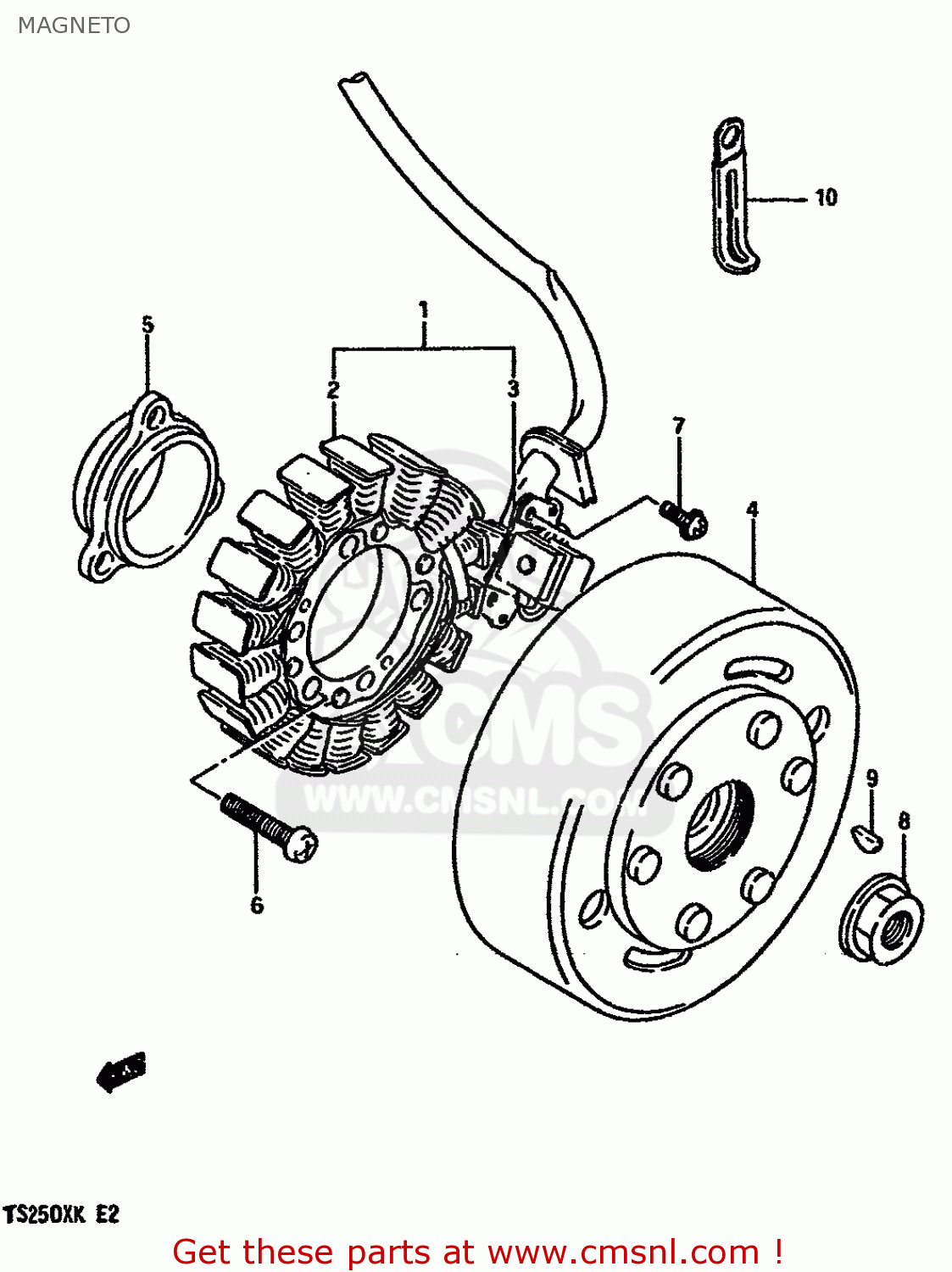

Magneto diagram TS250X 1984 (E) (E01 E04 E17 E18 E21 E24)

MAGNETO TS250X 1984 (E) (E01 E04 E17 E18 E21 E24)
MAGNETO TS250X 1984 (E) (E01 E04 E17 E18 E21 E24)
MAGNETO TS250X 1984 (E) (E01 E04 E17 E18 E21 E24)
prices are in EUR
ref
part #
description
quantity
1
3210113A20
ref: 1
FROM 32101-13A00
STATOR ASSY
€ 502.50
2
3212013A00
ref: 2
MODEL E/G/H
ARMATURE ASSY
€ 299.50
3
3215013A00
ref: 3
SENSOR,TIMING
3215013A00
€ 54.00
4-1
3210213A00
ref: 4-1
MODEL E
ROTOR
€ 366.50
4-2
3210213A10
ref: 4-2
MODEL G/H
ROTOR
€ 379.00
4-3
3210213A20
ref: 4-3
MODEL J/K
ROTOR
3210213A20
€ 379.00
5
3217013A01
ref: 5
SPACER
€ 0.00
6-1
0211206306
ref: 6-1
MODEL E/G/H
SCREW,6X30
0211206306
€ 2.50
6-2
0211206308
ref: 6-2
MODEL J/K
SCREW 6X30
€ 2.50
7-1
0215204126
ref: 7-1
MODEL E/G/H
SCREW
€ 1.50
7-2
0215204128
ref: 7-2
MODEL J/K
SCREW
0215204128
€ 2.00
8-1
0831616126
ref: 8-1
MODEL E/G/H
NUT
€ 2.00
8-2
0831616128
ref: 8-2
MODEL J/K
NUT
€ 2.50
9
0834131049
ref: 9
KEY 4MM
0834131049
€ 3.50
10-1
0940406422
ref: 10-1
MODEL E/G/H
CLAMP
€ 2.50
10-2
0940406424
ref: 10-2
MODEL J/K
CLAMP
€ 2.00
