FUEL TANK (MODEL E/G)

TS250X 1984 (E) (E01 E04 E17 E18 E21 E24)

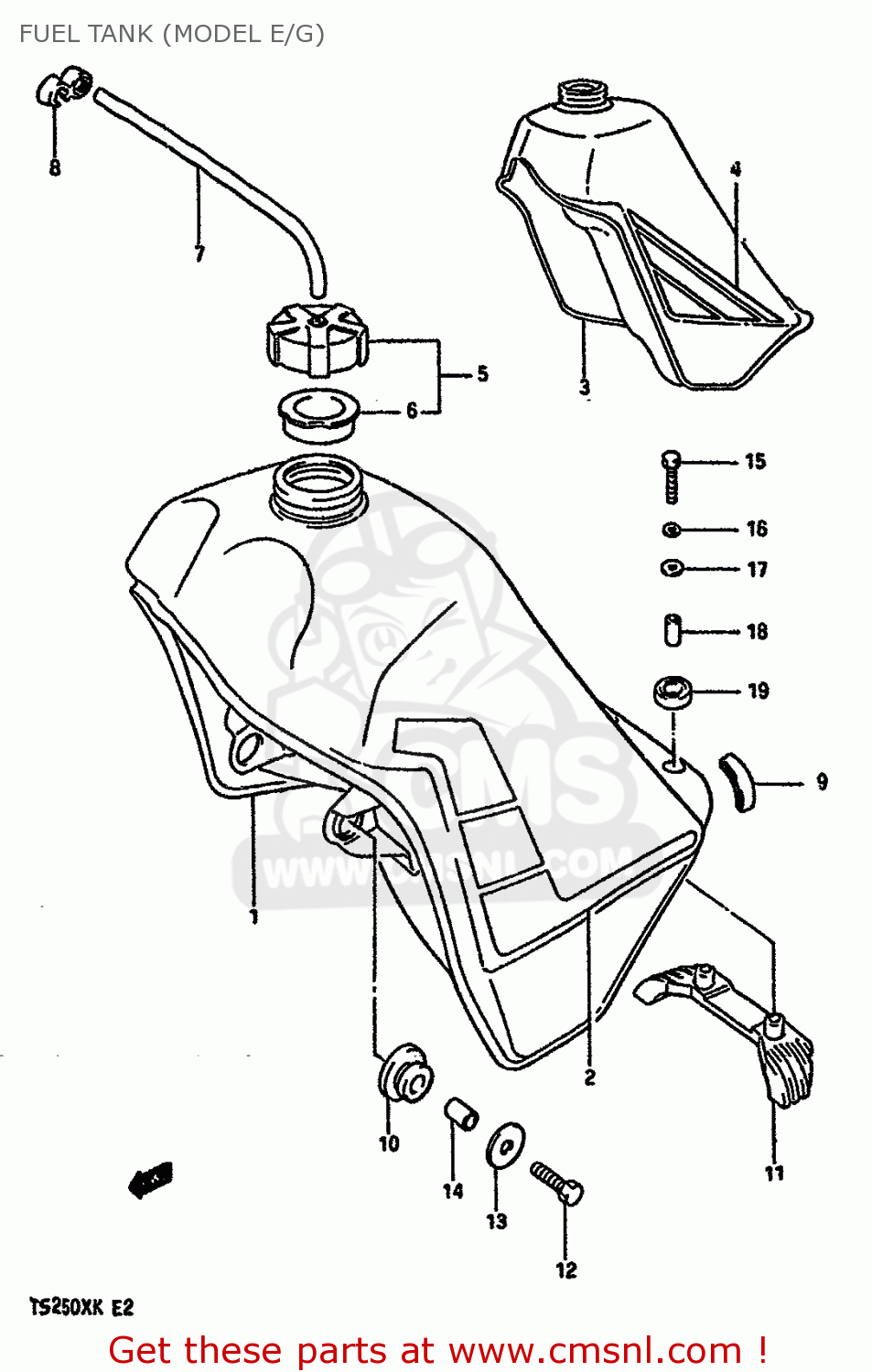

Fuel tank (model e/g) diagram TS250X 1984 (E) (E01 E04 E17 E18 E21 E24)

FUEL TANK (MODEL E/G) TS250X 1984 (E) (E01 E04 E17 E18 E21 E24)
FUEL TANK (MODEL E/G) TS250X 1984 (E) (E01 E04 E17 E18 E21 E24)
FUEL TANK (MODEL E/G) TS250X 1984 (E) (E01 E04 E17 E18 E21 E24)
prices are in EUR
ref
part #
description
quantity
1-1
4410013A00163
ref: 1-1
MODEL E
TANK ASSY,FUEL (YELLOW)
€ 387.50
1-2
4410013A0014C
ref: 1-2
MODEL E
TANK ASSY,FUEL (RED)
€ 387.50
1-3
4410013A0021C
ref: 1-3
MODEL E
TANK ASSY,FUEL (BLACK)
€ 387.50
2-1
6811013A007FW
ref: 2-1
MODEL E,FOR 14C
TAPE SET,FUEL TANK
€ 0.00
2-2
6811013A0067H
ref: 2-2
MODEL E,FOR 163
TAPE SET,FUEL TANK
€ 27.00
2-3
6811013A007FV
ref: 2-3
MODEL E,FOR 21C
TAPE SET,FUEL TANK
€ 0.00
3-1
4410013A10163
ref: 3-1
MODEL G
TANK ASSY,FUEL (YELLOW)
€ 387.50
3-2
4410013A20163
ref: 3-2
MODEL G E22
TANK ASSY,FUEL (YELLOW)
€ 0.00
3-3
4410013A1014C
ref: 3-3
MODEL G
TANK ASSY,FUEL (RED)
€ 387.50
3-4
4410013A2014C
ref: 3-4
MODEL G E22
TANK ASSY,FUEL (RED)
€ 387.50
3-5
4410013A1021C
ref: 3-5
MODEL G
TANK ASSY,FUEL (BLAC K)
€ 387.50
3-6
4410013A2021C
ref: 3-6
MODEL G E22
TANK ASSY,FUEL (BLACK)
€ 387.50
4-1
6811013A1067H
ref: 4-1
MODEL G,FOR 163
TAPE SET,FUEL TANK
€ 0.00
4-2
6811013A107FW
ref: 4-2
MODEL G,FOR 14C
TAPE SET,FUEL TANK
€ 0.00
4-3
6811013A107FV
ref: 4-3
MODEL G,FOR 21C
TAPE SET,FUEL TANK
€ 0.00
5-1
4420005812
ref: 5-1
MODEL E
CAP SET,FUEL TANK
4420005812
€ 19.50
5-2
4420001890
ref: 5-2
MODEL G
CAP SET,FUEL TANK
4420001890
€ 12.50
6
4424805210
ref: 6
GASKET (NAS)
4424805210
€ 4.50
7
0934305129
ref: 7
L:240-170
HOSE
€ 13.00
8
4448632101
ref: 8
CLAMP,FUEL TANK BREATHER HOSE
4448632101
€ 3.50
9-1
6824113A00
ref: 9-1
MODEL E
MOLDING,FUEL TANK
€ 2.50
9-2
6824213A00
ref: 9-2
MODEL G
HOLDING,FUEL TANK
€ 3.00
10
4454113A00
ref: 10
CUSHION,FUEL TANK FRONT
€ 3.50
11
4454213A00
ref: 11
CUSHION,FUEL TANK REAR LOWER
€ 0.00
12
0110708308
ref: 12
BOLT (8X30)
0110708308
€ 2.50
13
0916008001
ref: 13
WASHER
0916008001
€ 2.00
14
0918008102
ref: 14
SPACER (8.6X12X17.5)
0918008102
€ 3.00
15
0110706306
ref: 15
BOLT
0110706306
€ 2.50
16
0832121066
ref: 16
WASHER,LOCK
0832121066
€ 2.00
17
0832221066
ref: 17
WASHER, LOWER
0832221066
€ 2.00
18
0918006072
ref: 18
SPACER
0918006072
€ 2.00
19
0932014013
ref: 19
CUSHION
0932014013
€ 3.00
