HEADLAMP (E1,E24)

TS250X 1984 (E) (E01 E04 E17 E18 E21 E24)

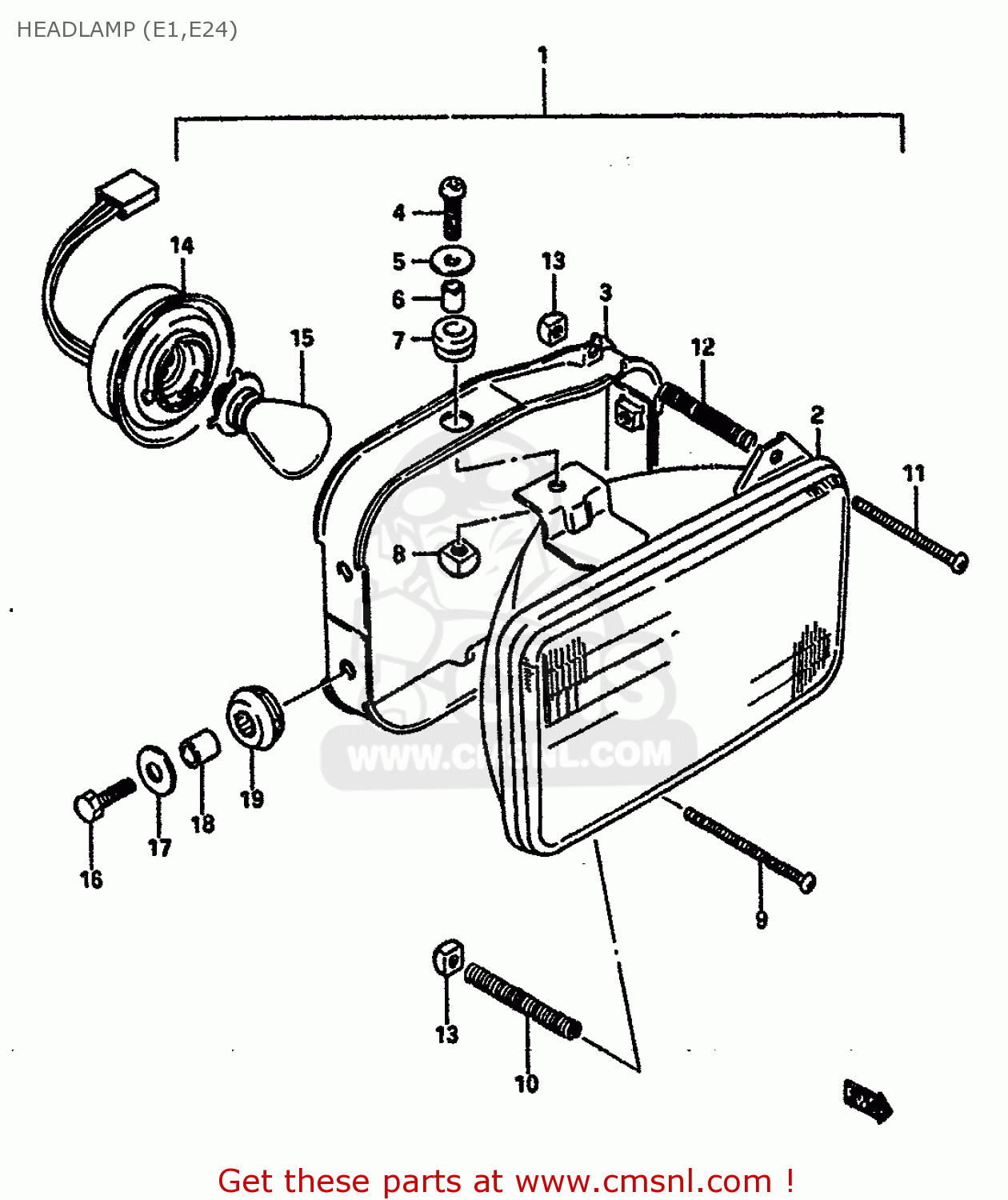

Headlamp (e1,e24) diagram TS250X 1984 (E) (E01 E04 E17 E18 E21 E24)

HEADLAMP (E1,E24) TS250X 1984 (E) (E01 E04 E17 E18 E21 E24)

HEADLAMP (E1,E24) TS250X 1984 (E) (E01 E04 E17 E18 E21 E24)

prices are in EUR

ref

part #

description

quantity

1

3510013A12
ref: 1

HEADLAMP ASSY

€ 0.00

2

3512113A11
ref: 2

UNIT

€ 0.00

3

3514114A00
ref: 3

HOUSING

€ 31.00

4

0912505102
ref: 4

SCREW(5X14)

€ 2.50

5

3513845230
ref: 5

WASHER

€ 2.00

6

3513314A00
ref: 6

SPACER

€ 3.50

7

3513945230
ref: 7

CUSHION

€ 1.50

8

3513545900
ref: 8

NUT

€ 2.50

9

3515149200
ref: 9

SCREW,HEADLAMP ADJUST

€ 4.00

10

3515449200
ref: 10

SPRING

€ 3.50

11

3515131300
ref: 11

SCREW,HEADLAMP ADJUST

€ 3.00

12

3515431300
ref: 12

SPRING

€ 2.00

13

3513545600
ref: 13

NUT

€ 3.00

14

3517101A10
ref: 14

SOCKET,HEAD LAMP

€ 12.50

15

0947112080
ref: 15

BULB(12V45/45W,STANLEY,70281A)

€ 8.00

16

0110706207
ref: 16

BOLT

€ 2.00

17

0916006027
ref: 17

WASHER (6.5X20X1.2)

€ 2.00

18

0918006011
ref: 18

SPACER (6.1X9X9)

€ 2.00

19

0932009018
ref: 19

CUSHION

€ 2.00
