FRONT FORK (MODEL K)

TS250X 1984 (E) (E01 E04 E17 E18 E21 E24)

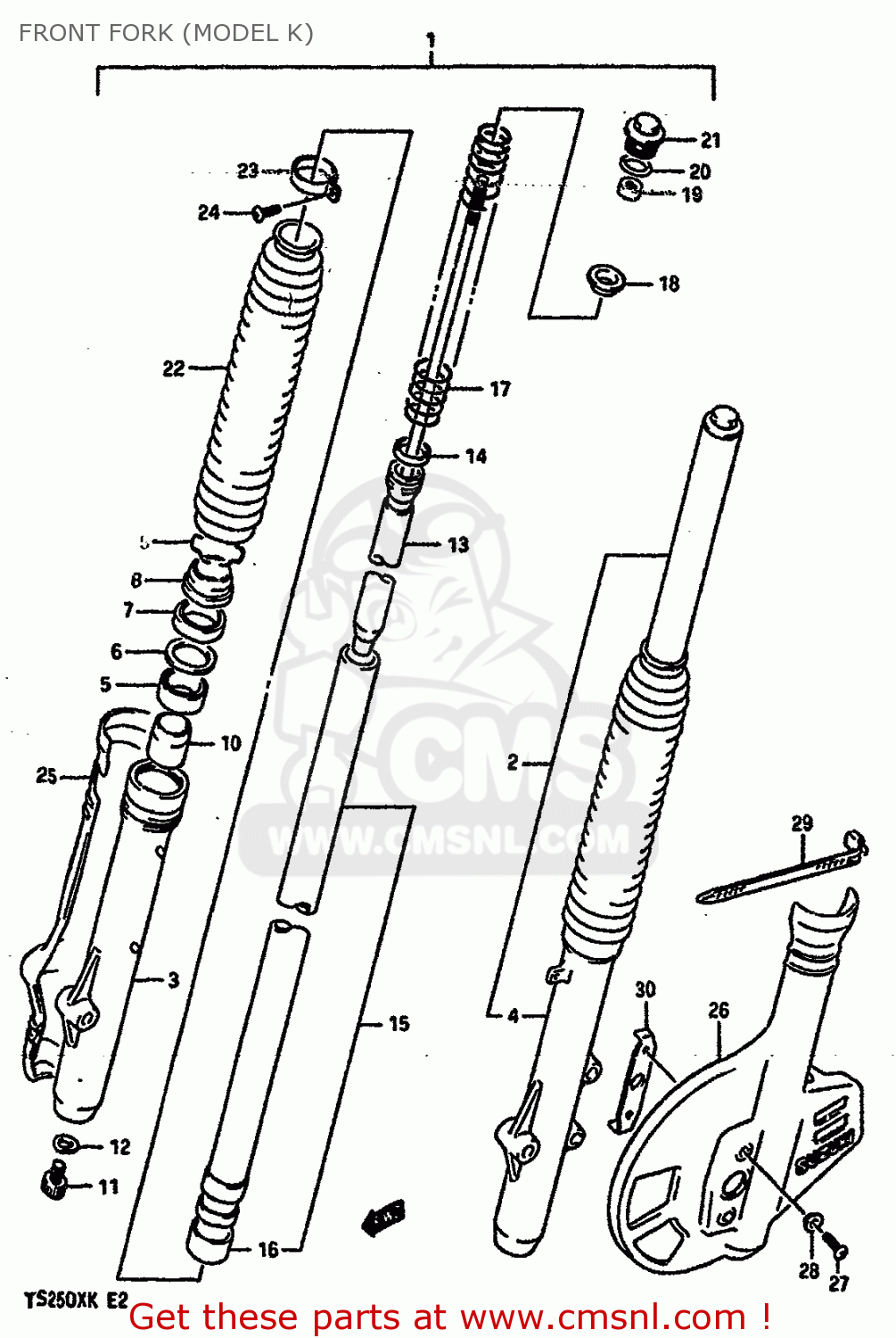

Front fork (model k) diagram TS250X 1984 (E) (E01 E04 E17 E18 E21 E24)

FRONT FORK (MODEL K) TS250X 1984 (E) (E01 E04 E17 E18 E21 E24)
FRONT FORK (MODEL K) TS250X 1984 (E) (E01 E04 E17 E18 E21 E24)
FRONT FORK (MODEL K) TS250X 1984 (E) (E01 E04 E17 E18 E21 E24)
prices are in EUR
ref
part #
description
quantity
1
5110313A70
ref: 1
DAMPER ASSY,RH
€ 0.00
2
5110413A70
ref: 2
DAMPER ASSY,LH
€ 0.00
3
5113113A20
ref: 3
TUBE,OUTER RH
€ 0.00
4
5114113A20
ref: 4
TUBE,OUTER LH
€ 0.00
5
5116713A00
ref: 5
METAL,SLIDE
5116713A00
€ 7.00
6
5115814100
ref: 6
WASHER(40X50X2.3)
5115814100
€ 2.50
7
5115314140
ref: 7
SEAL,OIL
5115314140
€ 12.50
8
5117314140
ref: 8
SEAL,DUST
5117314140
€ 10.00
9
5115640301
ref: 9
RING,STOPPER
5115640301
€ 4.50
10
5119513A60
ref: 10
PIECE,OIL LOCK
€ 0.00
11
5114740300
ref: 11
BOLT,CYLINDER
5114740300
€ 5.50
12
5114840300
ref: 12
GASKET,CYLINDER (NAS)
5114840300
€ 2.50
13
5114613A70
ref: 13
CYLINDER
€ 0.00
14
5119613A10
ref: 14
RING,PISTON
5119613A10
€ 7.00
15
5111013A60
ref: 15
TUBE,INNER
€ 0.00
16
5112113A00
ref: 16
PISTON
5112113A00
€ 12.50
17
5117113A70
ref: 17
SPRING
€ 0.00
18
5117240300
ref: 18
GUIDE
5117240300
€ 5.00
19
5135213A60
ref: 19
NUT,ROD
5135213A60
€ 1.50
20
5111740300
ref: 20
O RING
5111740300
€ 2.50
21
5135113A60
ref: 21
CAP
€ 0.00
22
5157113A0019F
ref: 22
BOOT (BLUE)
5157113A0019F
€ 51.00
23
5157540300
ref: 23
BAND,BOOT
€ 9.00
24
0211204167
ref: 24
SCREW
0211204167
€ 1.00
25-1
5120113A0021C
ref: 25-1
PROTECTOR,FORK RH (BLACK)
€ 38.00
25-2
5120113A0025Y
ref: 25-2
PROTECTOR,FORK RH (YELLOW)
€ 38.00
25-3
5120113A0030H
ref: 25-3
PROTECTOR,FORK RH (WHITE)
€ 38.00
26-1
5120213A0021C
ref: 26-1
PROTECTOR,FORK LH (BLACK)
€ 86.00
26-2
5120213A0025Y
ref: 26-2
PROTECTOR,FORK LH (YELLOW)
€ 86.00
26-3
5120213A0030H
ref: 26-3
PROTECTOR,FORK LH (WHITE)
€ 86.00
27
0214206127
ref: 27
SCREW 6X12
0214206127
€ 1.50
28
0916906028
ref: 28
WASHER
0916906028
€ 2.00
29
0940725403
ref: 29
CLAMP
0940725403
€ 4.00
30
5477013A00
ref: 30
PLATE,PROTECTOR LH
€ 6.00
