SEAT
TS250X 1984 (E) (E01 E04 E17 E18 E21 E24)

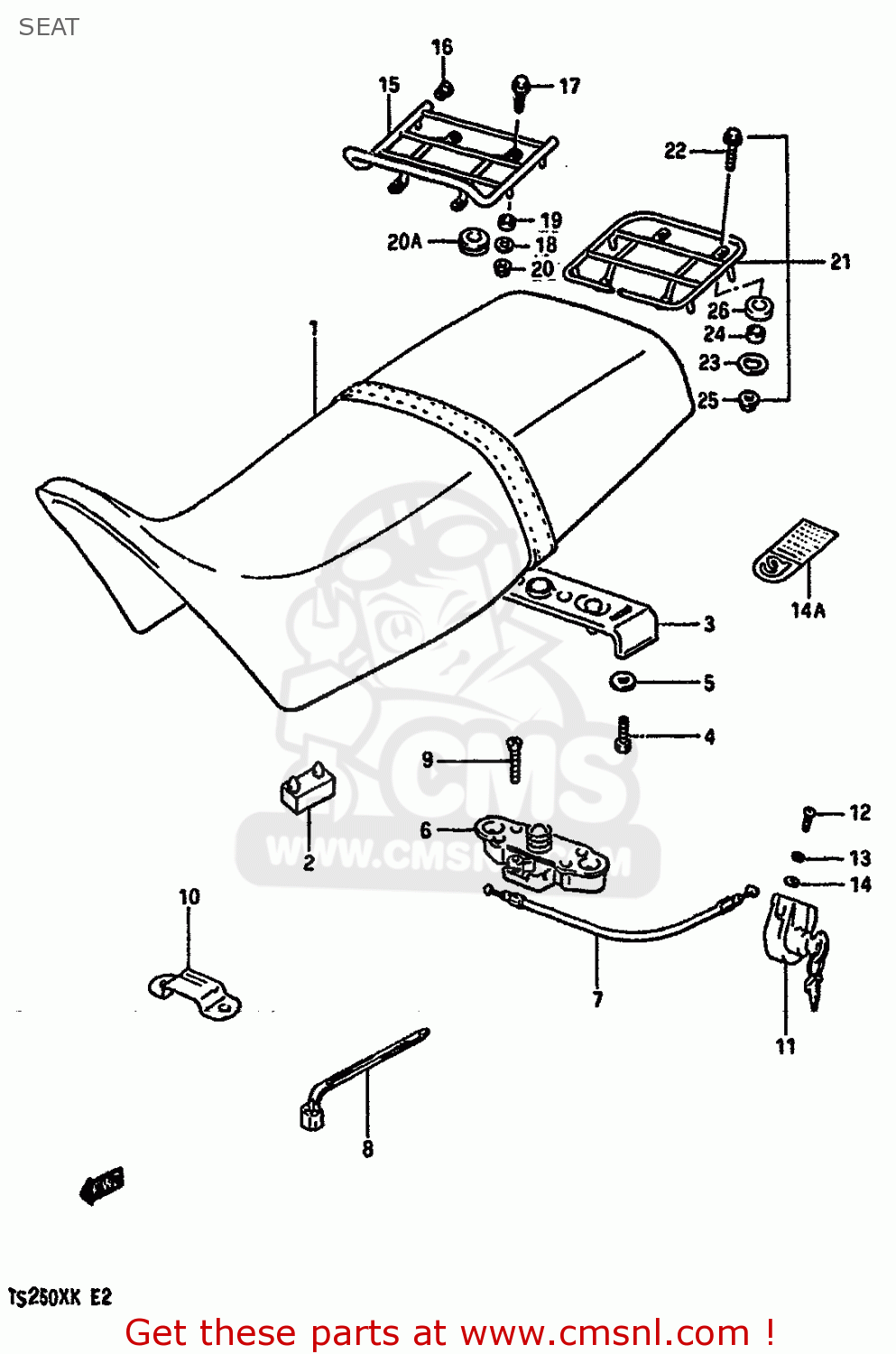

Seat diagram TS250X 1984 (E) (E01 E04 E17 E18 E21 E24)
SEAT TS250X 1984 (E) (E01 E04 E17 E18 E21 E24)
×
prices are in EUR
ref
part #
description
quantity
1-1
4510013A1058D
ref: 1-1
MODEL E/G
SEAT ASSY (BLUE)
€ 223.00
1-2
4510013A904UZ
ref: 1-2
MODEL H
SEAT ASSY (BLUE)
€ 223.00
1-3
4510036B404UZ
ref: 1-3
MODEL J/K
SEAT ASSY (BLUE)
€ 223.00
1-4
4510013A2058D
ref: 1-4
MODEL E/G E17,E18
SEAT ASSY (BLUE)
€ 223.00
1-5
4510036B104UZ
ref: 1-5
MODEL H E16,E17
SEAT ASSY (BLUE)
€ 223.00
1-6
4510036B204UZ
ref: 1-6
MODEL J/K E16,E17
SEAT ASSY (BLUE)
€ 223.00
1-7
4510013A30580
ref: 1-7
MODEL G E22
SEAT ASSY (BLUE)
€ 0.00
1-8
4510036B004UZ
ref: 1-8
MODEL H E22
SEAT ASSY (BLUE)
€ 0.00
1-9
4510036B304UZ
ref: 1-9
MODEL J/K E22
SEAT ASSY (BLUE)
€ 223.00
2
0932108006
ref: 2
CUSHION
€ 3.00
3
4521013A00
ref: 3
STRIKER,SEAT LOCK
€ 0.00
4
0110706206
ref: 4
BOLT,M6X1X20
€ 2.00
5
0832121066
ref: 5
WASHER,LOCK
€ 2.00
6
4522013601
ref: 6
LOCK ASSY,SEAT STRIKER
€ 47.00
7-1
4528013A00
ref: 7-1
MODEL E
CABLE,SEAT LOCK
€ 11.00
7-2
4528013A01
ref: 7-2
MODEL G/H/J/K
CABLE,SEAT LOCK
€ 11.00
8
0940711401
ref: 8
MODEL E
CLAMP(L:95)
€ 2.50
9
0211206306
ref: 9
SCREW,6X30
€ 2.50
10
4511913A00
ref: 10
PLATE,SEAT FR HOOK
€ 4.50
11
9570033401KEY
ref: 11
LOCK ASSY,SEAT
€ 45.00
12
0211205105
ref: 12
SCREW
€ 2.00
13
0832121055
ref: 13
WASHER,LOCK
€ 3.00
14
0832221035
ref: 14
WASHER
€ 1.50
14A
1196782000
ref: 14A
E2
LABEL,ASBESTOS WARNING
€ 2.00
15
4621013A00
ref: 15
E22
HANDLE,PILLION RIDER
€ 0.00
16
0925013001
ref: 16
E22
PLUG
€ 3.00
17
0151706205
ref: 17
E22
BOLT
€ 2.50
18
0916006056
ref: 18
E22
WASHER(6.5X18X1)
€ 2.00
19
4635613A00
ref: 19
E22
SPACER
€ 0.00
20
0831931067
ref: 20
E22
NUT
€ 2.50
20A
0932010036
ref: 20A
E22
CUSHION
€ 2.50
21
4630013830
ref: 21
OPT
CARRIER SET,SUPPORT
€ 50.00
22
0151706205
ref: 22
OPT
BOLT
€ 2.50
23
0916006056
ref: 23
OPT
WASHER(6.5X18X1)
€ 2.00
24
4635613A00
ref: 24
OPT
SPACER
€ 0.00
25
0831616064
ref: 25
OPT
NUT 6MM
€ 2.50
26
0932010036
ref: 26
OPT
CUSHION
€ 2.50
