CRANKCASE (MODEL G/H/J/K/)

TS250X 1984 (E) (E01 E04 E17 E18 E21 E24)

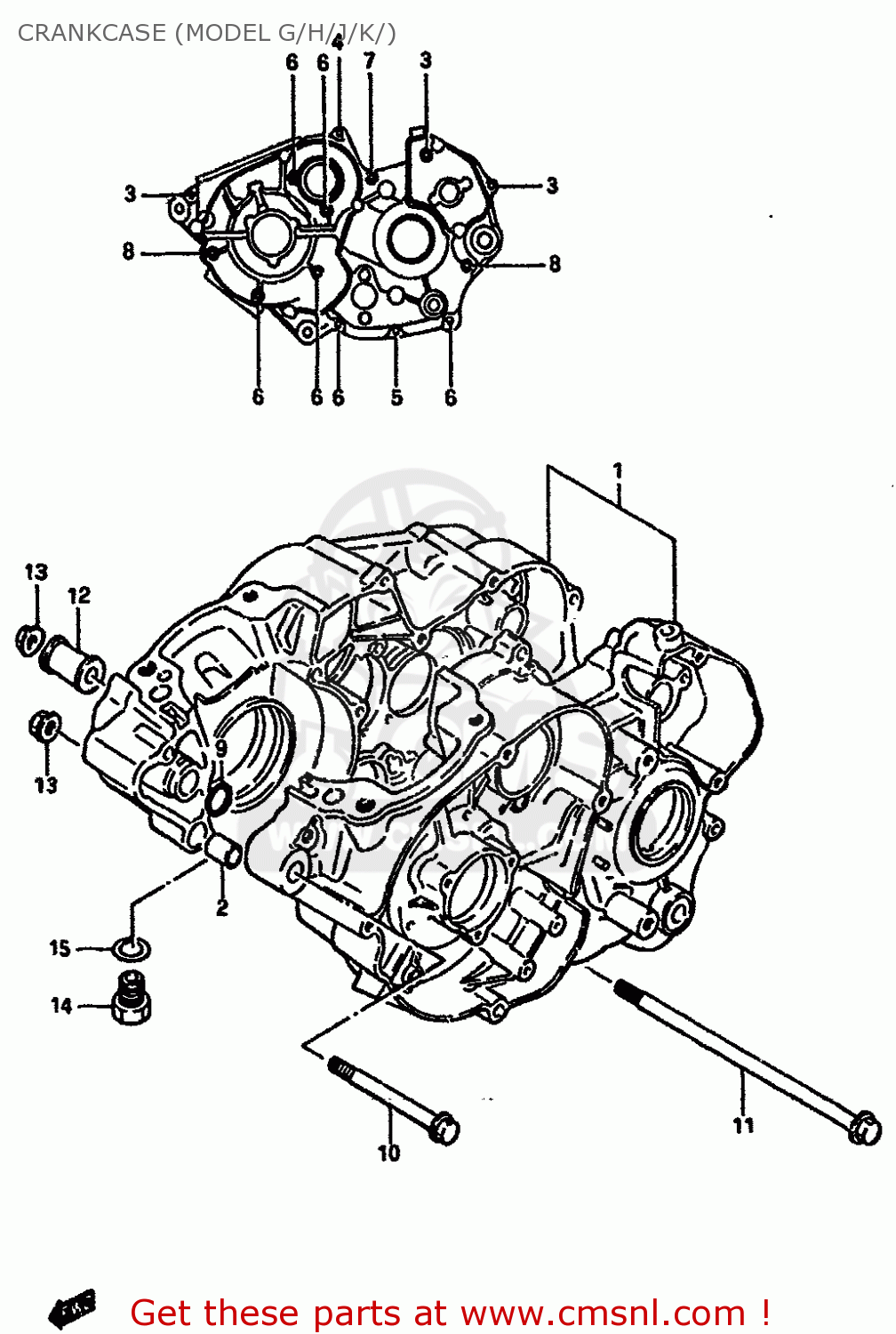

Crankcase (model g/h/j/k/) diagram TS250X 1984 (E) (E01 E04 E17 E18 E21 E24)

prices are in EUR

ref

part #

description

quantity

1130013870
ref: 1

CRANKCASE SET

€ 723.50

0920613015
ref: 2

PIN(8X13X22)

€ 4.00

0211206305
ref: 3

SCREW

€ 2.50

0211206355
ref: 4

SCREW

€ 2.50

0211206404
ref: 5

SCREW

€ 2.00

0211206504
ref: 6

SCREW

€ 2.00

0211206605
ref: 7

SCREW (6*60)

€ 2.50

0211206654
ref: 8

SCREW

€ 2.00

0928014004
ref: 9

O RING(D:1.9,ID:13.8)

€ 1.50

0910308070
ref: 10

BOLT(8X100)

€ 5.00

0910308175
ref: 11

BOLT(8X215)

€ 8.50

1161013A00
ref: 12

SPACER,ENGINE MOUNTING (L:32)

€ 7.50

0831931087
ref: 13

NUT

€ 2.50

0924714001
ref: 14

PLUG

€ 5.00

0916814004
ref: 15

GASKET(14X19.2X2) (NAS)

€ 2.50
