KICK STARTER

TS250X 1984 (E) (E01 E04 E17 E18 E21 E24)

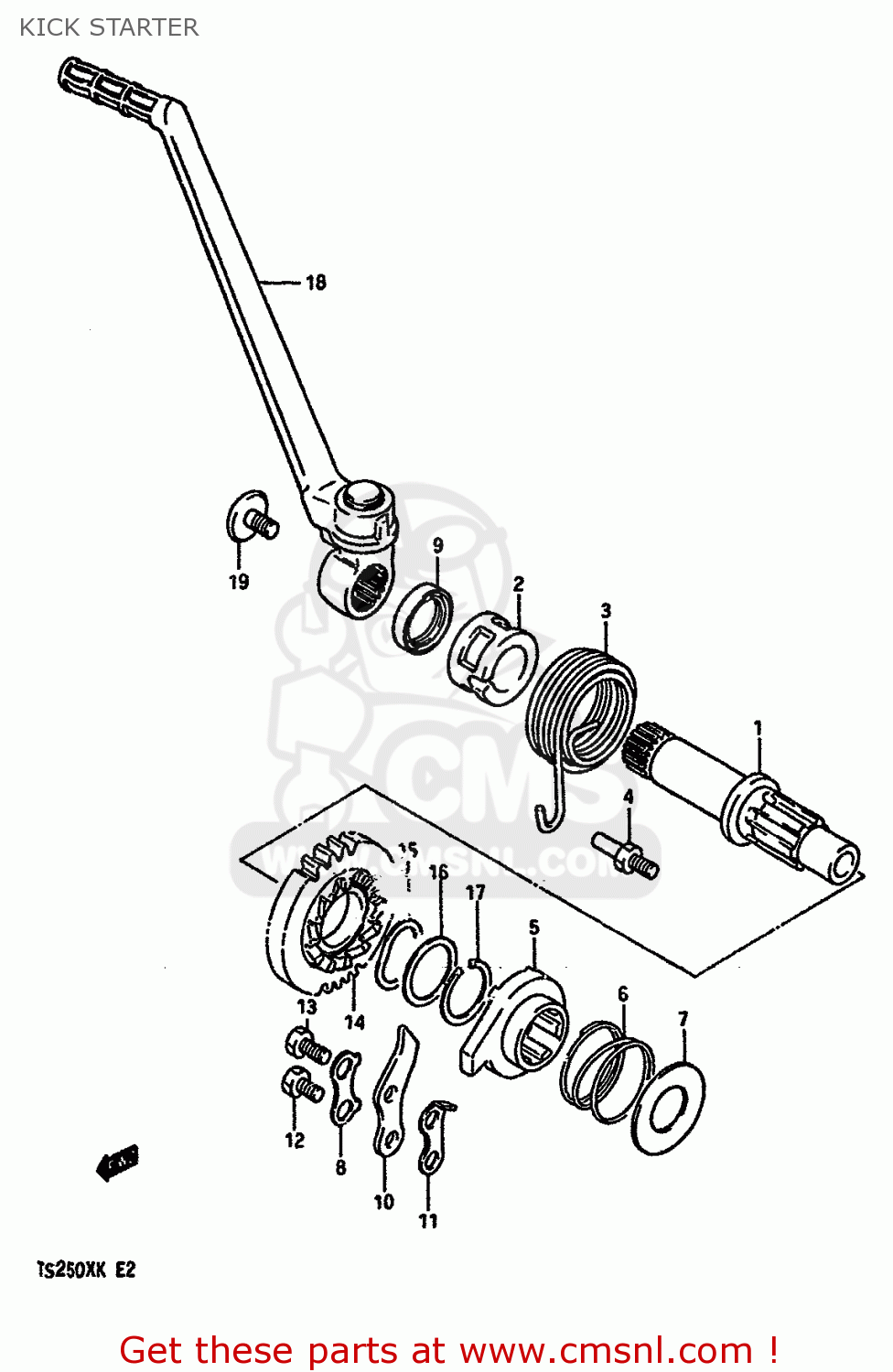

Kick starter diagram TS250X 1984 (E) (E01 E04 E17 E18 E21 E24)

KICK STARTER TS250X 1984 (E) (E01 E04 E17 E18 E21 E24)

KICK STARTER TS250X 1984 (E) (E01 E04 E17 E18 E21 E24)

prices are in EUR

ref

part #

description

quantity

1

2621113A00
ref: 1

SHAFT,KICK STARTER

€ 61.50

2

2622113A01
ref: 2

GUIDE,KICK STARTER SPRING

€ 6.50

3

0944848006
ref: 3

SPRING

€ 9.50

4

2623720400
ref: 4

BOLT,KICK START SHAFT SPR HOOK

€ 5.00

5

2623122A10
ref: 5

STARTER,KICK

€ 47.50

6

0944032002
ref: 6

SPRING

€ 2.00

7

0821117342
ref: 7

WASHER

€ 3.00

8

0916906003
ref: 8

WASHER

€ 1.50

9

0928320031
ref: 9

SEAL,OIL(20X27X5)

€ 5.00

10

2623213A00
ref: 10

GUIDE,KICK STARTER

€ 9.00

11

2623340200
ref: 11

STOPPER,KICK STARTER

€ 2.50

12

0110706107
ref: 12

BOLT

€ 2.00

13

0110706127
ref: 13

BOLT

€ 2.00

14

2624013A00
ref: 14

GEAR

€ 71.50

15

0916422003
ref: 15

WASHER

€ 4.00

16

0822122286
ref: 16

THRUST WASHER

€ 2.50

17

0938022006
ref: 17

CIRCLIP

€ 3.00

18

2630013A10
ref: 18

LEVER ASSY,KICK STARTER STARTER

€ 298.00

19

0910608050
ref: 19

BOLT 8X14

€ 7.00
