CLUTCH
TS250X 1984 (E) (E01 E04 E17 E18 E21 E24)

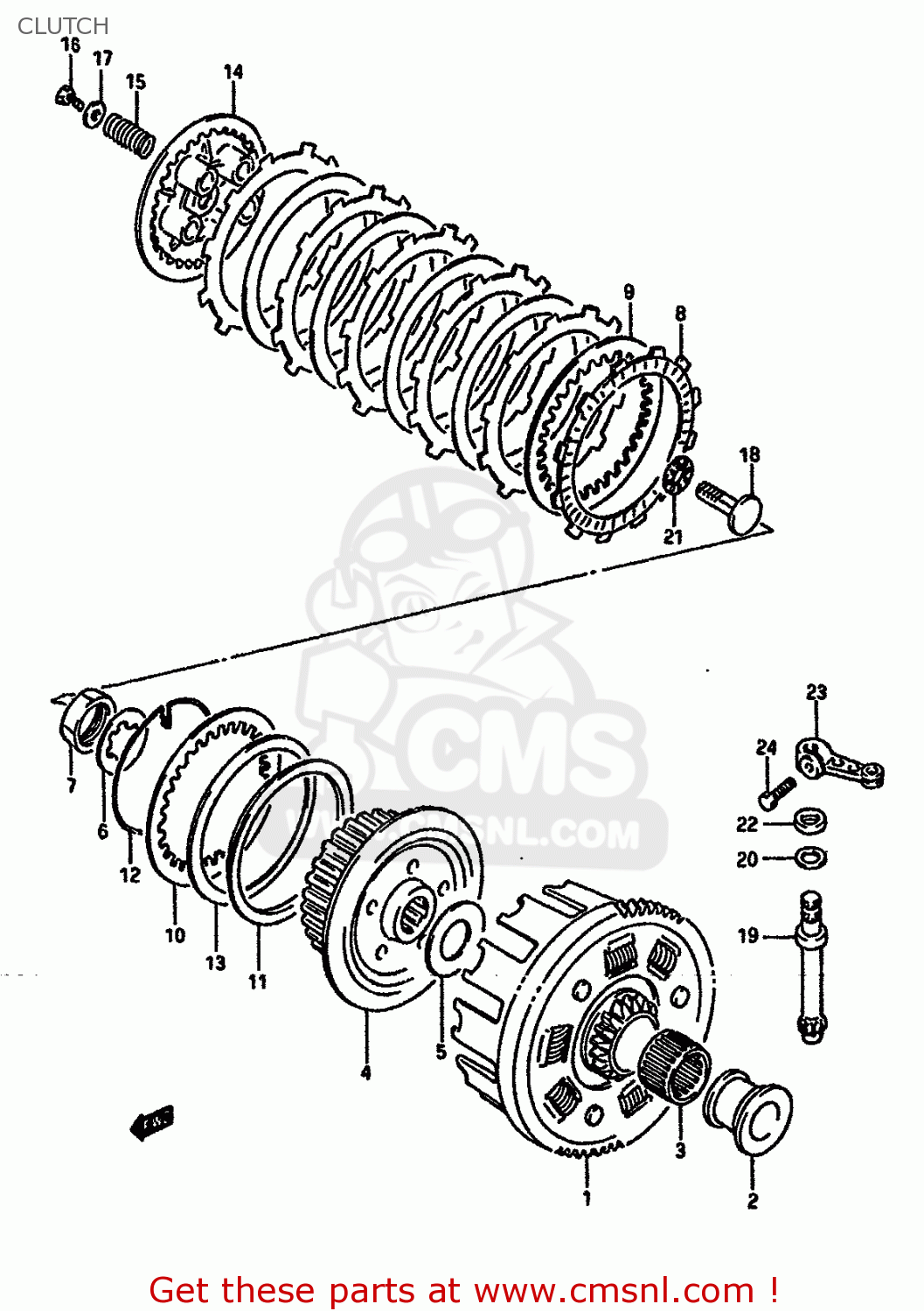

Clutch diagram TS250X 1984 (E) (E01 E04 E17 E18 E21 E24)
CLUTCH TS250X 1984 (E) (E01 E04 E17 E18 E21 E24)
×
prices are in EUR
ref
part #
description
quantity
1
2120013A04
ref: 1
NT:65/18
GEAR,PRIMARY DRIVEN
€ 248.00
2
2125114601
ref: 2
SPACER
€ 34.50
3
0926325044
ref: 3
BEARING(25X30X21.8)
€ 26.50
4
2141113A01
ref: 4
HUB,CLUTCH SLEEVE
€ 64.50
5
0916020054
ref: 5
WASHER(20X35X2)
€ 0.00
6
0916720006
ref: 6
WASHER,LOCK
€ 3.00
7
0914020002
ref: 7
NUT (20MM)
€ 3.50
8
2144113A00
ref: 8
PLATE,CLUTCH DRIVE (NAS)
€ 8.50
9
2145128000
ref: 9
PLATE,CLUTCH DRIVEN (NAS)
€ 4.50
10
2145136200
ref: 10
PLATE,CLUTCH DRIVEN(T:2.0) (NAS)
€ 5.00
11
2147136200
ref: 11
SEAT,WAVE WASHER
€ 43.50
12
2148139301
ref: 12
RING,STOPPER
€ 5.00
13
0916498001
ref: 13
WASHER
€ 8.50
14
2146204A00
ref: 14
DISC,CLUTCH PRESSURE
€ 48.00
15
0944015020
ref: 15
SPRING
€ 4.00
16
0910005002
ref: 16
BOLT(5X16)
€ 2.00
17
0916005017
ref: 17
WASHER (5.5X16X1.2)
€ 2.50
18
2316513A00
ref: 18
RACK,CLUTCH RELEASE
€ 21.00
19
2326113A01
ref: 19
PINION,CLUTCH RELEASE
€ 21.00
20
0916012035
ref: 20
WASHER (12X17X1)
€ 2.00
21
0926310002
ref: 21
BEARING(10X22X2.8)
€ 8.50
22
0928510004
ref: 22
SEAL,OIL(10X17X5)
€ 3.50
23
2327114101
ref: 23
ARM,CLUTCH RELEASE
€ 34.50
24
0110706167
ref: 24
BOLT
€ 3.00
