FRAME (MODEL G/H/J/K)

TS250X 1984 (E) (E01 E04 E17 E18 E21 E24)

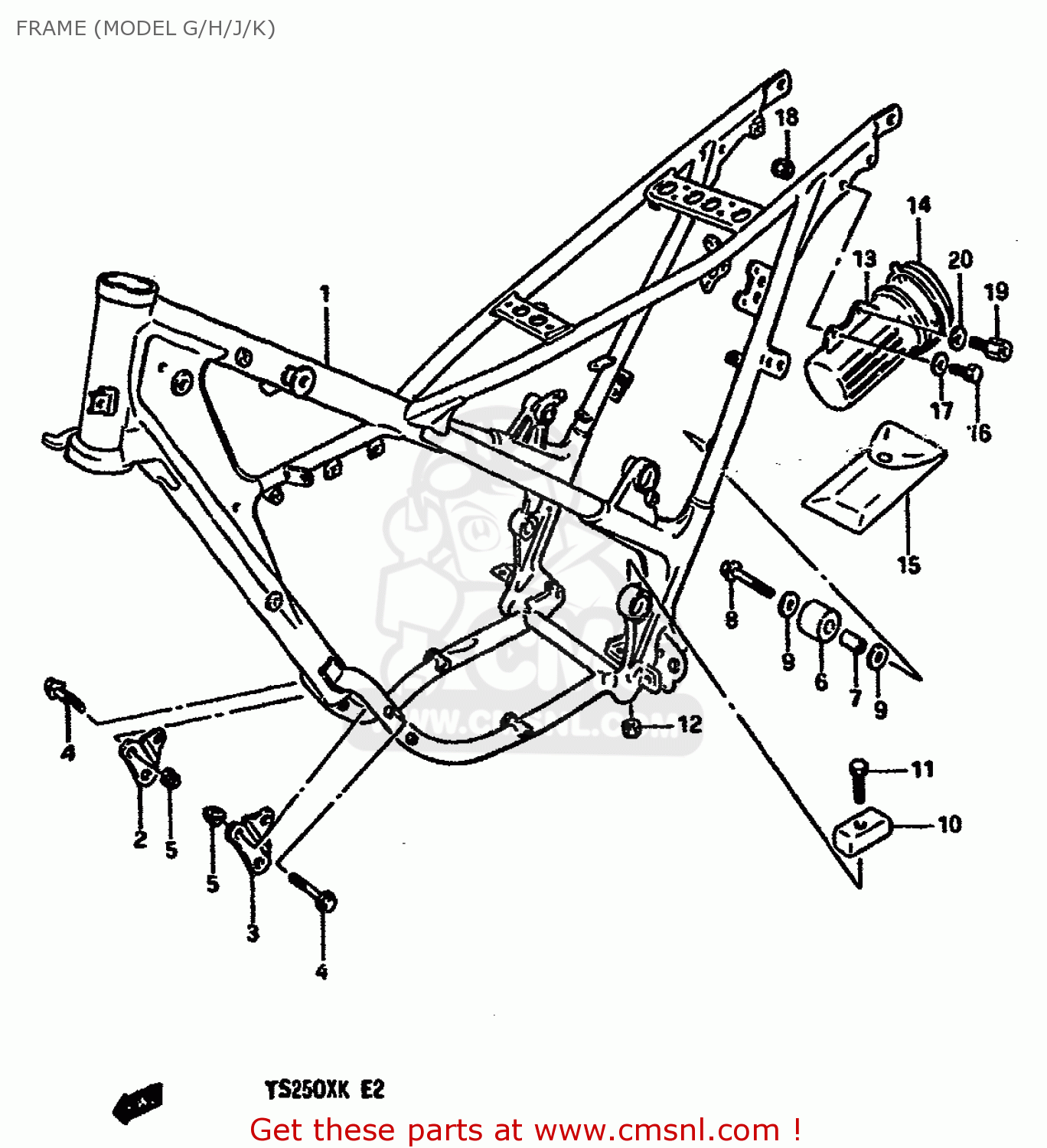

Frame (model g/h/j/k) diagram TS250X 1984 (E) (E01 E04 E17 E18 E21 E24)

FRAME (MODEL G/H/J/K) TS250X 1984 (E) (E01 E04 E17 E18 E21 E24)
FRAME (MODEL G/H/J/K) TS250X 1984 (E) (E01 E04 E17 E18 E21 E24)
FRAME (MODEL G/H/J/K) TS250X 1984 (E) (E01 E04 E17 E18 E21 E24)
prices are in EUR
ref
part #
description
quantity
1-1
4110013A3119F
ref: 1-1
FOR 21C,163,14L,25Y,
FRAME (BLUE)
€ 866.50
1-2
4110013A31019
ref: 1-2
MODEL G FOR 14C
FRAME (BLACK)
€ 0.00
1-3
4110013A4119F
ref: 1-3
MODEL G E17,FOR 21C,
FRAME (BLUE)
€ 0.00
1-4
4110013A41019
ref: 1-4
MODEL G E17,FOR 14C
FRAME (BLACK)
€ 0.00
1-5
4110013A5119F
ref: 1-5
E2,E18,FOR 21C,163,1
FRAME (BLUE)
€ 0.00
1-6
4110013A51019
ref: 1-6
MODEL G E2,E18,FOR 1
FRAME (BLACK)
€ 0.00
1-7
4110013A6019F
ref: 1-7
MODEL G E22 FOR 21C,
FRAME (BLUE)
€ 0.00
1-8
4110013A60019
ref: 1-8
MODEL G E22 FOR 14C~
FRAME (BLACK)
€ 0.00
1-9
4110013A7019F
ref: 1-9
MODEL G E22 FOR 21C,
FRAME (BLUE)
€ 0.00
1-10
4110013A70019
ref: 1-10
MODEL G E22 FOR 14C
FRAEM (BLACK)
€ 0.00
1-11
4110013A7019F
ref: 1-11
MODEL H/J E15,E16,E1
FRAME (BLUE)
€ 0.00
2
4199113A10126
ref: 2
PLATE,MOUNT RH (SILVER)
4199113A10126
€ 17.00
3
4199213A10126
ref: 3
PLATE,MOUNT LH (SILVER)
4199213A10126
€ 17.00
4
0151708508
ref: 4
BOLT
0151708508
€ 3.50
5
0831931087
ref: 5
NUT
0831931087
€ 2.50
6
4391114200
ref: 6
ROLLER,CHAIN LENGTH CONTROL
4391114200
€ 18.50
7
4391340400
ref: 7
SPACER,CHAIN LENGTH ROLLER
4391340400
€ 8.00
8
0910308043
ref: 8
BOLT(8X45)
0910308043
€ 4.50
9
0916008035
ref: 9
WASHER
0916008035
€ 2.00
10
4391213700
ref: 10
GUIDE,CHAIN CONTROL
4391213700
€ 19.00
11
0912806006
ref: 11
BOLT(6X20)
0912806006
€ 2.00
12
0831931067
ref: 12
NUT
0831931067
€ 2.50
13
4743013A01
ref: 13
HOLDER,TOOL
€ 29.50
14
4743213A01
ref: 14
CAP,TOOL HOLDER
€ 0.00
15
0980000311
ref: 15
TOOL ASSY
€ 53.00
16-1
0110706205
ref: 16-1
MODEL G/H/J
BOLT
0110706205
€ 2.00
16-2
0911606111
ref: 16-2
MODEL K
BOLT 6X20,WITH PLAIN WASHER
€ 2.00
17
0916006039
ref: 17
MODEL G/H/J
WASHER (6.5X18X1.6)
0916006039
€ 2.00
18
0831931067
ref: 18
NUT
0831931067
€ 2.50
19
4744213A00
ref: 19
BOLT,TOOL HOLDER REAR
€ 0.00
20
0916006039
ref: 20
WASHER (6.5X18X1.6)
0916006039
€ 2.00
