CRANKCASE COVER
TS50XK 1987 (H) (E02 E16 E18 E21 E25)

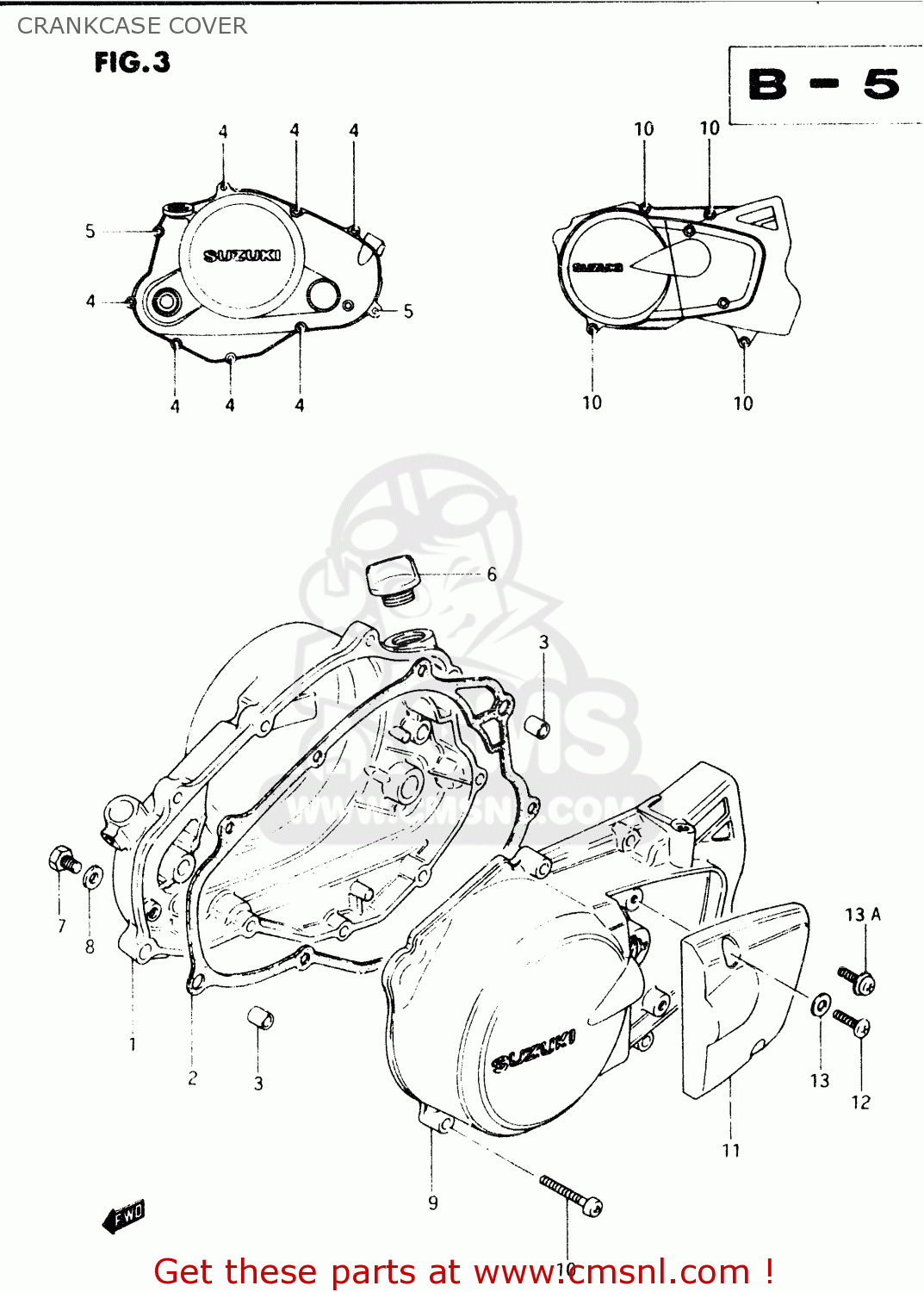

Crankcase cover diagram TS50XK 1987 (H) (E02 E16 E18 E21 E25)
CRANKCASE COVER TS50XK 1987 (H) (E02 E16 E18 E21 E25)
×
prices are in EUR
ref
part #
description
quantity
1
1134113601
ref: 1
COVER,CLUTCH
€ 112.00
2
1148213610
ref: 2
<-11482-13600
GASKET,CLUTCH COVER (NAS)
€ 25.00
3
0421109129
ref: 3
PIN
€ 2.00
4-1
0211206255
ref: 4-1
MODEL E/G/H/J/M
SCREW
€ 1.50
4-2
0211206253
ref: 4-2
MODEL R
SCREW
€ 1.50
5-1
0211206355
ref: 5-1
MODEL E/G/H/J/M
SCREW
€ 2.50
5-2
0211206353
ref: 5-2
MODEL R
SCREW
€ 2.50
6
0920020810
ref: 6
PLUG SET
€ 8.00
7
0912806037
ref: 7
SCREW(6X10)
€ 2.00
8
0916806001
ref: 8
GASKET(6.2X11X1) (NAS)
€ 1.50
9
1135113602
ref: 9
COVER,MAGNETO
€ 58.00
10-1
0912505066
ref: 10-1
MODEL E/G/H/J/M
SCREW(5X25)
€ 2.00
10-2
0211205253
ref: 10-2
MODEL R
SCREW
€ 1.50
11
1138713601
ref: 11
CAP,CLUTCH RELEASE ADJUST
€ 17.00
12
0211205125
ref: 12
MODEL E/G/H/J/M
SCREW
€ 1.50
13
0832221055
ref: 13
MODEL E/G/H/J/M
WASHER,5MM
€ 2.50
13A
0211215123
ref: 13A
MODEL R
SCREW 5X12
€ 1.50
