GEAR SHIFTING
TS50XK 1987 (H) (E02 E16 E18 E21 E25)

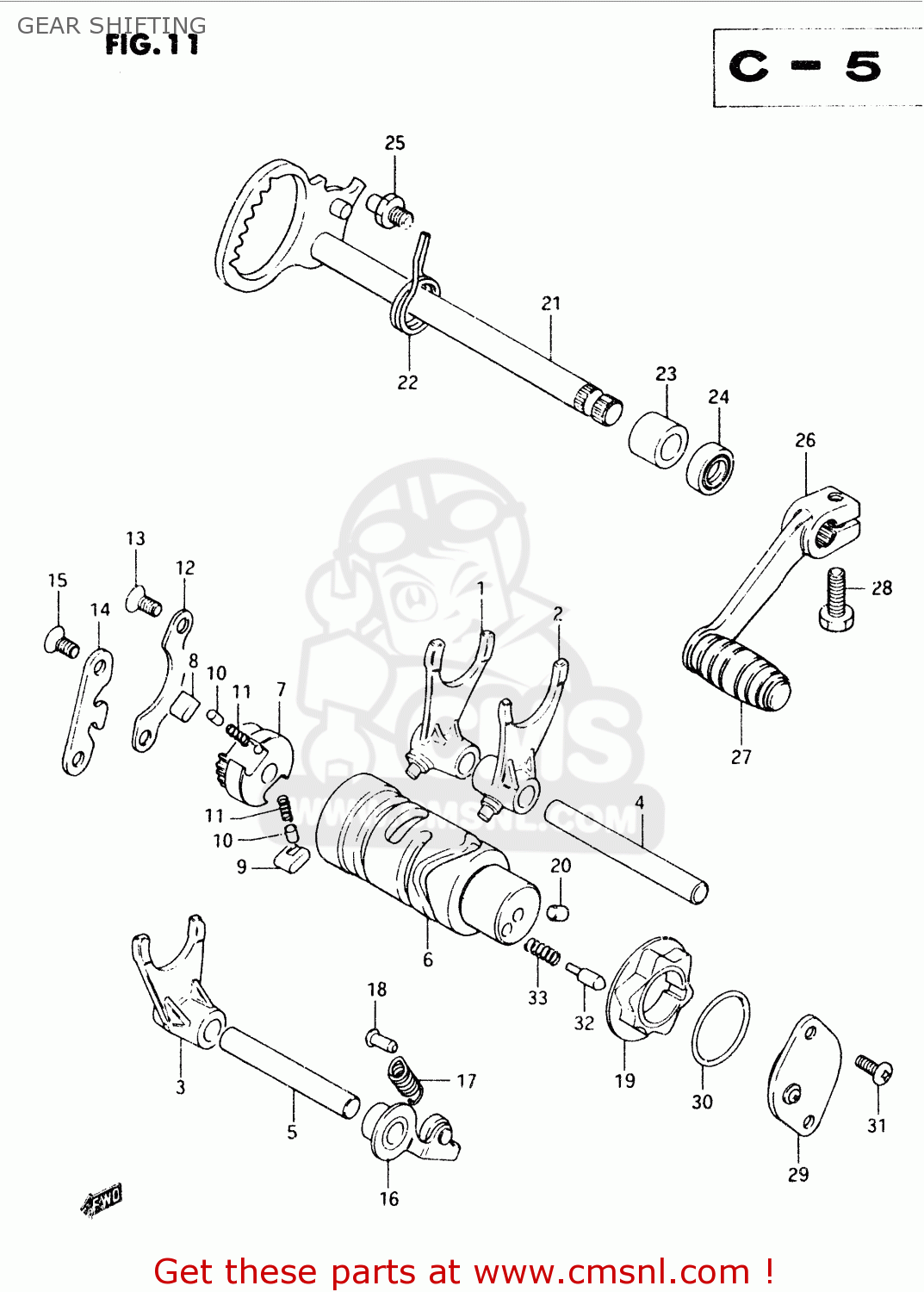

Gear shifting diagram TS50XK 1987 (H) (E02 E16 E18 E21 E25)
GEAR SHIFTING TS50XK 1987 (H) (E02 E16 E18 E21 E25)
×
prices are in EUR
ref
part #
description
quantity
1
2521104700
ref: 1
FORK,GEAR SHIFT NO.1
€ 37.00
2
2522104700
ref: 2
FORK, GEAR SHIFT N-2
€ 57.00
3
2523104700
ref: 3
FORK,GEAR SHIFT NO.2
€ 39.50
4
2541114330
ref: 4
L:85
SHAFT,GEAR SHIFT FORK
€ 14.00
5
2542104701
ref: 5
L:65
SHAFT,GEAR SHIFT FORK
€ 9.50
6-1
2531013603
ref: 6-1
CAM,GEAR SHIFT
€ 50.00
6-2
2531013610
ref: 6-2
E17
CAM, GEAR SHIFTING
€ 0.00
7
2532231301
ref: 7
GEAR,GEARSHIFT CAM DRIVE
€ 14.50
8
2532334201
ref: 8
PAWL,GEAR SHIFT NO.1
€ 6.00
9
2532434201
ref: 9
PAWL,GEAR SHIFT NO.2
€ 6.00
10
0926105003
ref: 10
PIN(5X8)
€ 1.50
11
0944004003
ref: 11
SPRING
€ 1.50
12
2533104702
ref: 12
LIFTER,GEAR SHIFT POLE
€ 4.00
13-1
0212206128
ref: 13-1
MODEL E/G/H/J/M
SCREW
€ 3.00
13-2
0212206123
ref: 13-2
MODEL R
SCREW
€ 3.00
14
2534104700
ref: 14
GUIDE,GEAR SHIFT CAM
€ 7.50
15-1
0212206127
ref: 15-1
MODEL E/G/H/J/M
SCREW
€ 3.00
15-2
0212206123
ref: 15-2
MODEL R
SCREW
€ 3.00
16
2535004701
ref: 16
STOPPER,GEAR SHIFTING CAM
€ 80.00
17
0944307034
ref: 17
SPRING
€ 4.00
18
0922304001
ref: 18
INC 11300-13830,1130
RIVET
€ 1.50
19
2538104700
ref: 19
PLATE,GEAR SHIFT CAM STOPPER
€ 13.00
20
0621104063
ref: 20
PIN 4X6
€ 2.00
21
2551013602
ref: 21
SHAFT,GEAR SHIFT
€ 44.00
22
0944426019
ref: 22
SPRING
€ 3.50
23
0918012083
ref: 23
SPACER(12X20X15.3)
€ 2.50
24
0928512002
ref: 24
OIL SEAL
€ 7.00
25
2567101000
ref: 25
STOPPER,GEAR SHIFT CAM
€ 3.00
26
2560013610
ref: 26
LEVER ASSY,GEAR SHIFT
€ 135.00
27
2565216500
ref: 27
RUBBER,GEAR SHIFT PEDAL
€ 4.00
28-1
0110706205
ref: 28-1
MODEL E/G/H/J/M
BOLT
€ 2.00
28-2
0150006203
ref: 28-2
MODEL R
BOLT
€ 2.00
29
3772029350
ref: 29
BODY,GEAR SHIFT SWITCH
€ 10.50
30
0928026003
ref: 30
O-RING (D:2.4 ID:26.2)
€ 2.50
31-1
0211205128
ref: 31-1
MODEL E/G/H/J/M
SCREW
€ 2.50
31-2
0211205123
ref: 31-2
MODEL R
SCREW
€ 1.50
32
0920905011
ref: 32
PIN(5X15.5)
€ 2.00
33
0944004010
ref: 33
SPRING
€ 1.50
