STEERING STEM
TS50XK 1987 (H) (E02 E16 E18 E21 E25)

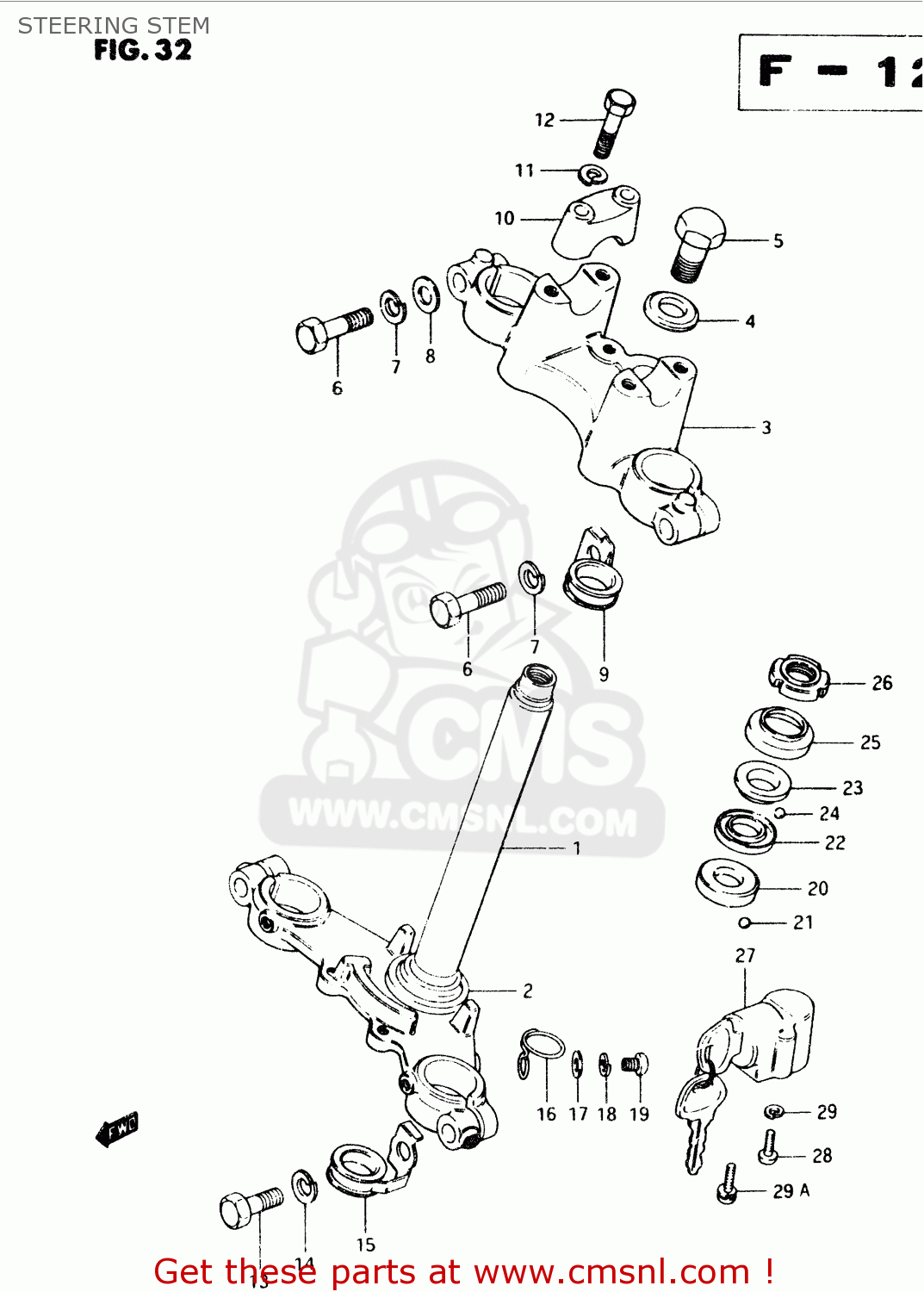

Steering stem diagram TS50XK 1987 (H) (E02 E16 E18 E21 E25)
STEERING STEM TS50XK 1987 (H) (E02 E16 E18 E21 E25)
×
prices are in EUR
ref
part #
description
quantity
1-1
5141013620126
ref: 1-1
MODEL E/G/H
STEM, STEERING (PEARL)
€ 163.50
1-2
5141013621126
ref: 1-2
MODEL J/M/R E2,E16
STEM, STEERING (PEARL)
€ 163.50
1-3
5141013630126
ref: 1-3
MODEL E/G/H E21,E25
STEM, STEERING (PEARL)
€ 163.50
1-4
5141013631126
ref: 1-4
MODEL J/M/R E1,E21,E
STEM,STEERING
€ 163.50
1-5
5141013650126
ref: 1-5
MODEL R E17,E22
STEM, STEERING (PEARL)
€ 0.00
2
5162133001
ref: 2
RACE,STEERING OUTER LWR
€ 10.00
3
5131113620126
ref: 3
HEAD,STEERING STEM
€ 97.00
4-1
5135622012
ref: 4-1
WASHER,STEM HEAD(10.5X30X3.2)
€ 4.00
4-2
0916010006
ref: 4-2
MODEL R E17,E22
WASHER (10.5X30X2.3)
€ 2.50
5
5135248000
ref: 5
BOLT,STEERING STEM HEAD
€ 12.50
6
5145127431
ref: 6
BOLT
€ 4.50
7
0832121107
ref: 7
WASHER,LOCK,10
€ 2.00
8
0832201107
ref: 8
WASHER
€ 2.50
9
5145513600
ref: 9
CLIP
€ 11.50
10
5621113620126
ref: 10
HOLDER,HANDLEBAR
€ 10.00
11
0832121088
ref: 11
LOCK WASHER
€ 2.00
12
0110708358
ref: 12
BOLT
€ 3.50
13
0110710358
ref: 13
BOLT,M10X1.25X
€ 2.50
14
0832121107
ref: 14
WASHER,LOCK,10
€ 2.00
15
5145213600
ref: 15
CLIP
€ 10.00
16
5145248500
ref: 16
CLIP
€ 6.00
17
0832201067
ref: 17
WASHER
€ 2.00
18
0832121067
ref: 18
WASHER,LOCK
€ 2.50
19
0211206128
ref: 19
SCREW 6X12
€ 2.00
20
5161133002
ref: 20
LACE,STEERING INNER LWR
€ 7.00
21
0611108003
ref: 21
BALL
€ 1.50
22
5161120002
ref: 22
RACE,STEERING INNER UPR
€ 5.50
23
5162128000
ref: 23
RACE,STEERING OUTER UPR
€ 7.00
24
0611106003
ref: 24
BALL
€ 1.50
25
5164325001
ref: 25
DUST SEAL,STEERING UPR
€ 4.50
26
5163128000
ref: 26
NUT,STEERING STEM(25X44X10)
€ 12.50
27-1
5191025311
ref: 27-1
LOCK ASSY,STEERING
€ 22.50
27-2
5190030901
ref: 27-2
E17,E22
LOCK ASSY,STEERING(NEIMAN)
€ 168.50
28
0211205128
ref: 28
MODEL E/G/H/J/M
SCREW
€ 2.50
29
0832121057
ref: 29
MODEL E/G/H/J/M
LOCK WASHER
€ 2.00
29A
0211235123
ref: 29A
MODEL R
SCREW
€ 1.50
