MUFFLER
TS50XK 1987 (H) (E02 E16 E18 E21 E25)

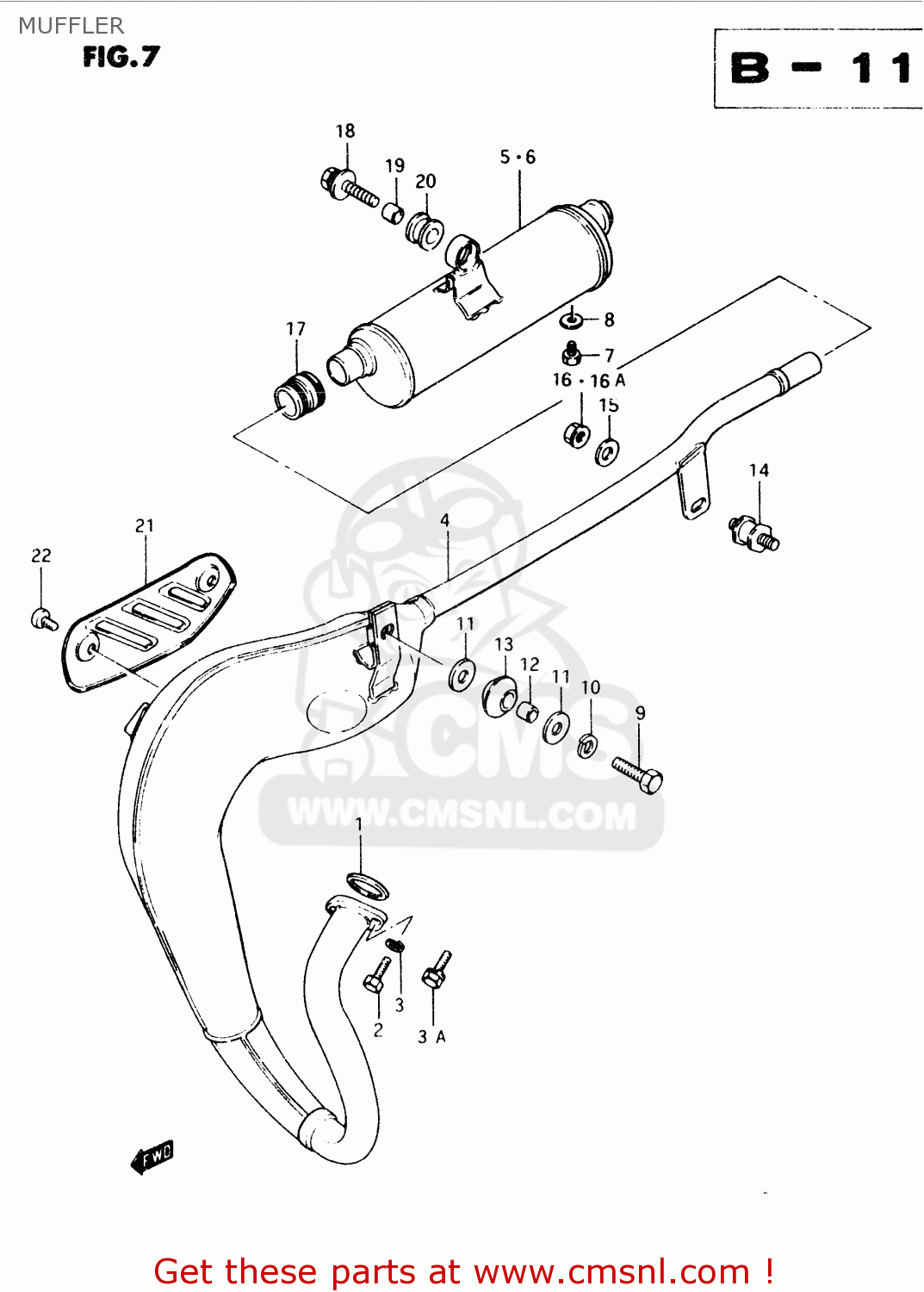

Muffler diagram TS50XK 1987 (H) (E02 E16 E18 E21 E25)
MUFFLER TS50XK 1987 (H) (E02 E16 E18 E21 E25)
×
prices are in EUR
ref
part #
description
quantity
1
1418104710
ref: 1
<-14181-04700
GASKET,EXHAUST PIPE (NAS)
€ 5.00
2
0110706205
ref: 2
MODEL E/G/H/J/M
BOLT
€ 2.00
3
0832121064
ref: 3
MODEL E/G/H/J/M
WASHER,LOCK
€ 2.00
3A
0157006203
ref: 3A
MODEL R
BOLT
€ 2.50
4-1
1431013740
ref: 4-1
E2,E16,E25
BODY,MUFFLER 1ST
€ 282.50
4-2
1431013780
ref: 4-2
E17
MUFFLER, 1ST
€ 0.00
4-3
1431013750
ref: 4-3
MODEL E/G/H/J E18
MUFFLER, 1ST
€ 228.50
4-4
1431013760
ref: 4-4
MODEL M/R E18
MUFFLER, 1ST
€ 572.00
4-5
1431013650
ref: 4-5
E21
MUFFLER, 1ST
€ 202.50
4-6
1431013770
ref: 4-6
E22
MUFFLER, 1ST
€ 722.50
4-7
1431013612
ref: 4-7
E1,E21 OPT
MUFFLER ASSY,1ST
€ 212.00
5
1433013731
ref: 5
E2,E16,E17,E18,E22
MUFFLER 2ND
€ 164.50
6
1430313761
ref: 6
E1,E21,E25
MUFFLER ASSY,2ND
€ 142.00
7
0910006092
ref: 7
E1,E21,E25
BOLT 6X8
€ 2.50
8
0916806004
ref: 8
E1,E21,E25
GASKET(6.2X11X1).2 (NAS)
€ 1.50
9
0110708307
ref: 9
BOLT
€ 2.50
10
0832121088
ref: 10
LOCK WASHER
€ 2.00
11
0916008004
ref: 11
<-09160-08005
WASHER
€ 2.50
12
0918008048
ref: 12
SPACER (8X12X15)
€ 3.50
13
1477230500
ref: 13
DAMPER,MUFFLER,FR
€ 3.00
14
1477048700
ref: 14
BUSH
€ 12.50
15
0916008057
ref: 15
WASHER (8.5X20X1.6)
€ 2.00
16
0831616085
ref: 16
MODEL E/G/H/J/M
NUT 8MM
€ 3.00
16A
0831610083
ref: 16A
MODEL R
NUT
€ 3.00
17
1477148002
ref: 17
CONNECTOR,MUFFLER
€ 8.00
18
0911808078
ref: 18
BOLT 8X35
€ 4.50
19
0918008102
ref: 19
SPACER (8.6X12X17.5)
€ 3.00
20
0932012043
ref: 20
<-09320-12026
CUSHION
€ 8.00
21-1
1478113720
ref: 21-1
E2,E16,E17,E18,E22,E
COVER,MUFFLER
€ 16.50
21-2
1478113640
ref: 21-2
E1,E21
COVER,MUFFLER
€ 10.50
22-1
0211206084
ref: 22-1
MODEL E/G/H/J/M
SCREW
€ 1.50
22-2
0211206083
ref: 22-2
MODEL R
SCREW
€ 1.50
