CYLINDER
TS50XK 1987 (H) (E02 E16 E18 E21 E25)

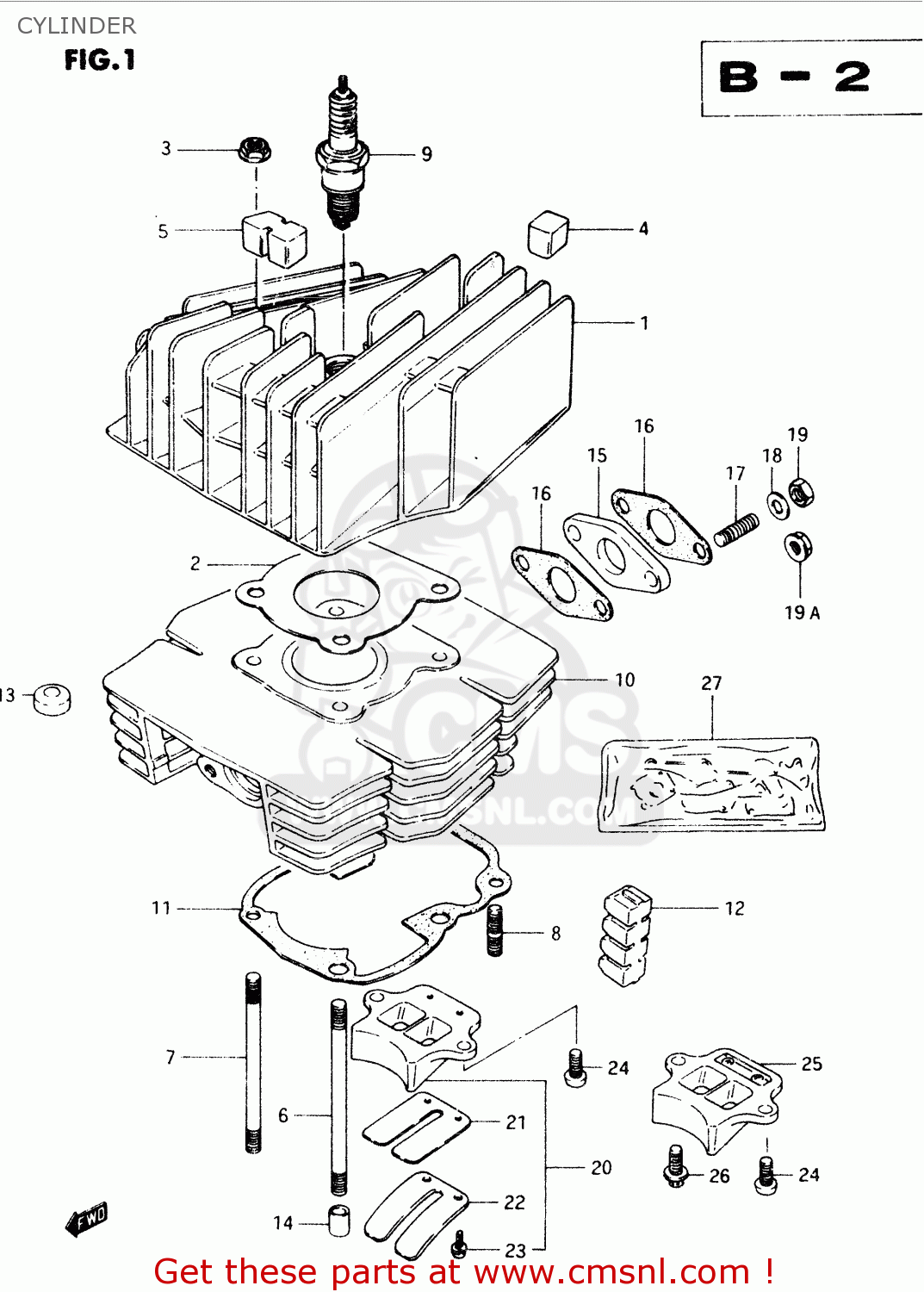

Cylinder diagram TS50XK 1987 (H) (E02 E16 E18 E21 E25)
CYLINDER TS50XK 1987 (H) (E02 E16 E18 E21 E25)
×
prices are in EUR
ref
part #
description
quantity
1-1
1111134B01
ref: 1-1
E2,E16,E18,E22,E25
HEAD,CYLINDER
€ 85.50
1-2
1111113630
ref: 1-2
E1,E21
HEAD,CYLINDER
€ 97.00
1-3
1111113650
ref: 1-3
E17
HEAD, CYLINDER
€ 0.00
2
1114113620
ref: 2
GASKET,CYLINDER HEAD (NAS)
€ 3.50
3-1
0831616064
ref: 3-1
MODEL E/G/H/J/M
NUT 6MM
€ 2.50
3-2
0831610063
ref: 3-2
MODEL R
NUT
€ 2.50
4
1115140900
ref: 4
PAD,CYLINDER HEAD
€ 4.00
5
1125113630
ref: 5
PAD, RUBBER
€ 3.50
6
0910806057
ref: 6
STUD
€ 4.00
7
0910806058
ref: 7
STUD
€ 4.00
8
0142106165
ref: 8
STUD 6X16
€ 2.00
9-1
0948200177
ref: 9-1
MODEL E/G/H/J/M E2,E
SPARK PLUG (NGK,BP6ES)
€ 4.00
9-2
0948200154
ref: 9-2
MODEL E/G/H/J/M E2,E
SPARK PLUG (ND,W20EP)
€ 3.00
9-3
0948200487
ref: 9-3
MODEL R E2,E16,E18,E
PLUG,SPARK(BPR6ES)
€ 4.00
9-4
0948200488111
ref: 9-4
MODEL R E2,E16,E18,E
SPARK PLUG (ND,W20EPR)
€ 0.00
9-5
0948200139
ref: 9-5
E1,E21
PLUG,SPARK(BP7ES)
€ 4.00
9-6
0948200140
ref: 9-6
E1,E21
SPARK PLUG W22EP
€ 3.00
9-7
0948200487
ref: 9-7
E17
PLUG,SPARK(BPR6ES)
€ 4.00
9-8
0948200488111
ref: 9-8
E17
SPARK PLUG (ND,W20EPR)
€ 0.00
10-1
1121013641
ref: 10-1
MODEL E/G/H/J/M E2,E
CYLINDER
€ 328.50
10-2
1121013690
ref: 10-2
MODEL R E2,E16
CYLINDER
€ 328.50
10-3
1121013670
ref: 10-3
E17
CYLINDER
€ 368.50
10-4
1121013650
ref: 10-4
E18
CYLINDER
€ 338.50
10-5
1121013630
ref: 10-5
E1,E21
CYLINDER
€ 319.00
10-6
1121013680
ref: 10-6
MODEL M E22
CYLINDER
€ 0.00
10-7
1121013690
ref: 10-7
MODEL R E22
CYLINDER
€ 328.50
10-8
1121034B03
ref: 10-8
E25
CYLINDER
€ 247.50
11
1124113640
ref: 11
GASKET,CYLINDER (MCA)
€ 7.50
12
1125136500
ref: 12
PAD,CYLINDER
€ 6.50
13
1125213630
ref: 13
PAD,CYLINDER RUBBER(N1)
€ 2.00
14
0421111189
ref: 14
PIN
€ 2.00
15-1
1312946100
ref: 15-1
INSULATOR,CARBURETOR
€ 10.50
15-2
1312946110
ref: 15-2
E17,E25
INSULATOR,CARBURETOR
€ 8.50
15-3
1312928B00
ref: 15-3
E2,E16,E22
INSULATOR,CARBURETOR
€ 9.00
16-1
1312546110
ref: 16-1
GASKET,CARBURETOR (NAS)
€ 3.00
16-2
1312528B00H17
ref: 16-2
E2,E16,E22
GASKET,CARBURETOR (NAS)
€ 4.50
17
0141106208
ref: 17
STUD BOLT
€ 1.50
18
0832201067
ref: 18
MODEL E/G/H/J/M
WASHER
€ 2.00
19
0831011067
ref: 19
MODEL E/G/H/J/M
NUT 6MM
€ 2.50
19A
0831610063
ref: 19A
MODEL R
NUT
€ 2.50
20
1315026411
ref: 20
EXCEPT E17,E22,E25
VALVE ASSY,REED
€ 51.00
21
1315326410
ref: 21
EXCEPT E17,E22,E25
VALVE,REED
€ 6.50
22
1315226410
ref: 22
EXCEPT E17,E22,E25
STOPPER,REED VALVE
€ 4.50
23
1315419011
ref: 23
EXCEPT E17,E22,E25
SCREW,REED VALVE
€ 1.50
24-1
0211206167
ref: 24-1
MODEL E/G/H/J/M EXCE
SCREW
€ 2.50
24-2
0211206163
ref: 24-2
MODEL R EXCEPT E17,E
SCREW 6X16
€ 2.00
24-3
0211206167
ref: 24-3
MODEL M E22
SCREW
€ 2.50
24-4
0211206163
ref: 24-4
MODEL R E22
SCREW 6X16
€ 2.00
25
1315026420
ref: 25
E22
VALVE ASSY,REED
€ 55.00
26
0913906014
ref: 26
E22
SCREW(6X16)
€ 2.50
27-1
1140013832
ref: 27-1
MODEL E/G/H/J
GASKET SET (NA
€ 28.00
27-2
1140013880
ref: 27-2
E18,MODEL M/R
GASKET SET (NAS)
€ 28.00
27-3
1140013890
ref: 27-3
E2,E16,E22
GASKET SET (NAS)
€ 29.00
