CUSHION LEVER
TS50XK 1987 (H) (E02 E16 E18 E21 E25)

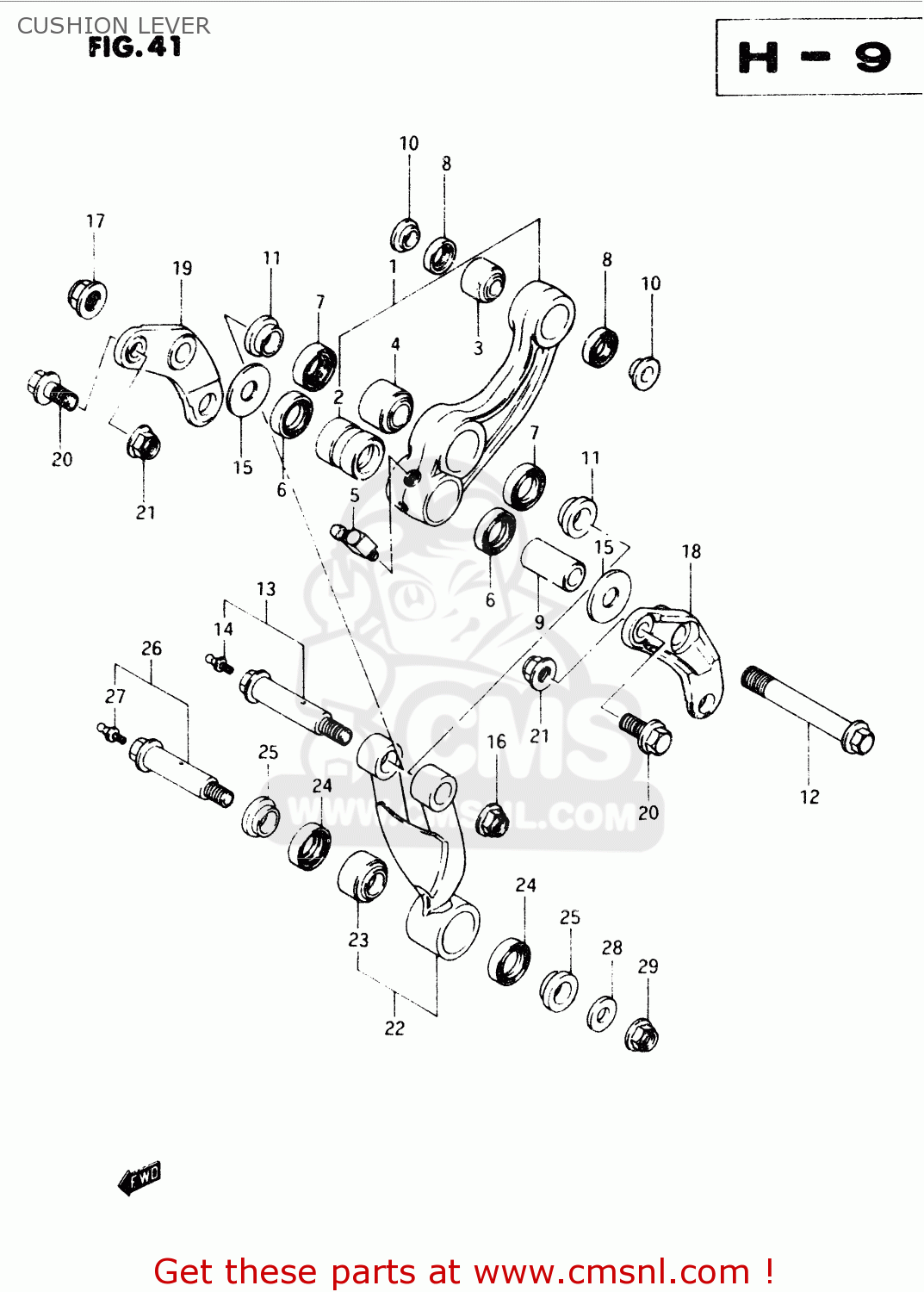

Cushion lever diagram TS50XK 1987 (H) (E02 E16 E18 E21 E25)
CUSHION LEVER TS50XK 1987 (H) (E02 E16 E18 E21 E25)
×
prices are in EUR
ref
part #
description
quantity
1
6260013842
ref: 1
LEVER SET, CUSHION
€ 198.00
2
6268213700
ref: 2
BUSHING,LEVER(20X26X26)
€ 12.50
3
0926910003
ref: 3
BEARING(10X24X15)
€ 31.00
4
0926915003
ref: 4
BEARING(15X29X18)
€ 41.50
5
0950006001
ref: 5
NIPPLE
€ 6.00
6
6268313700
ref: 6
SEAL,RR CUSHION FR DUST
€ 4.50
7
6268313620
ref: 7
DUST SEAL,CTR
€ 6.00
8
6268343400
ref: 8
DUST SEAL,RR CUSHION LEVER RR
€ 4.00
9
6268413701
ref: 9
<-62684-13700
SPACER,RR CUSHION LEVER FR
€ 18.50
10
6268443401
ref: 10
SPACER
€ 7.00
11
6268413612
ref: 11
SPACER
€ 12.00
12
6231313620
ref: 12
BOLT,RR CUSHION LEVER FR
€ 7.50
13
6230013810
ref: 13
BOLT SET,CUSHION LEVER CTR
€ 13.00
14
0835111009
ref: 14
NIPPLE
€ 32.00
15
0916012064
ref: 15
WASHER, FRONT
€ 2.50
16
0831931107
ref: 16
NUT
€ 3.00
17
0831931128
ref: 17
NUT 12MM
€ 4.00
18
6269113700
ref: 18
HOLDER,RR CUSHION LEVER,L
€ 36.00
19
6269213700
ref: 19
HOLDER,RR CUSHION LEVER,R
€ 35.00
20
0910310037
ref: 20
BOLT(10X25)
€ 4.00
21
0831931107
ref: 21
NUT
€ 3.00
22-1
6260013851
ref: 22-1
MODEL E/G/H/J/M
ROD SET,LEVER
€ 76.00
22-2
6260113830
ref: 22-2
MODEL R
ROD SET, CUSHION
€ 76.00
23
0926915003
ref: 23
BEARING(15X29X18)
€ 41.50
24
6268313620
ref: 24
DUST SEAL,CTR
€ 6.00
25
6268413612
ref: 25
SPACER
€ 12.00
26
6230013820
ref: 26
BOLT SET,CUSHION ROD LWR
€ 14.00
27
0835111009
ref: 27
NIPPLE
€ 32.00
28
0916010079
ref: 28
WASHER(10.1X25X3.2)
€ 3.00
29
0831931107
ref: 29
NUT
€ 3.00
