FUEL TANK (MODEL J/M/R)

TS50XK 1987 (H) (E02 E16 E18 E21 E25)

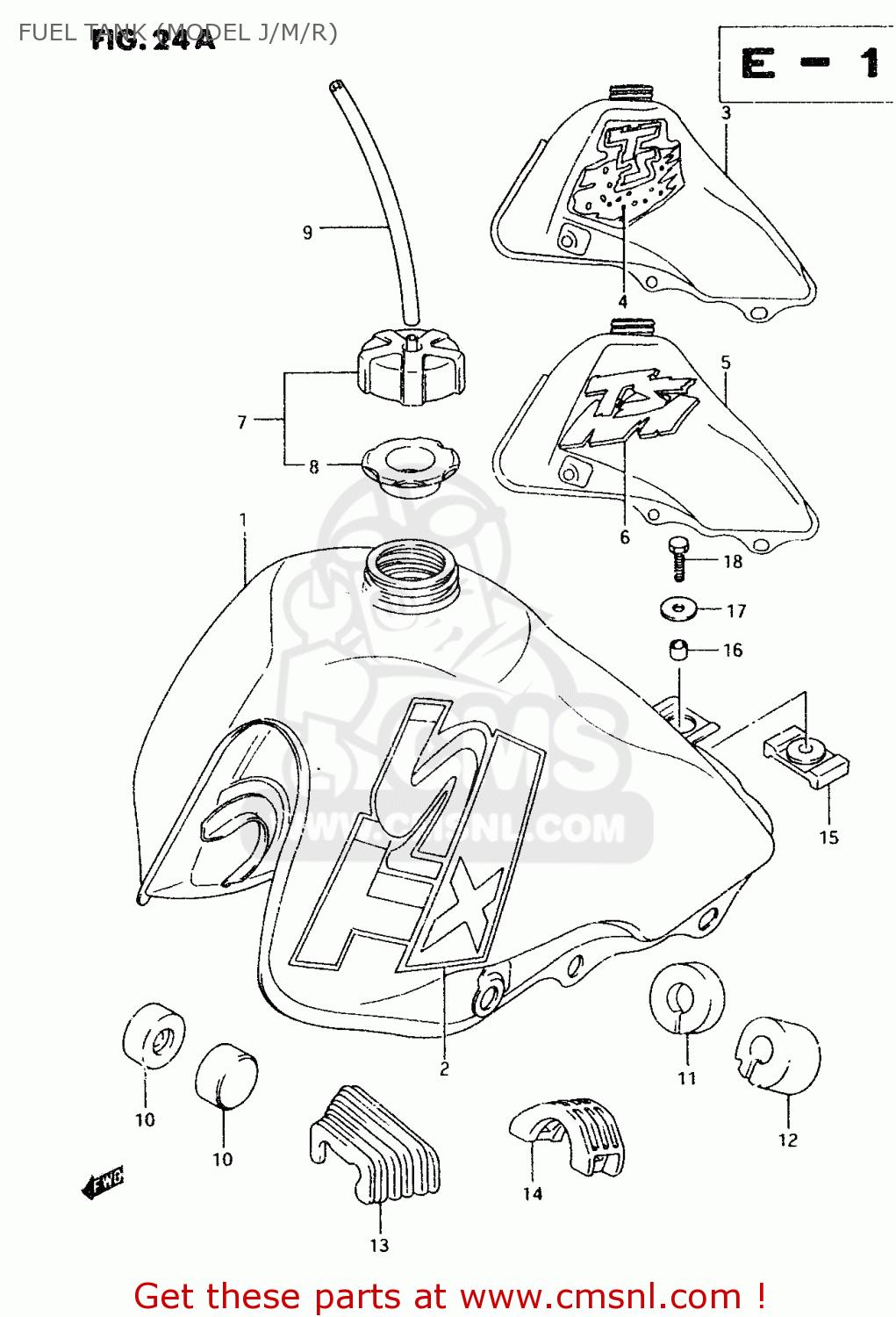

Fuel tank (model j/m/r) diagram TS50XK 1987 (H) (E02 E16 E18 E21 E25)

FUEL TANK (MODEL J/M/R) TS50XK 1987 (H) (E02 E16 E18 E21 E25)
FUEL TANK (MODEL J/M/R) TS50XK 1987 (H) (E02 E16 E18 E21 E25)
FUEL TANK (MODEL J/M/R) TS50XK 1987 (H) (E02 E16 E18 E21 E25)
prices are in EUR
ref
part #
description
quantity
1-1
441001379014L
ref: 1-1
MODEL J
TANK ASSY,FUEL(WHITE)
€ 296.50
1-2
441001379021C
ref: 1-2
MODEL J
TANK,FUEL
441001379021C
€ 296.50
1-3
441001379025Y
ref: 1-3
MODEL J
TANK ASSY, FUEL (YELLOW)
€ 254.00
2-1
68110136409YE
ref: 2-1
MODEL J FOR 14L
TAPE SET, FUEL TANK
€ 22.00
2-2
68110136409DK
ref: 2-2
MODEL J FOR 21C
TAPE SET, FUEL TANK
68110136409DK
€ 22.00
2-3
68110136402DP
ref: 2-3
MODEL J FOR 25Y
TAPE SET, FUEL TANK
€ 22.00
3-1
491001375014L
ref: 3-1
MODEL M
TANK ASSY, FUEL (WHITE)
€ 254.00
3-2
491001375021C
ref: 3-2
MODEL M
TANK ASSY, FUEL (BLACK)
€ 254.00
3-3
491001375025Y
ref: 3-3
MODEL M
TANK ASSY, FUEL (YELLOW)
€ 254.00
3-4
491001376014L
ref: 3-4
MODEL M E22
TANK ASSY, FUEL (WHITE)
€ 0.00
3-5
491001376021C
ref: 3-5
MODEL M E22
TANK ASSY, FUEL (BLACK)
€ 0.00
3-6
491001376025Y
ref: 3-6
MODEL M E22
TANK ASSY, FUEL (YELLOW)
€ 0.00
4-1
68110137101DY
ref: 4-1
MODEL M FOR 14L
TAPE SET, FUEL TANK
€ 88.00
4-2
68110137101GH
ref: 4-2
MODEL M FOR 21C
TAPE SET, FUEL TANK
€ 88.00
4-3
68110137101DV
ref: 4-3
MODEL M FOR 25Y
TAPE SET, FUEL TANK
68110137101DV
€ 92.50
5-1
49100137700NF
ref: 5-1
MODEL R
TANK ASSY,FUEL(BLUE)
€ 492.50
5-2
4910013770019
ref: 5-2
MODEL R
TANK ASSY, FUEL (BLACK)
4910013770019
€ 370.00
5-3
49100137800NF
ref: 5-3
MODEL R E22
TANK ASSY, FUEL (BLUE)
€ 0.00
5-4
4910013780019
ref: 5-4
MODEL R E22
TANK ASSY,FUEL(BLACK)
€ 0.00
6-1
6812013700B7J
ref: 6-1
MODEL R FOR 019
TAPE SET, FUEL TANK
€ 51.50
6-2
6812013700B7K
ref: 6-2
MODEL R FOR 0NF
TAPE SET,TANK
€ 61.50
7
4420005812
ref: 7
CAP SET,FUEL TANK
4420005812
€ 19.50
8
4424805210
ref: 8
GASKET (NAS)
4424805210
€ 4.50
9
0935250823300
ref: 9
HOSE
0935250823300
€ 13.00
10
0932910019
ref: 10
CUSHION
0932910019
€ 6.00
11
4454213610
ref: 11
->44545-13610
CUSHION, LOWER RH
4454213610
€ 5.00
12
4454513610
ref: 12
CUSHION
4454513610
€ 5.00
13
4455513700
ref: 13
CUSHION,FUEL TANK LWR
4455513700
€ 9.50
14
4454113600
ref: 14
CUSHION,FUEL TANK CTR
4454113600
€ 8.50
15
4454213600
ref: 15
CUSHION,FUEL TANK RR
4454213600
€ 4.00
16
0918006011
ref: 16
SPACER (6.1X9X9)
0918006011
€ 2.00
17
0916006012
ref: 17
WASHER(6,5X22X1.6)
€ 2.00
18-1
0150006207
ref: 18-1
MODEL J
BOLT
0150006207
€ 2.00
18-2
0911606131
ref: 18-2
MODEL M/R
BOLT(6X25)
0911606131
€ 2.00
