OIL PUMP
TS50XK 1987 (H) (E02 E16 E18 E21 E25)

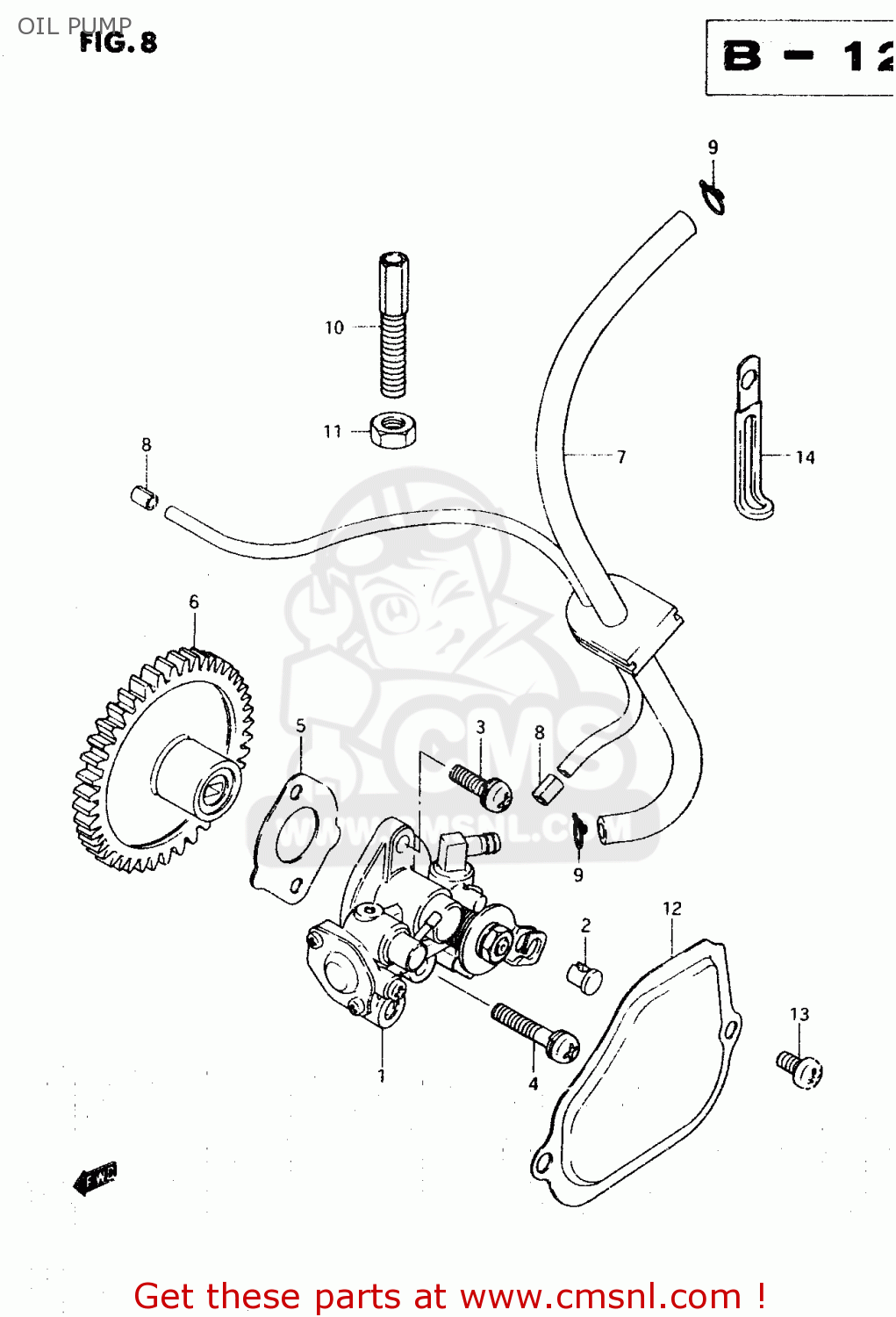

Oil pump diagram TS50XK 1987 (H) (E02 E16 E18 E21 E25)
OIL PUMP TS50XK 1987 (H) (E02 E16 E18 E21 E25)
×
prices are in EUR
ref
part #
description
quantity
1-1
1610013620
ref: 1-1
E2,E16,E17,E18,E22,E
PUMP ASSY,OIL
€ 164.00
1-2
1610013610
ref: 1-2
E1,E21
PUMP ASSY, OIL
€ 164.00
2
1629203112
ref: 2
TERMINAL,CABLE
€ 3.50
3-1
0211235168
ref: 3-1
MODEL E/G/H/J/M
SCREW
€ 2.50
3-2
0211235163
ref: 3-2
MODEL R
SCREW
€ 2.50
4-1
0211235308
ref: 4-1
MODEL E/G/H/J/M
SCREW
€ 1.50
4-2
0211235303
ref: 4-2
MODEL R
SCREW
€ 2.50
5
1673103101
ref: 5
GASKET,OIL PUMP (NAS)
€ 2.50
6
1633013600
ref: 6
GEAR,OIL PUMP DRIVEN(NT:37)
€ 28.50
7
1682046A00
ref: 7
L:430/470->370/470
HOSE SET,OIL NO.2
€ 12.50
8
0940104401
ref: 8
CLIP
€ 2.50
9
0940108401
ref: 9
CLIP
€ 1.50
10
0911908014
ref: 10
BOLT
€ 3.50
11-1
0831012088
ref: 11-1
MODEL E/G/H/J/M
NUT
€ 2.00
11-2
0831000083
ref: 11-2
MODEL R
NUT
€ 1.50
12
1138504701
ref: 12
CAP,OIL PUMP INSPECTION
€ 13.00
13-1
0211205107
ref: 13-1
MODEL E/G/H/J/M
SCREW
€ 2.00
13-2
0211205103
ref: 13-2
MODEL R
SCREW
€ 2.00
14
0940406402
ref: 14
CLAMP
€ 2.50
