MAGNETO
TS50XK 1987 (H) (E02 E16 E18 E21 E25)

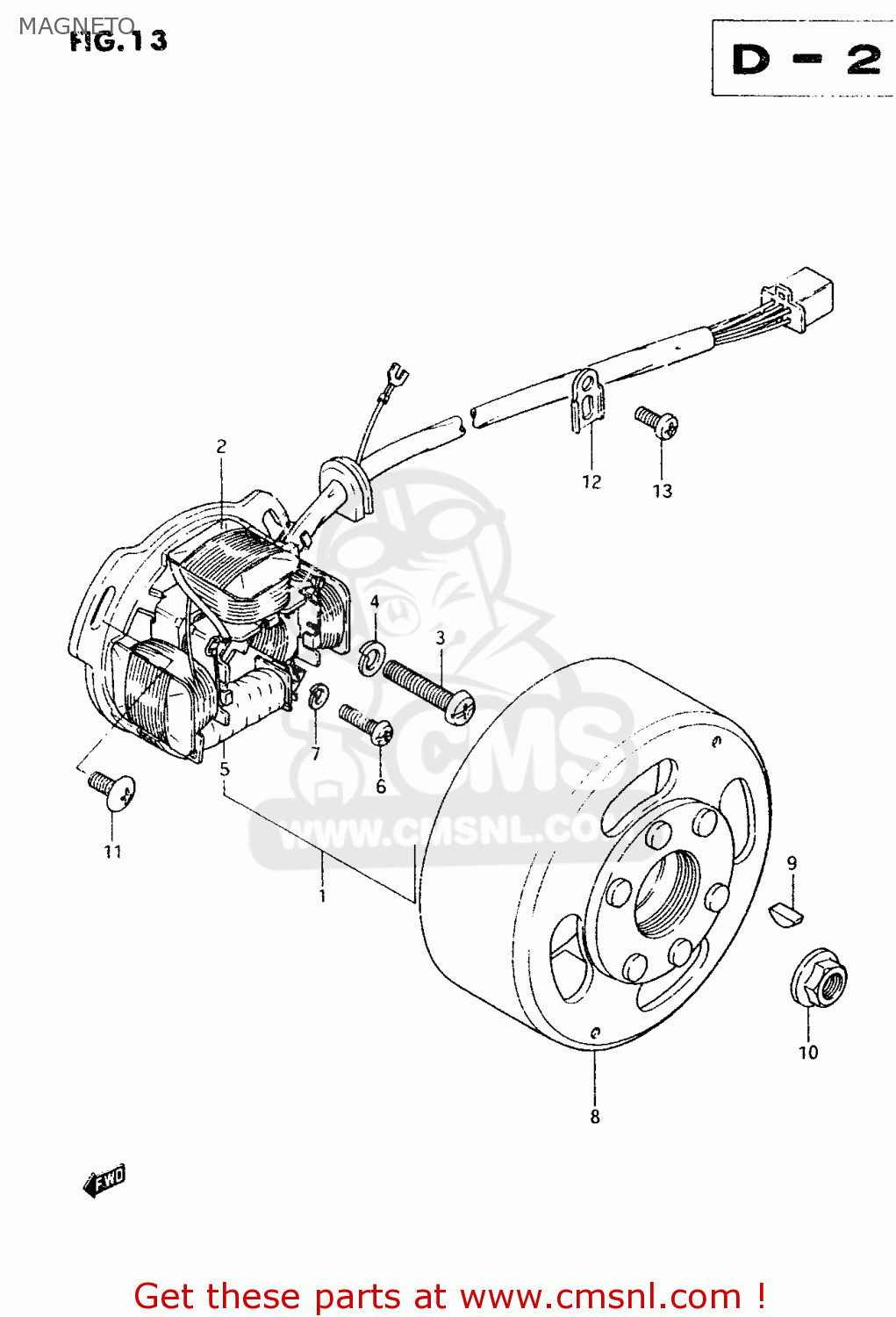

Magneto diagram TS50XK 1987 (H) (E02 E16 E18 E21 E25)
MAGNETO TS50XK 1987 (H) (E02 E16 E18 E21 E25)
×
prices are in EUR
ref
part #
description
quantity
1
3210113620
ref: 1
STARTER ASSY
€ 238.50
2
3212048720
ref: 2
COIL,STARTER
€ 132.50
3-1
0211206308
ref: 3-1
MODEL E/G/H/J/M
SCREW 6X30
€ 2.50
3-2
0211206307
ref: 3-2
MODEL R
SCREW
€ 2.50
4-1
0832121067
ref: 4-1
MODEL E/G/H/J/M
WASHER,LOCK
€ 2.50
4-2
0832101063
ref: 4-2
MODEL R
LOCK WASHER
€ 2.00
5
3214035410
ref: 5
COIL,PRIMARY
€ 58.50
6-1
0211204167
ref: 6-1
MODEL E/G/H/J/M
SCREW
€ 1.00
6-2
0211204163
ref: 6-2
MODEL R
SCREW 4X16
€ 1.00
7-1
0832121047
ref: 7-1
MODEL E/G/H/J/M
WASHER,LOCK 4M
€ 2.00
7-2
0832101043
ref: 7-2
MODEL R
WASHER,LOCK
€ 2.00
8
3210213620
ref: 8
ROTOR ASSY
€ 164.50
9
0834131039
ref: 9
KEY
€ 2.00
10-1
0831610107
ref: 10-1
MODEL E/G/H/J/M
NUT
€ 2.00
10-2
0831610103
ref: 10-2
MODEL R
NUT
€ 2.00
11-1
0214205128
ref: 11-1
MODEL E/G/H/J/M
SCREW
€ 1.50
11-2
0214205123
ref: 11-2
MODEL R
SCREW 5X12
€ 1.50
12
3149745000
ref: 12
CLAMP,GENERATOR LEAD WIRE
€ 1.50
13-1
0211205087
ref: 13-1
MODEL E/G/H/J/M
SCREW
€ 2.00
13-2
0211205083
ref: 13-2
MODEL R
SCREW
€ 2.00
