REAR WHEEL
TS50XK 1987 (H) (E02 E16 E18 E21 E25)

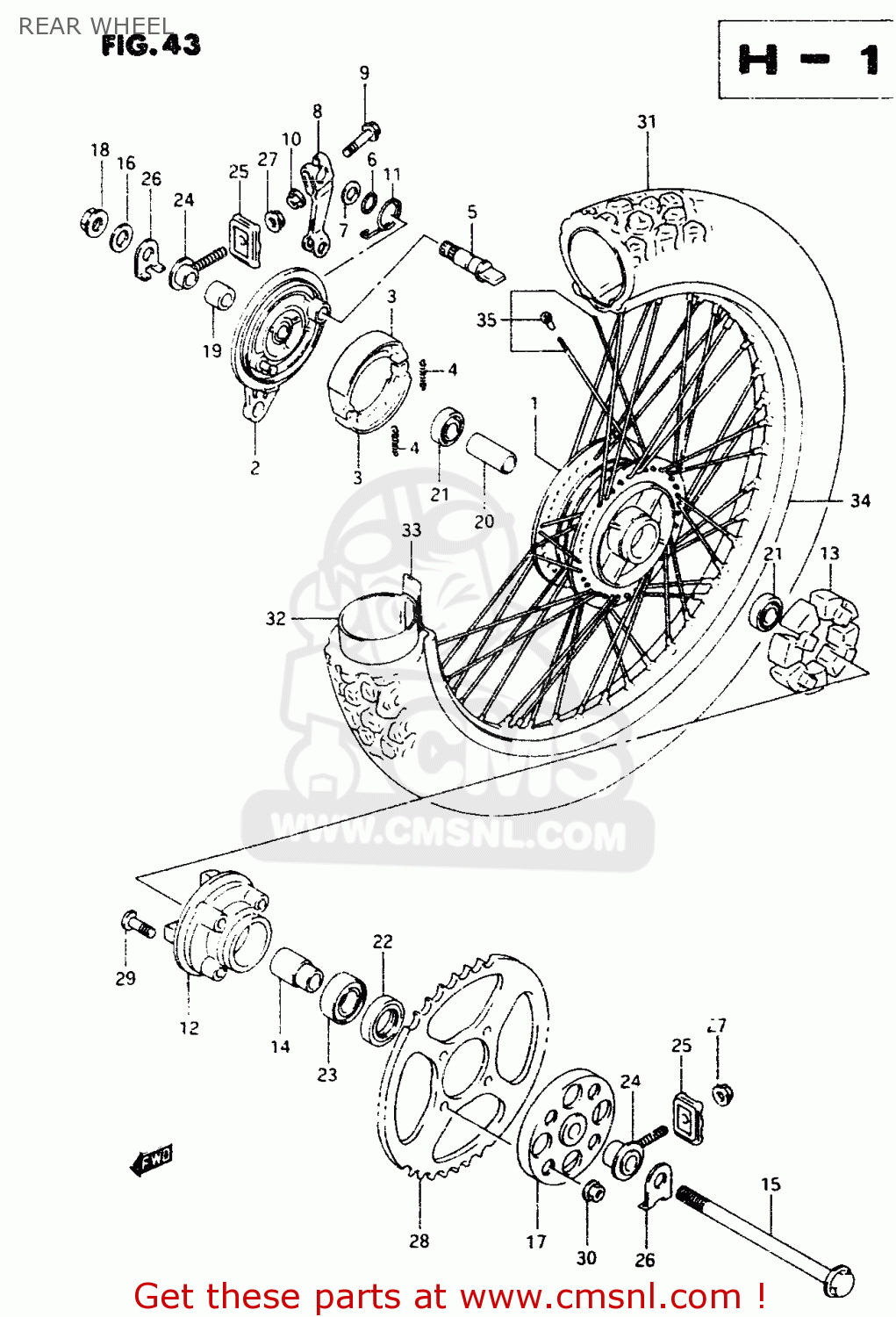

Rear wheel diagram TS50XK 1987 (H) (E02 E16 E18 E21 E25)
REAR WHEEL TS50XK 1987 (H) (E02 E16 E18 E21 E25)
×
prices are in EUR
ref
part #
description
quantity
1-1
6411013600
ref: 1-1
MODEL E
HUB,RR WHEEL
€ 98.00
1-2
6411013700
ref: 1-2
MODEL E/G/H/J/M/R
REAR HUB DRUM
€ 121.00
2
6421013600
ref: 2
PANEL,RR HUB
€ 80.50
3-1
5441004700
ref: 3-1
MODEL E ->54410-0470
SHOE, BRAKE
€ 25.50
3-2
5441004701
ref: 3-2
MODEL E/G/H/J/M
SHOE BRAKE
€ 25.50
3-3
5441013600
ref: 3-3
MODEL R
SHOE,RR BRAKE
€ 25.50
3-4
5441013600
ref: 3-4
MODEL M/R E17,E22
SHOE,RR BRAKE
€ 25.50
4-1
0944307001
ref: 4-1
MODEL E FOR 54410-04
SPRING(L:34)
€ 2.50
4-2
0944307025
ref: 4-2
MODEL E/G/H/J/M FOR
SPRING(L:35.8)
€ 2.50
4-3
0944307025
ref: 4-3
MODEL R
SPRING(L:35.8)
€ 2.50
5
6444104701
ref: 5
CAM,RR BRAKE
€ 13.00
6
0928014003
ref: 6
O-RING (D:2.4 ID:13.8)
€ 3.50
7
0916014001
ref: 7
WASHER (14.5X22X1.6)
€ 2.50
8
6445113601
ref: 8
LEVER,RR BRAKE CAM
€ 21.50
9-1
0151706358
ref: 9-1
MODEL E/G/H/J/M
BOLT 6X35
€ 2.50
9-2
0155006353
ref: 9-2
MODEL R
BOLT
€ 2.50
10-1
0915906017
ref: 10-1
MODEL E/G/H/J/M
NUT
€ 2.50
10-2
0831610063
ref: 10-2
MODEL R
NUT
€ 2.50
11
0944830007
ref: 11
SPRING
€ 19.00
12
6461104700
ref: 12
DRUM,RR SPROCKET
€ 48.00
13
6465104701
ref: 13
ABSORBER,SHOCK
€ 7.50
14
6473343000
ref: 14
RETAINER,RR SPROCKET DRUM
€ 7.00
15
6471104701
ref: 15
AXLE,REAR
€ 24.00
16-1
0832211128
ref: 16-1
MODEL E/G/H/J/M
WASHER
€ 2.00
16-2
0832201123
ref: 16-2
MODEL R
WASHER
€ 2.00
17
6475013600
ref: 17
SPACER
€ 11.50
18-1
0831921128
ref: 18-1
MODEL E/G/H/J/M
NUT 12MM
€ 4.00
18-2
0831921123
ref: 18-2
MODEL R
U NUT
€ 3.50
19
0918012093
ref: 19
SPACER(12.1X22X20)
€ 6.00
20
0918012094
ref: 20
SPACER(12.1X17.3X62)
€ 7.00
21
0814362017
ref: 21
BEARING
€ 11.50
22
0928525001
ref: 22
SEAL OIL(25X40X6)
€ 12.50
23
0926217023
ref: 23
BEARING(17X40X12)
€ 14.00
24
6141013701
ref: 24
ADJUSTER,CHAIN
€ 9.00
25
6144113700
ref: 25
PLATE,CHAIN ADJUSTER GUIDE
€ 6.50
26
6471220900
ref: 26
WASHER,CHAIN ADJUSTER
€ 2.00
27
0831931087
ref: 27
NUT
€ 2.50
28-1
6451113620
ref: 28-1
E2
SPROCKET RR 51
€ 41.00
28-2
6451113650
ref: 28-2
E16,E17,E18,E22
SPROCKET, REAR (NT:54)
€ 69.50
28-3
6451113630
ref: 28-3
E1,E21
SPROCKET RR
€ 43.50
28-4
6451113642
ref: 28-4
E25
SPROCKET RR
€ 33.50
29-1
0911908078
ref: 29-1
MODEL E/G/H/J/M
BOLT
€ 5.00
29-2
0911908043
ref: 29-2
MODEL R
BOLT
€ 2.00
29-3
0911908078
ref: 29-3
MODEL M E22
BOLT
€ 5.00
29-4
0911908043
ref: 29-4
MODEL R E22
BOLT
€ 2.00
29-5
0911908081
ref: 29-5
E22
BOLT
€ 0.00
30
0831931087
ref: 30
NUT
€ 2.50
31
6510026510
ref: 31
TIRE 3.00-18 077-458MM
€ 180.50
32
5520011601
ref: 32
TUBE,INNER
€ 24.50
33
5526114010
ref: 33
PROTECTOR,WHEEL,INNER
€ 3.50
34-1
6531113600
ref: 34-1
MODEL E ->65311-4650
RIM, REAR WHEEL (1.60X18) (SPORK 28PCS)
€ 93.00
34-2
6531113620
ref: 34-2
MODEL E ->55311-1842
RIM, REAR WHEEL (1.60X18) (SPORK 36PCS)
€ 98.50
34-3
5531118420
ref: 34-3
MODEL R E1,E2 E16,E1
RIM,FR WHEEL
€ 98.50
34-4
6531113630
ref: 34-4
MODEL G/H/J/M MODEL
RIM,RR WHEEL(1.60X18)
€ 122.00
35-1
6532013600
ref: 35-1
MODEL E
SPOKE ASSY, REAR WHEEL (SPOKE 28PCS)
€ 26.00
35-2
6532013620
ref: 35-2
MODEL E/G/H/J/M/R
SPOKE SET,RR WHEEL
€ 55.00
