CRANKCASE
TS50XK 1987 (H) (E02 E16 E18 E21 E25)

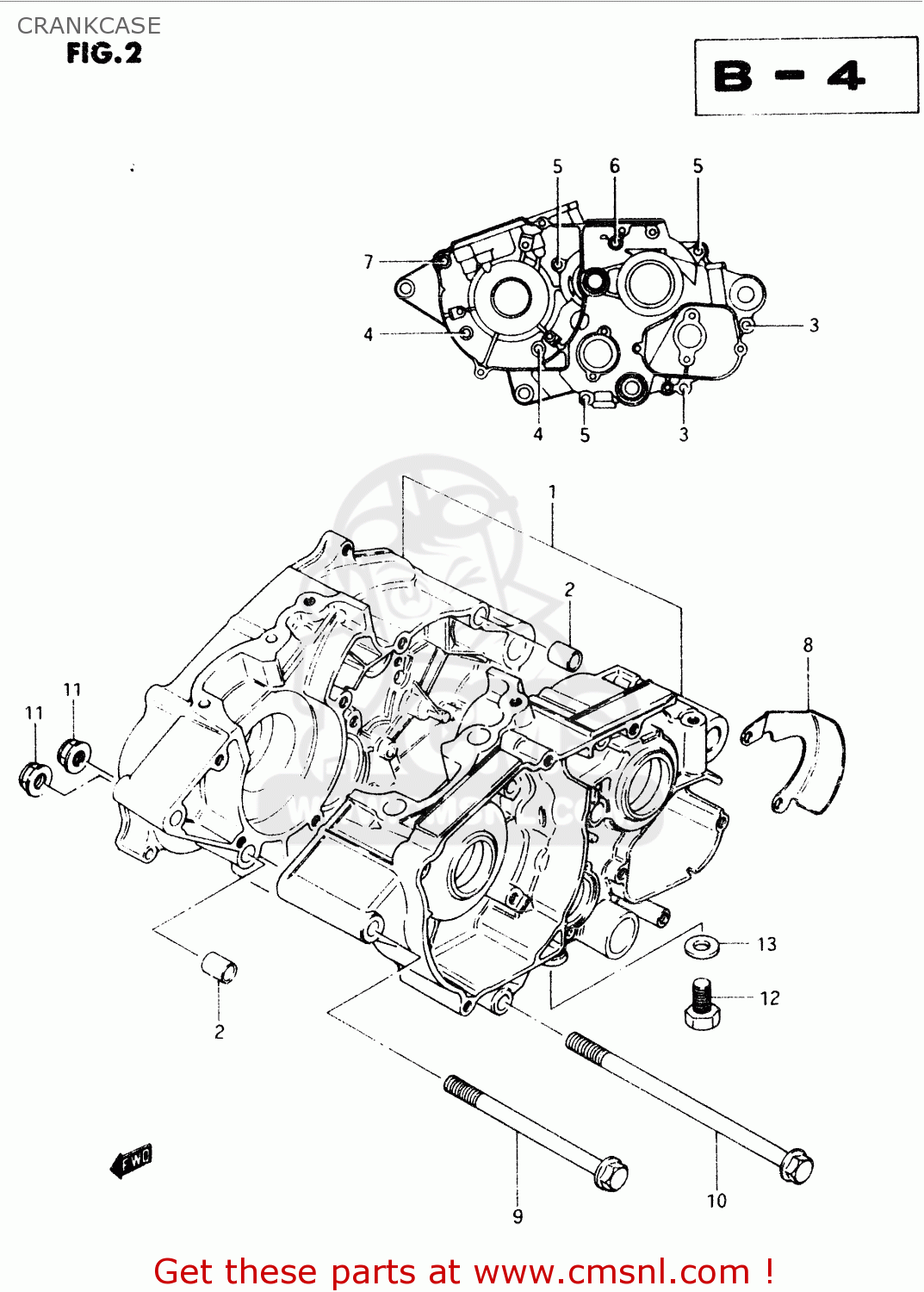

Crankcase diagram TS50XK 1987 (H) (E02 E16 E18 E21 E25)
CRANKCASE TS50XK 1987 (H) (E02 E16 E18 E21 E25)
×
prices are in EUR
ref
part #
description
quantity
1-1
1130013830
ref: 1-1
MODEL E/G/H/J/M
CRANKCASE SET
€ 371.50
1-2
1130013832
ref: 1-2
MODEL R
CRANKCASE SET
€ 371.50
1-3
1130113820
ref: 1-3
E17,E22
CRANKCASE SET
€ 0.00
2
0421111189
ref: 2
PIN
€ 2.00
3-1
0211206308
ref: 3-1
MODEL E/G/H/J/M
SCREW 6X30
€ 2.50
3-2
0211206303
ref: 3-2
MODEL R
SCREW 6X30
€ 2.50
4-1
0211206357
ref: 4-1
MODEL E/G/H/J/M
SCREW
€ 2.50
4-2
0211206353
ref: 4-2
MODEL R
SCREW
€ 2.50
5-1
0211206457
ref: 5-1
MODEL E/G/H/J/M
SCREW
€ 2.00
5-2
0211206453
ref: 5-2
MODEL R
SCREW
€ 1.50
6-1
0211206658
ref: 6-1
MODEL E/G/H/J/M
SCREW 6X65
€ 2.00
6-2
0211206653
ref: 6-2
MODEL R
SCREW
€ 2.00
7-1
0211206758
ref: 7-1
MODEL E/G/H/J/M
CROSS SCREW (6 X 75)
€ 3.00
7-2
0211206753
ref: 7-2
MODEL R
SCREW
€ 1.50
8
1132913701
ref: 8
PLATE,OIL HOSE
€ 4.00
9
0910308109
ref: 9
BOLT(8X120)
€ 3.50
10
0910308110
ref: 10
BOLT(8X160)
€ 10.00
11
0831931085
ref: 11
NUT
€ 2.50
12-1
0110710208
ref: 12-1
MODEL E/G/H/J/M
BOLT 10X20
€ 3.50
12-2
0150010203
ref: 12-2
MODEL R
BOLT
€ 3.50
13
0916810002
ref: 13
GASKET(10X14X3.6) (NAS)
€ 2.00
